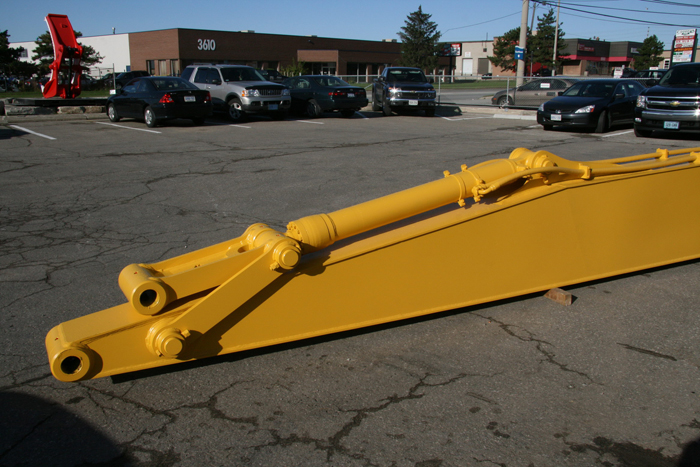

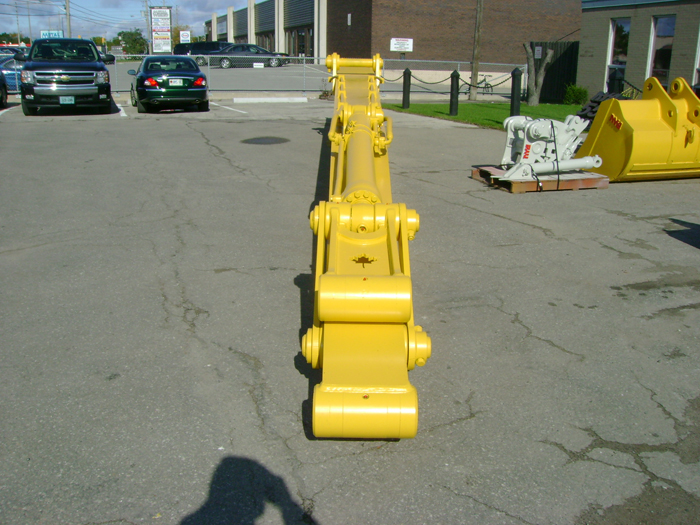

Standard Extensions

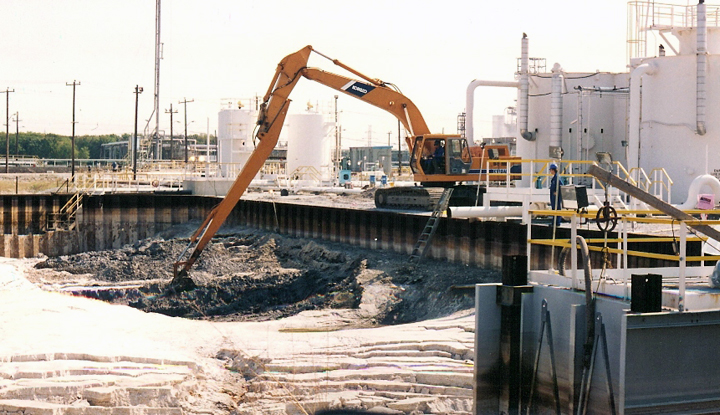

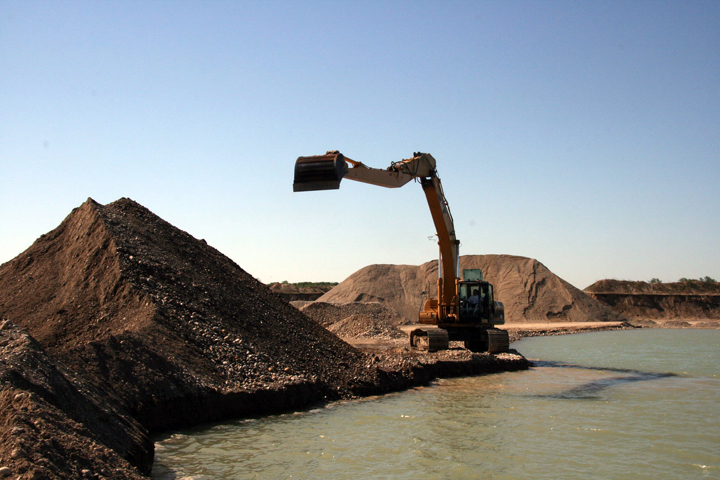

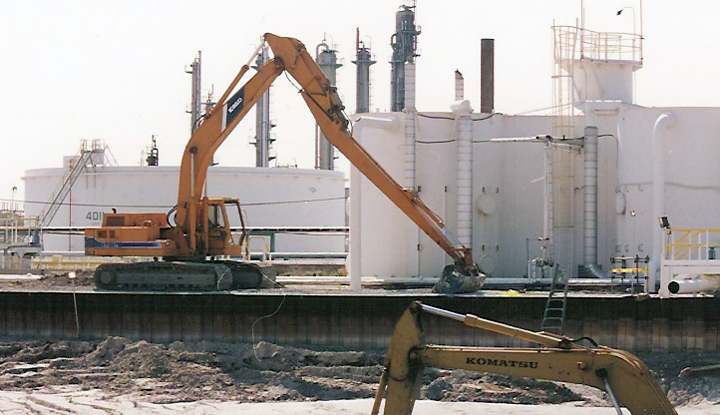

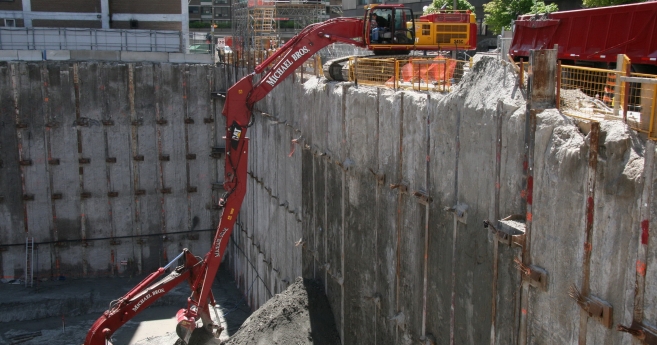

Extra reach for deep excavating, demolition, and dredging. Standard stick extensions mount on your existing bucket pin, no cutting or welding required. QT100 structural steel plate fabrication for maximum strength and minimum weight. For excavators ranging from 15 to 100 tons.

Features

  • Specifically designed for medium to long applications where extra digging depth and reach are required.
  • 12’ through 28’ lengths available depending on size of machine.
  • All excavator makes and models
  • Easy to install and remove.

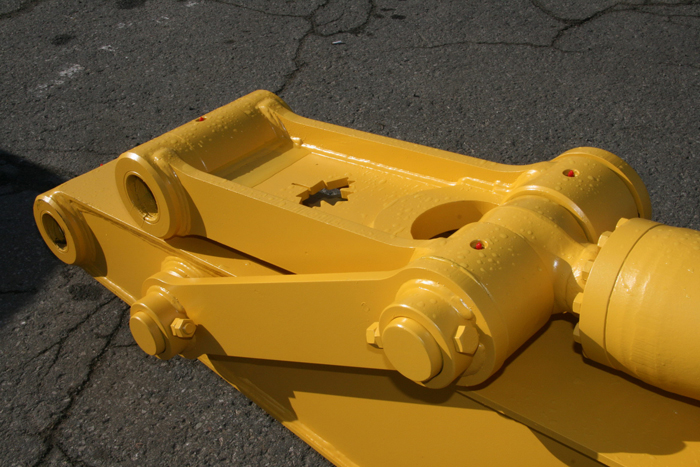

  • New Bucket cylinder and linkages included.

Specifications

CarrierModelLength m [ft]Weight kg [lb]
16 - 24 t20ST3.7 [12]669 [1,475]
22 - 28 t25ST4.9 [16]850 [1,875]
26 - 38 t30ST5.5 [18]1,035 [2,282]

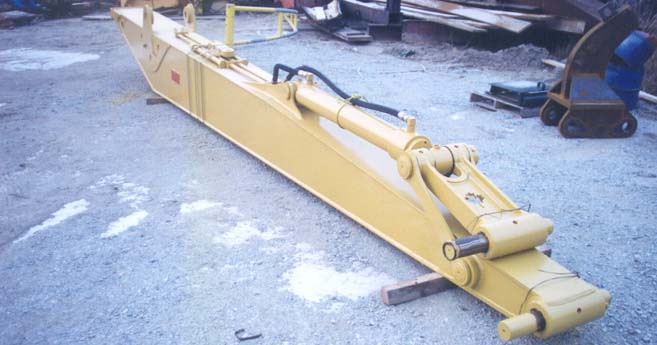

35 - 50 t40ST6.1 [20]1,582 [3,487]
59 - 90 t70ST7.6 [25]2,790 [6,246]

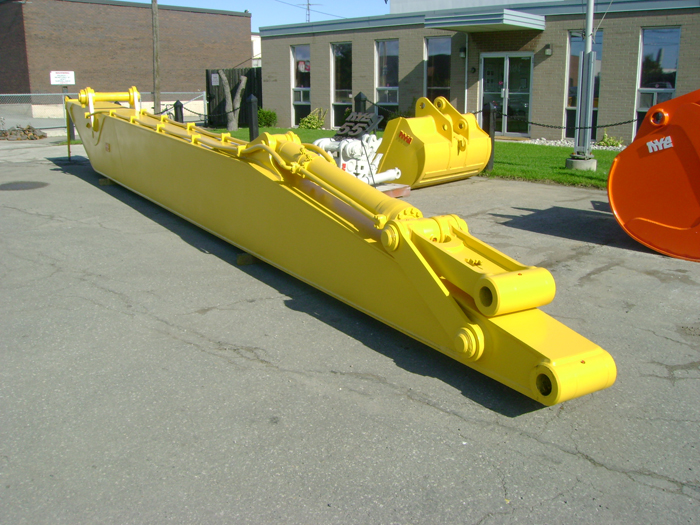

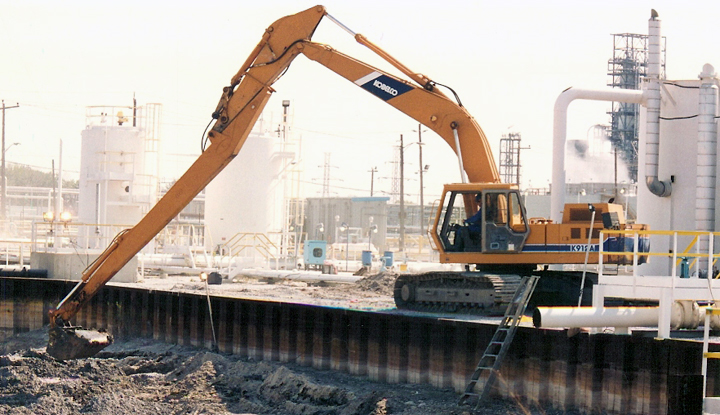

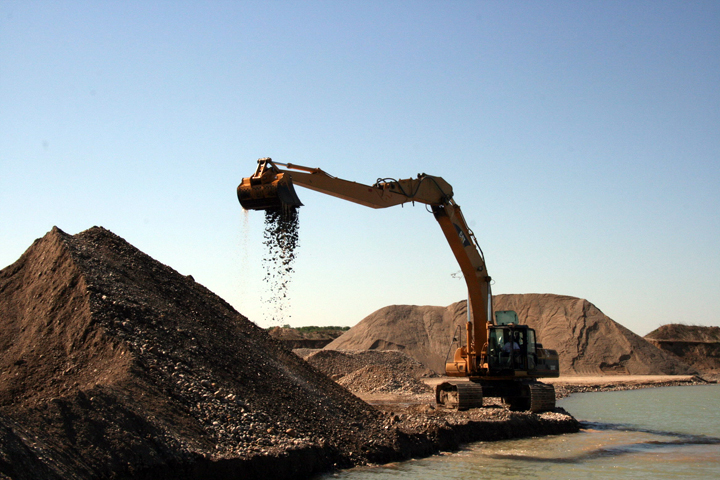

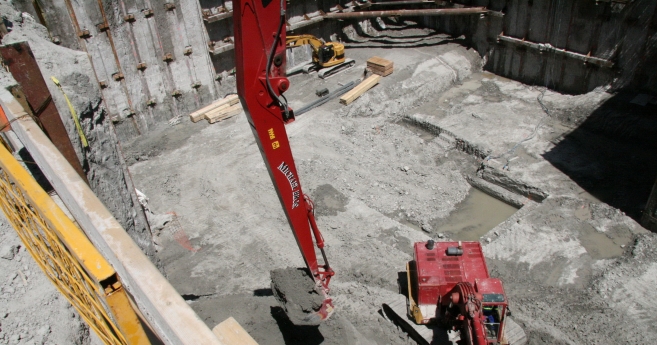

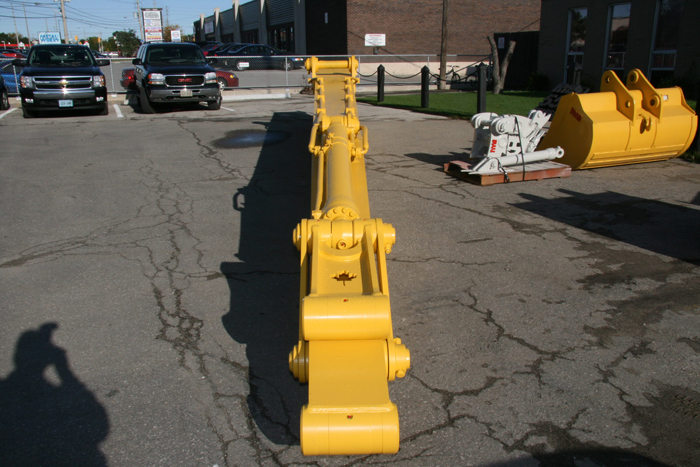

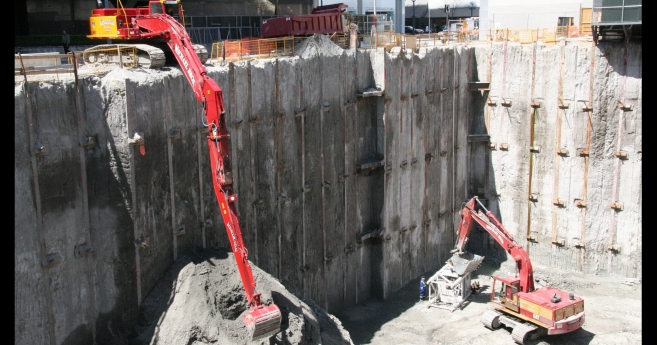

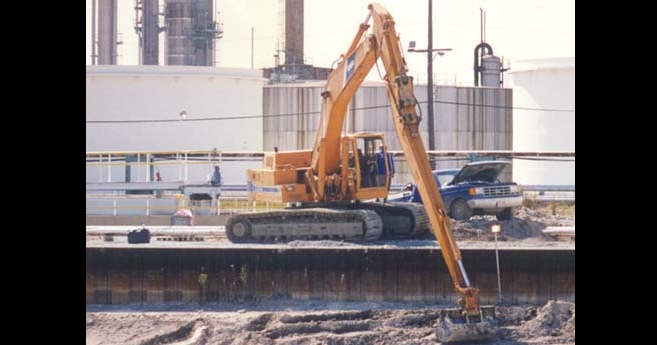

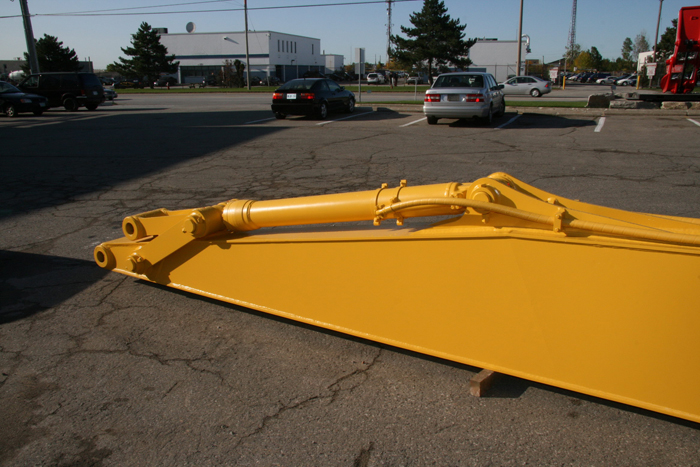

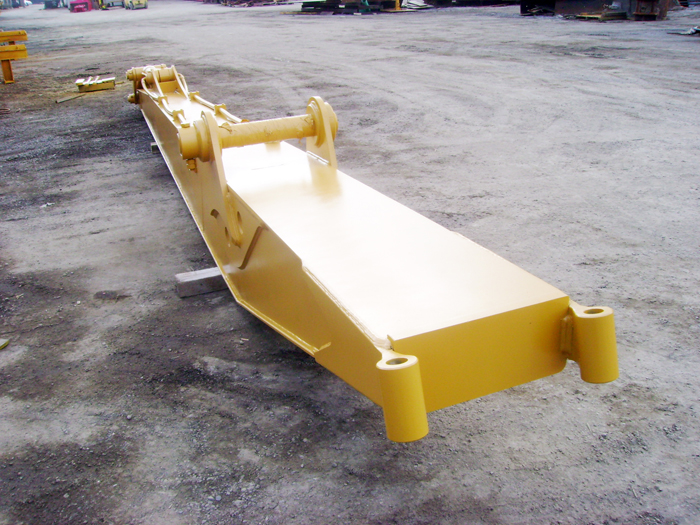

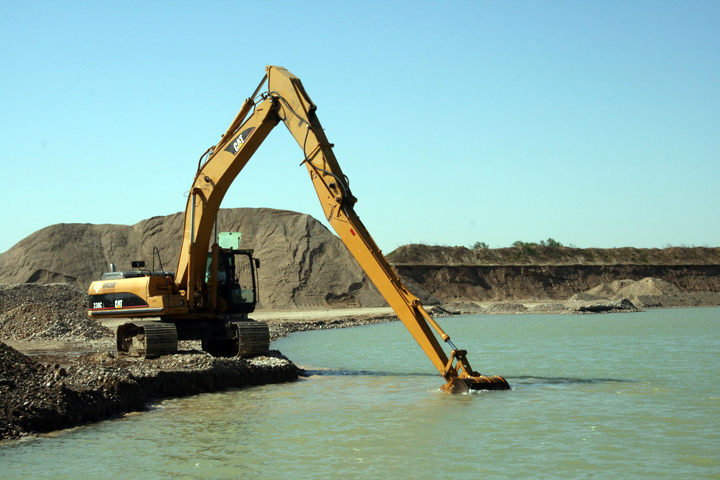

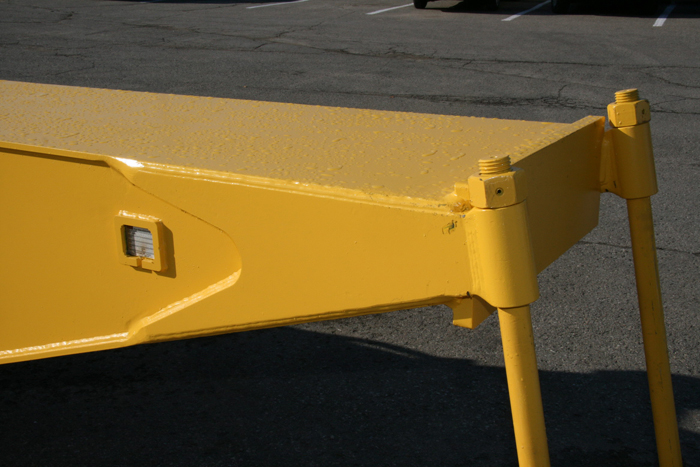

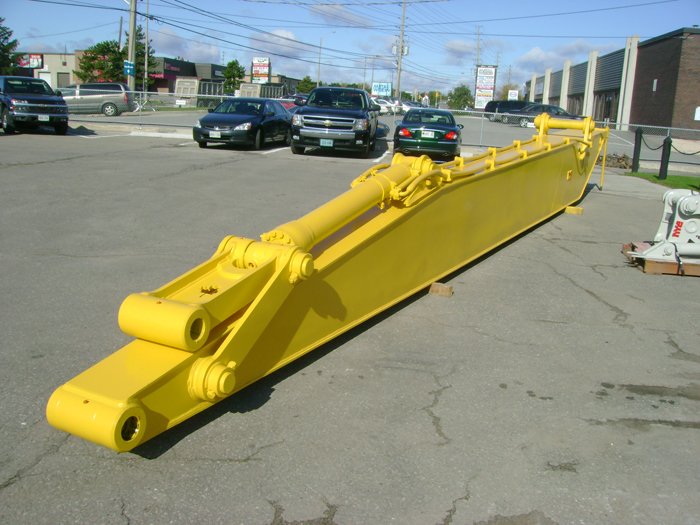

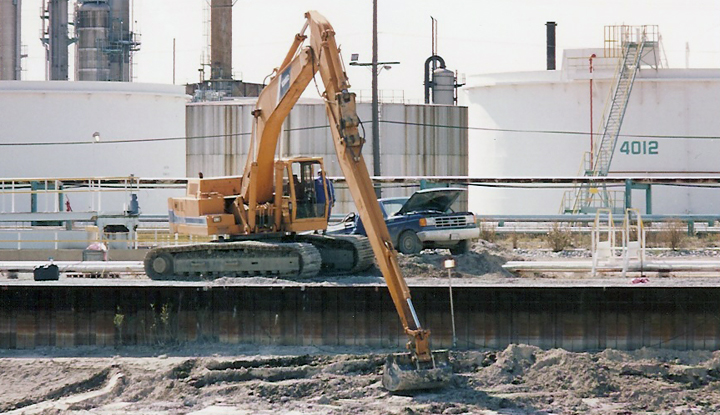

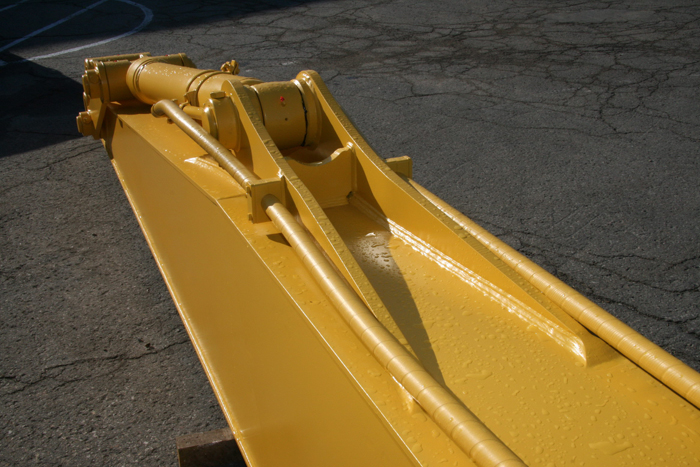

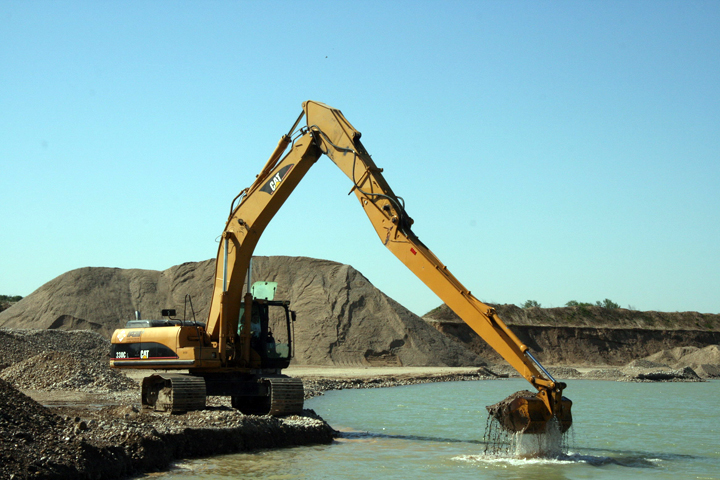

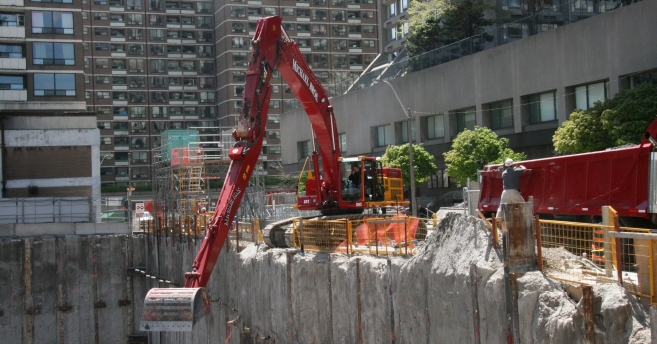

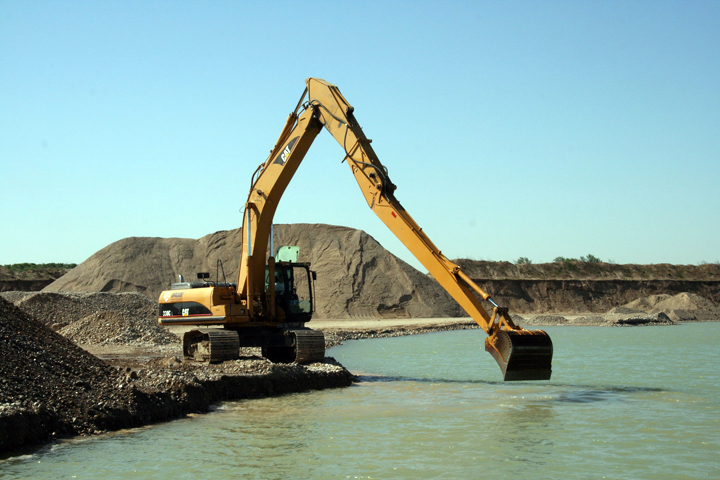

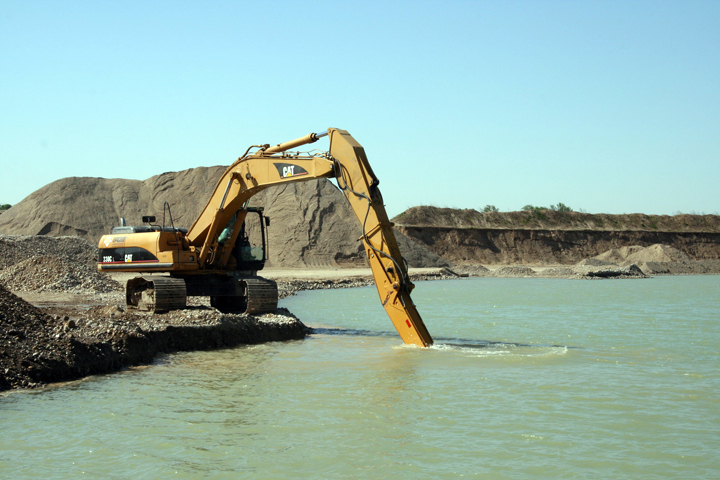

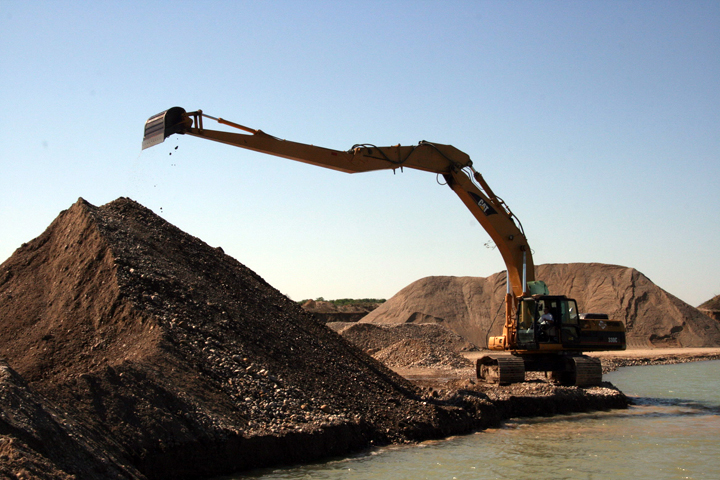

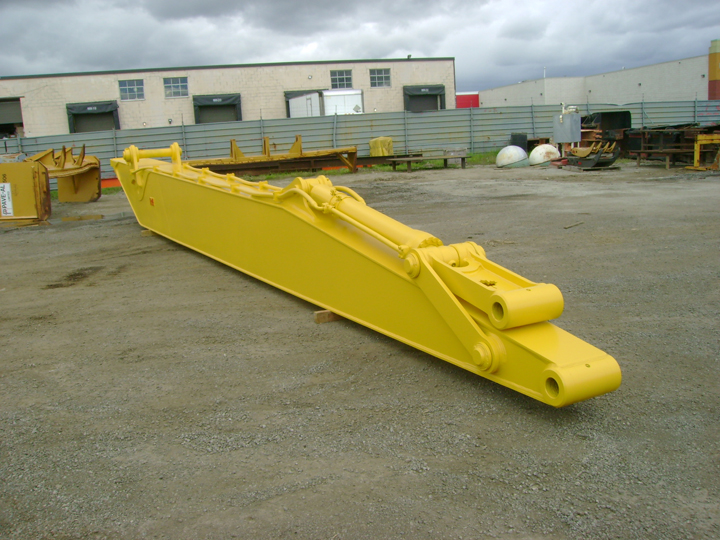

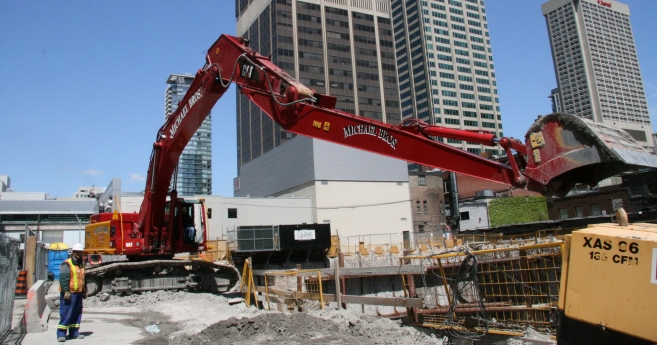

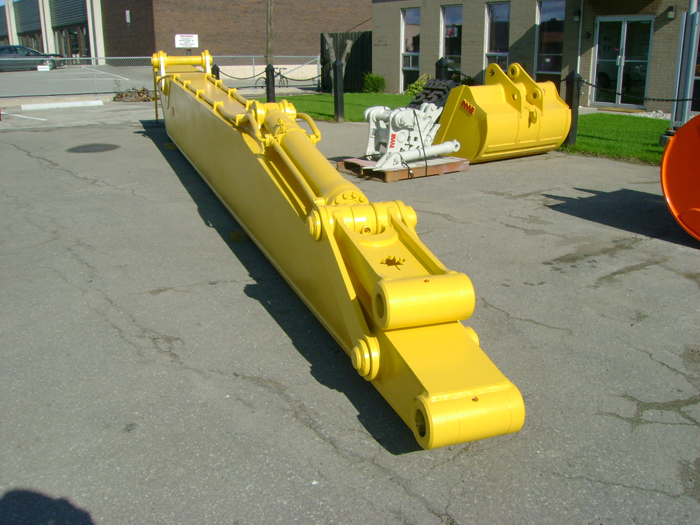

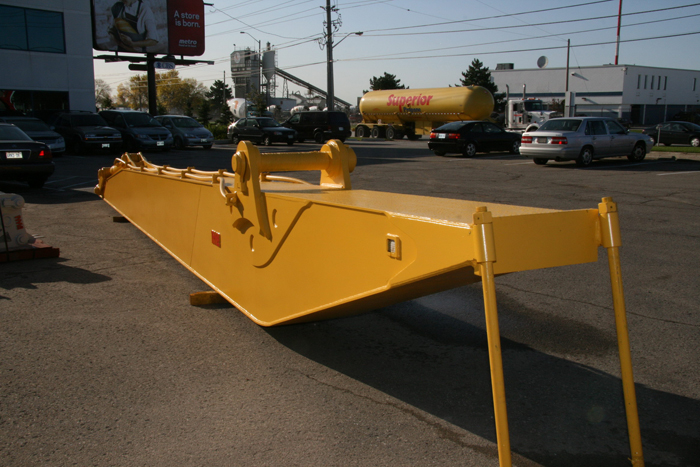

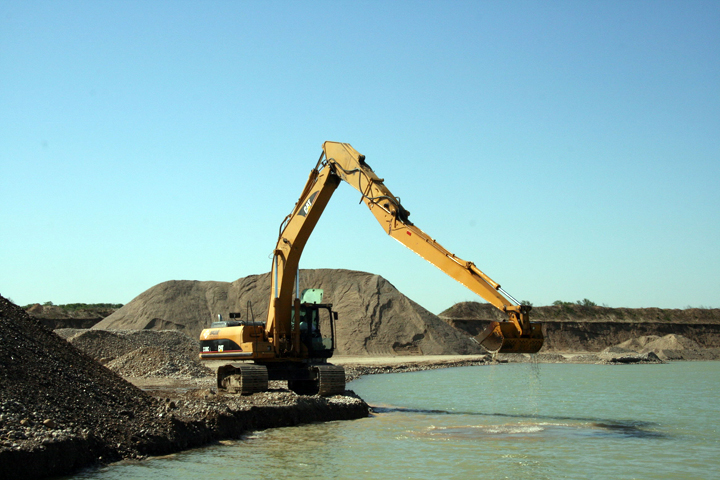

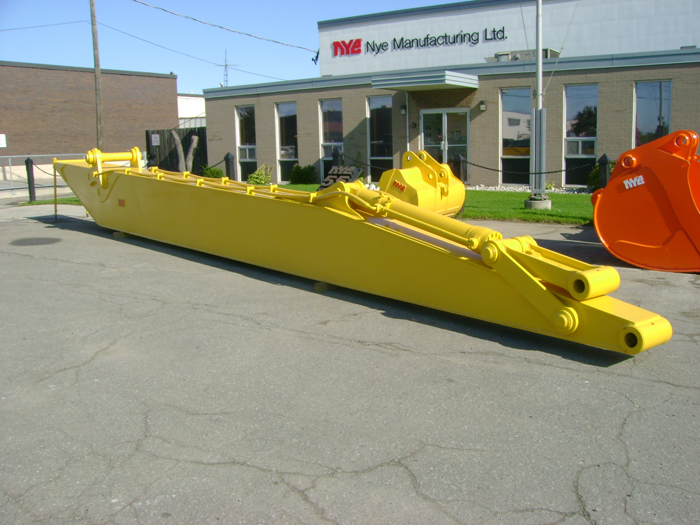

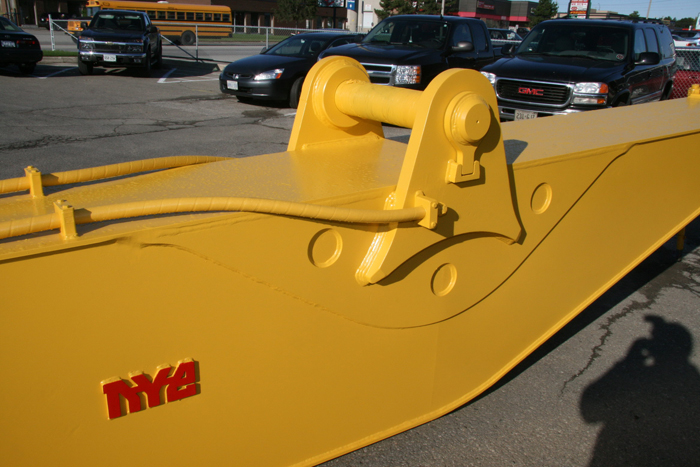

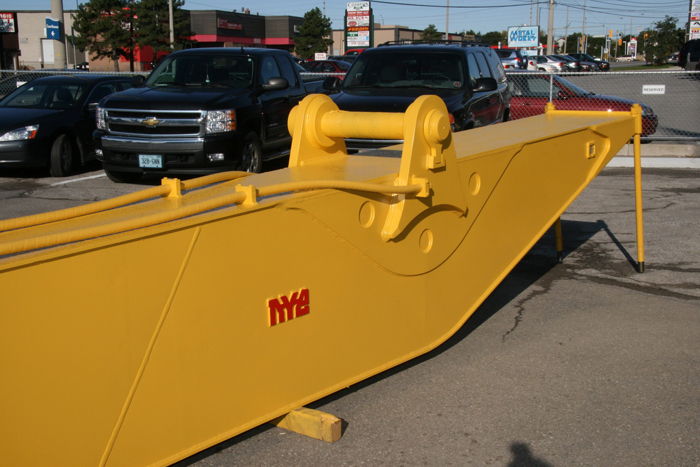

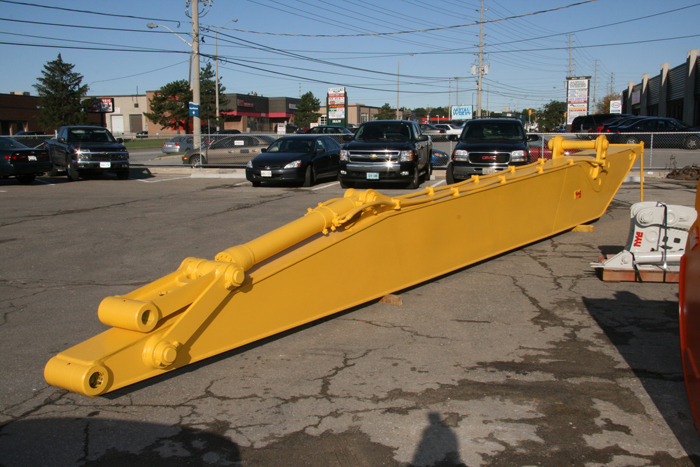

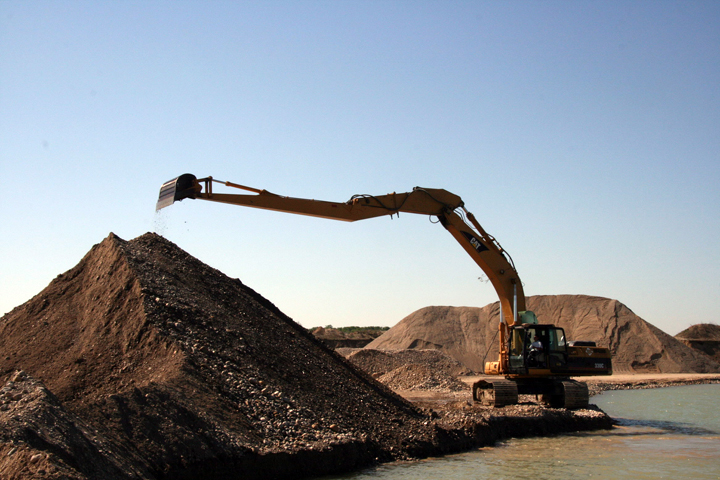

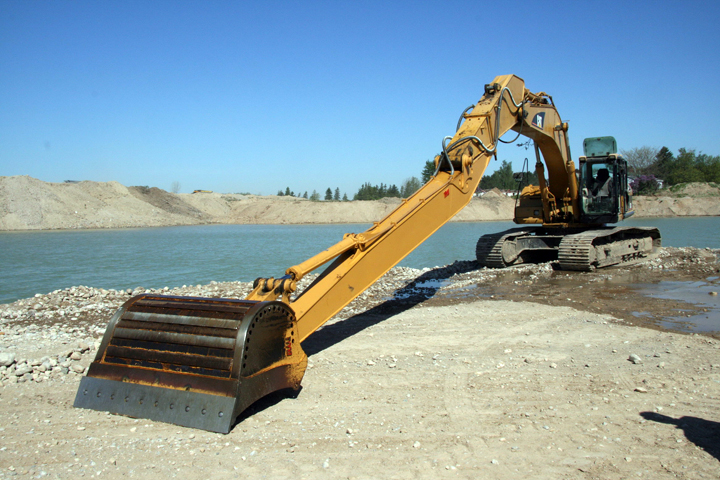

Gallery
