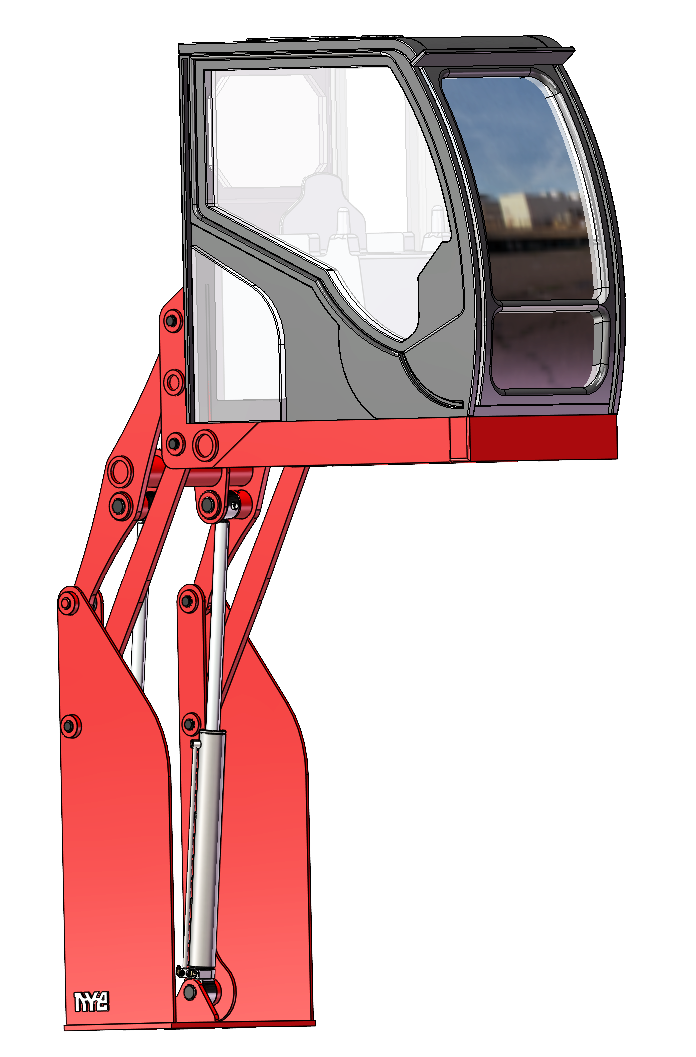

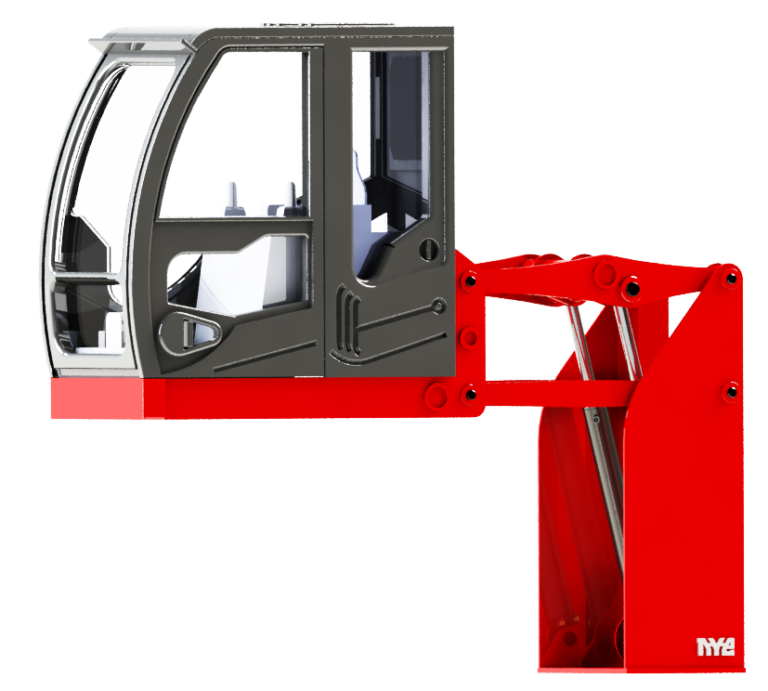

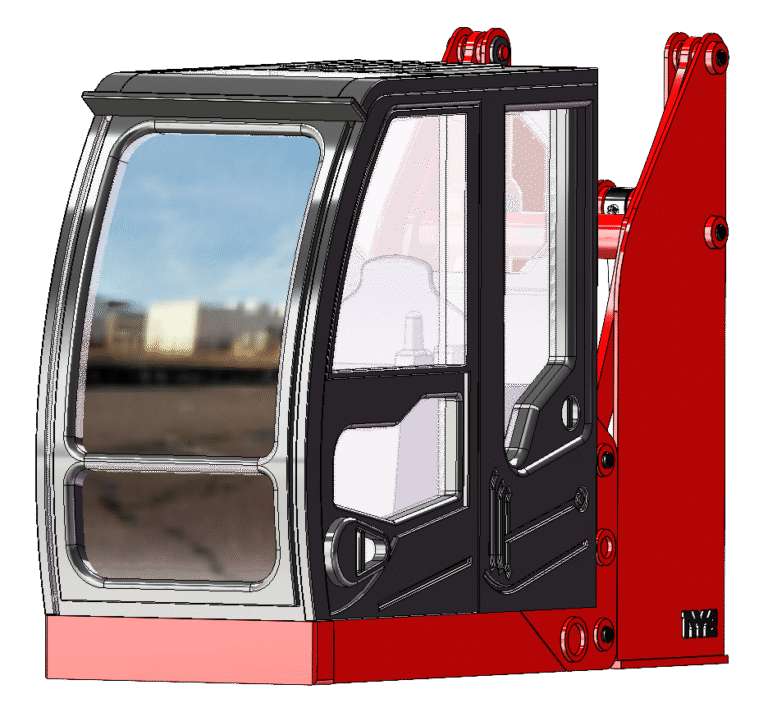

CTL Cab Riser
The Nye CTL hydraulic cab riser offers superior safety and comfort with continuously variable, jostle-free operation, supported by dual high-pressure cylinders. The over-size cylinders feature built-in load-holding valves that prevent accidental lowering, even in the event of catastrophic hydraulic system failure.
The ultra-rigid frame, lift-arms and torque-tubes ensure safe, synchronized cab elevation without wobble and vibration. Over-sized pins and aluminum-bronze bearings ensure long trouble free life, with minimum maintenance.
Each Nye CTL Cab Riser is custom designed to fit your excavator, ensuring exceptional fit, finish, performance, and maximum safety and stability.
Emergency egress, and door interlock systems are standard. Optional up/down tilt function, cab guards, ladders and cat-walks are available. Manual tilt-over “transport type” static risers and forward extending systems are also available.
Download Spec Sheet
Features

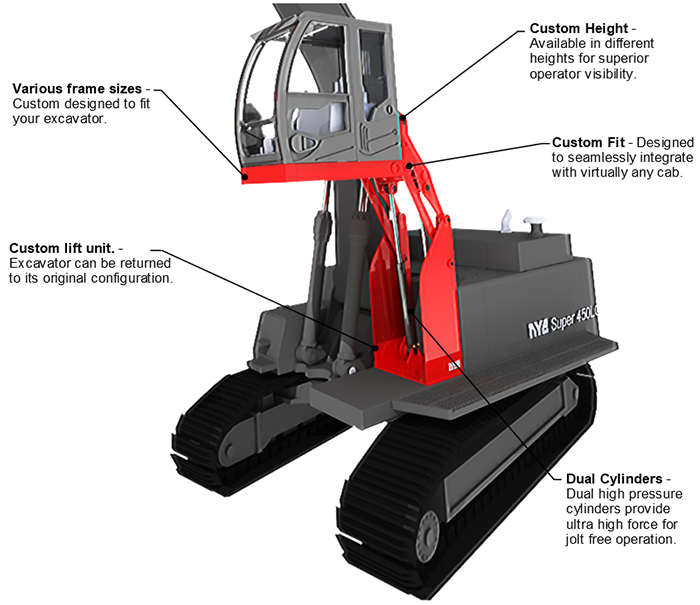

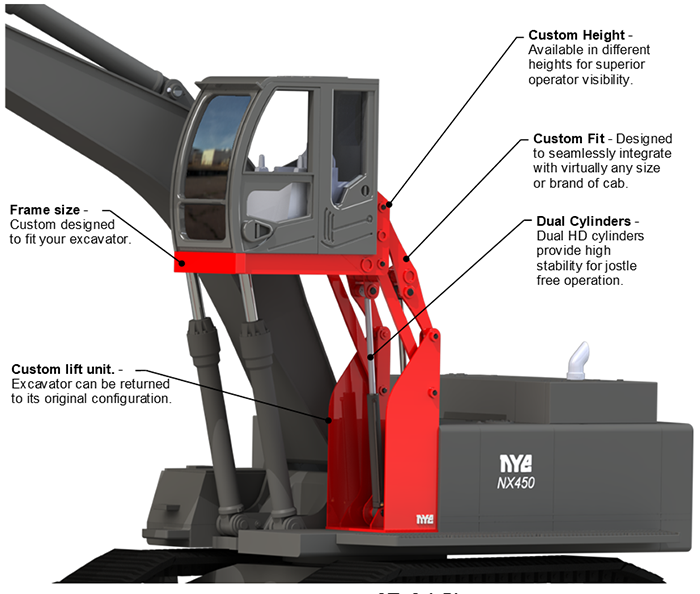

- Customizable to fit any size or brand excavator.
- Dual cylinders for smooth jostle free operation.
- Integral load holding valves, built-in for maximum safety.
- Optional +30 / -10 deg. tilt function available.
- Heavy-duty construction with over size pins and cross tubes to prevent racking and twisting.
