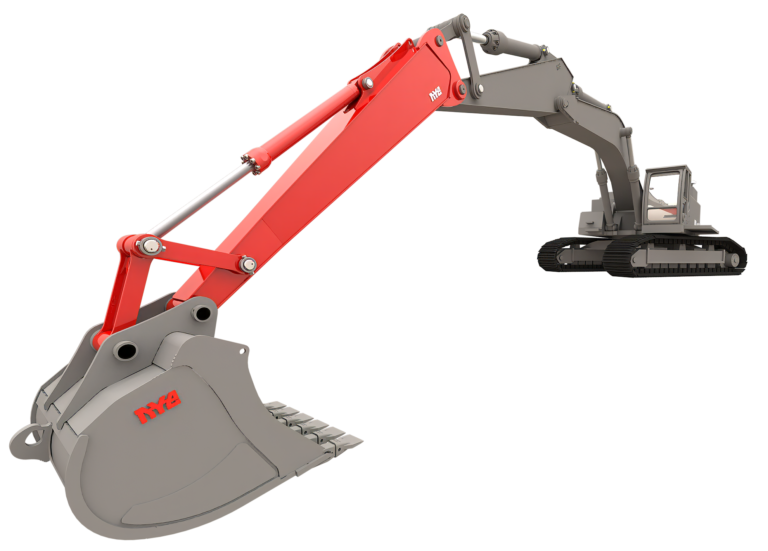

Jibs

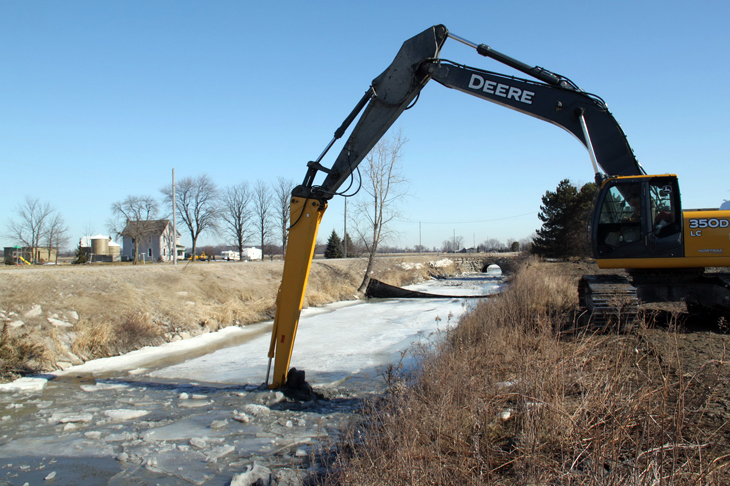

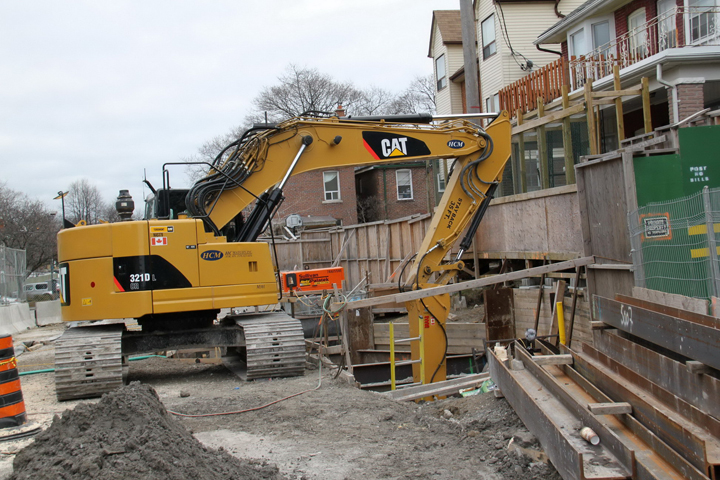

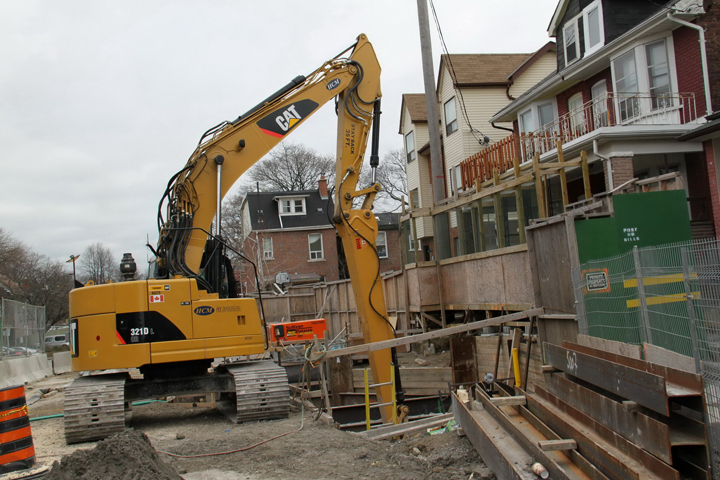

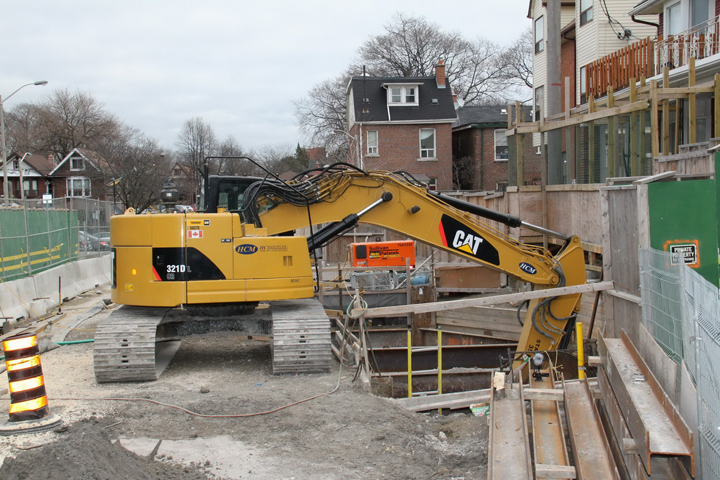

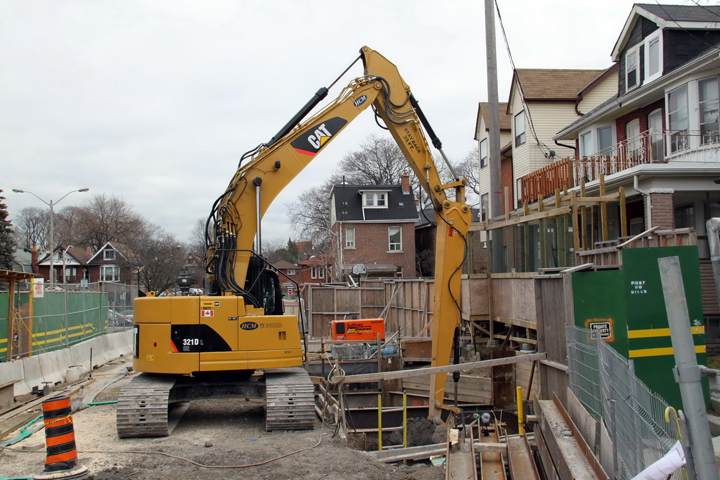

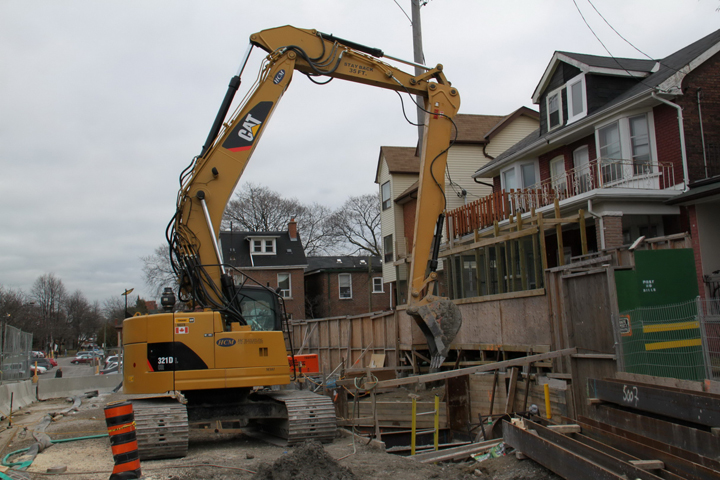

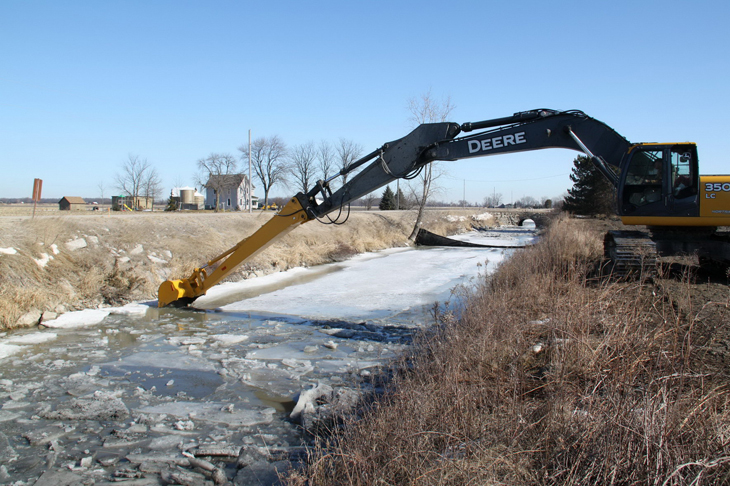

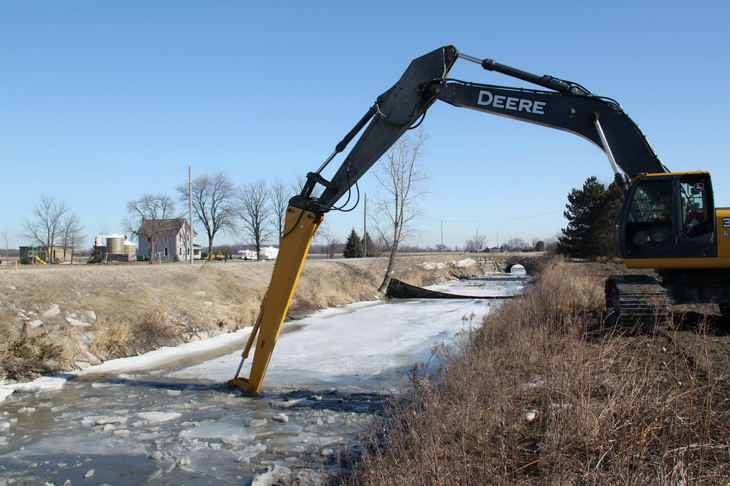

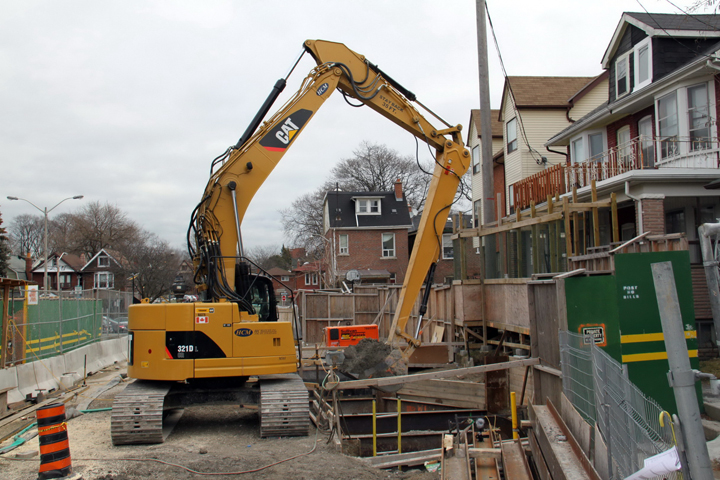

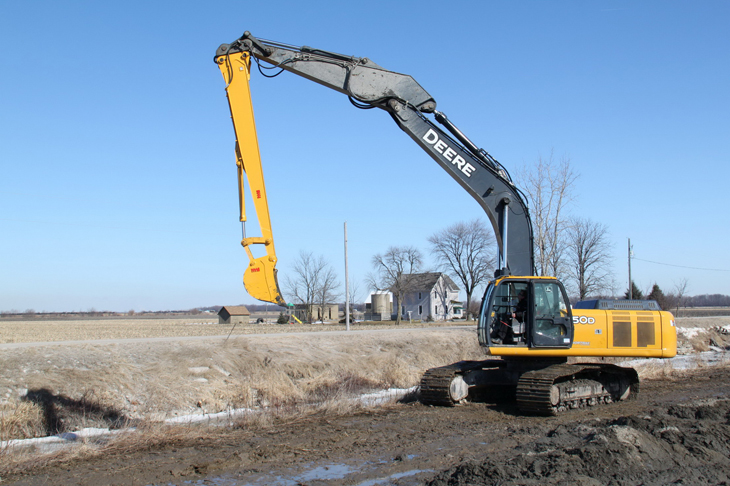

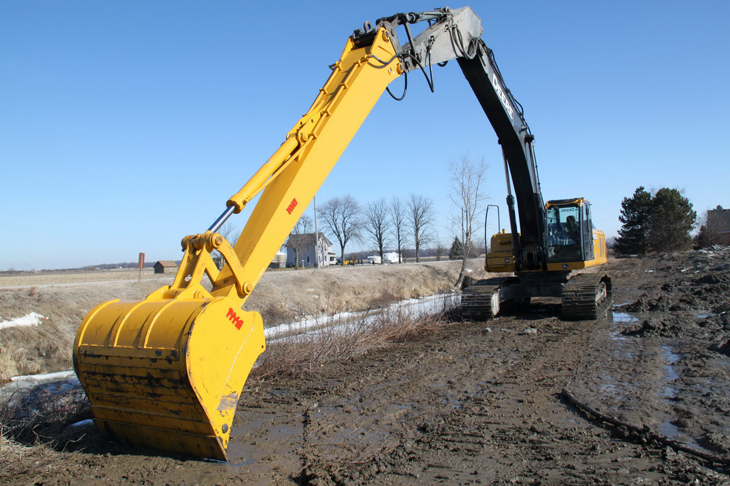

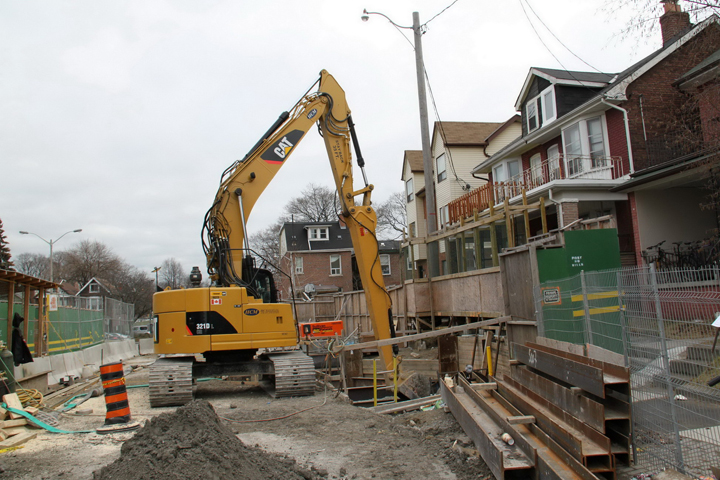

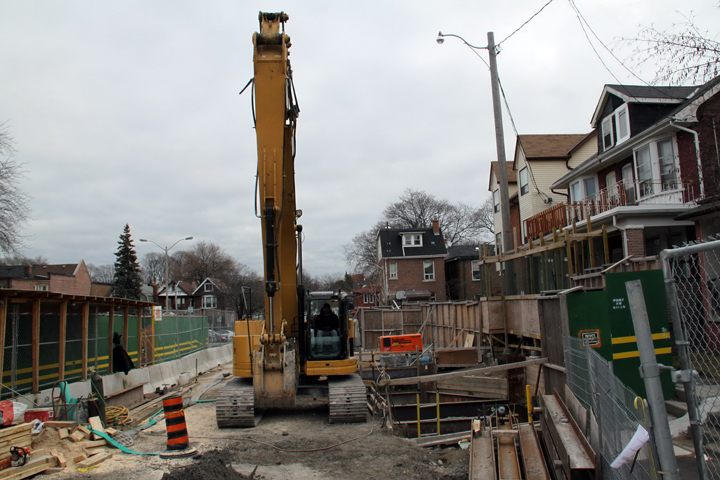

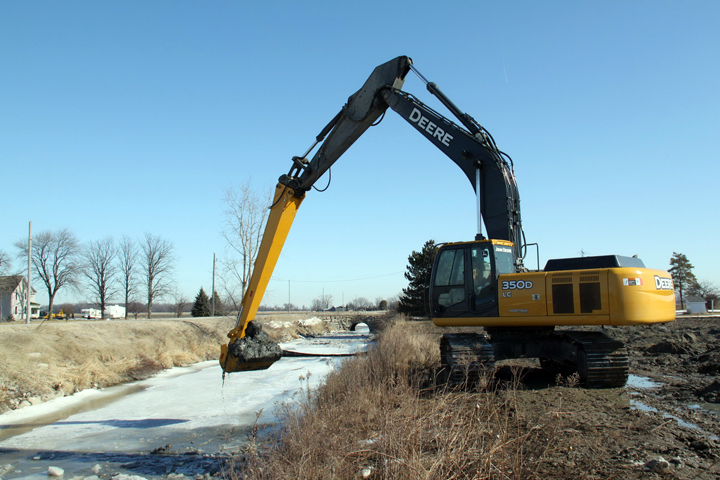

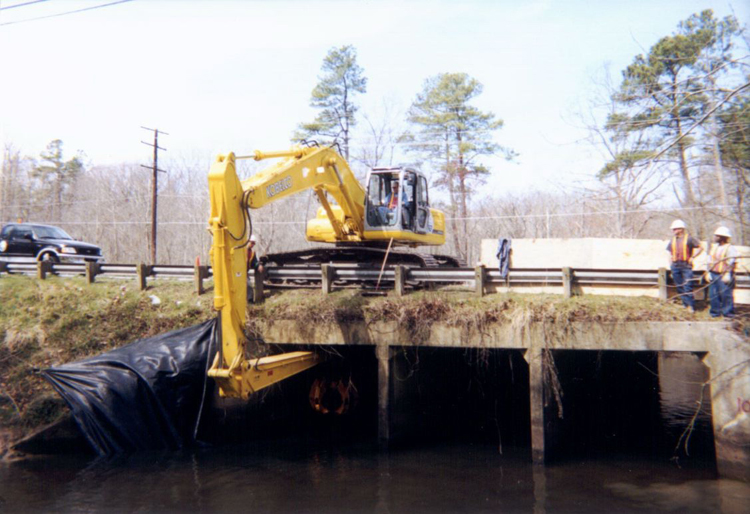

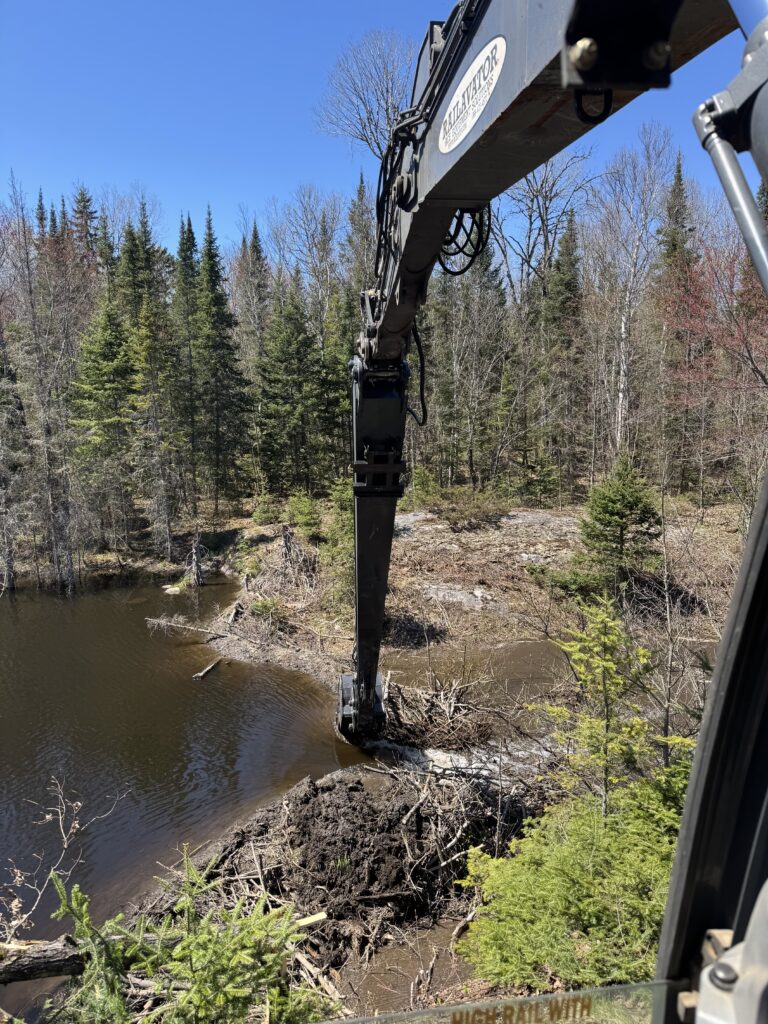

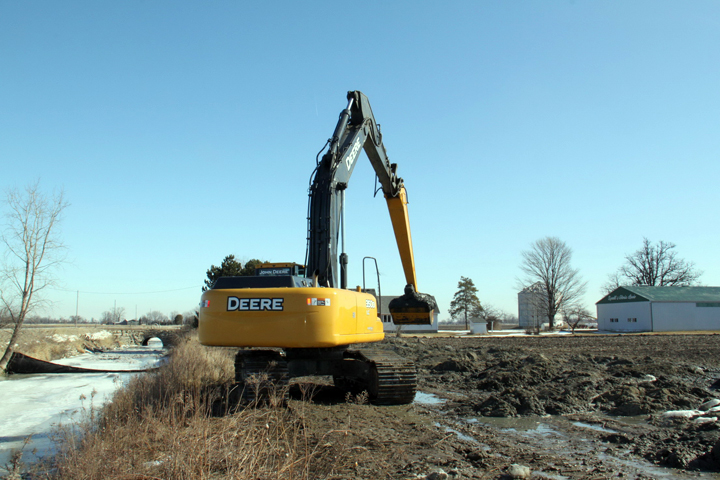

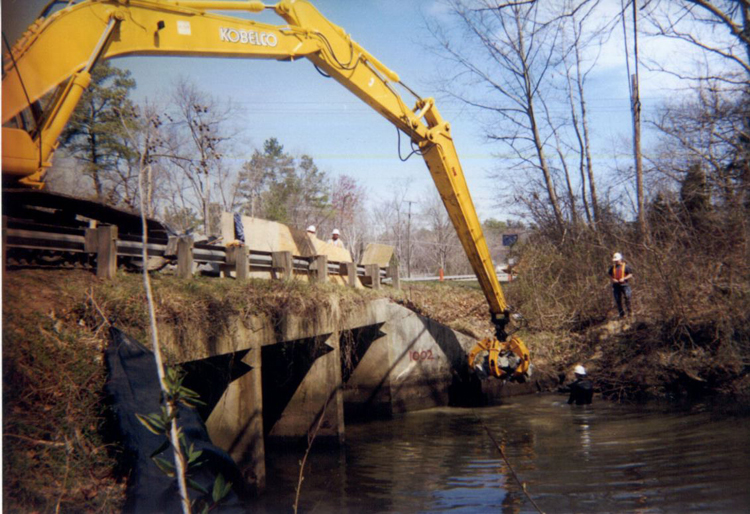

Nye heavy-duty excavator jibs pin-on in place of the bucket and increase reach for a wide variety of dredging, ditching, pond excavation, demolition, and high-reach applications.
Nye Jibs are available in 3 mounting configurations:
Type 1: Direct Pin – with increased pin center distance (Not Pin-Grabber compatible). Type 1 is the preferred mounting configuration because the increased mounting pin center distance increases the available tangential force at the Jib tip, and/or reduces the linkage forces for any given load.
Type 2: Pin-On – with standard pin center distance (Pin-Grabber compatible). Type 2 can be direct pinned, and can also be used with Pin-Grabber type Quick Attach Units. The owner must determine strength and suitability of the Pin-Grabber they intend to use.
Type 3: Dedicated Quick Coupler – with brand specific QC receiver group. Type 3 can only be mounted on a machine equipped with the corresponding Dedicated Quick Coupler, including Symmetric Type, Wedge-Style and other 3rd party systems. The owner must determine the strength and suitability of the Dedicated Quick Coupler they intend to use.

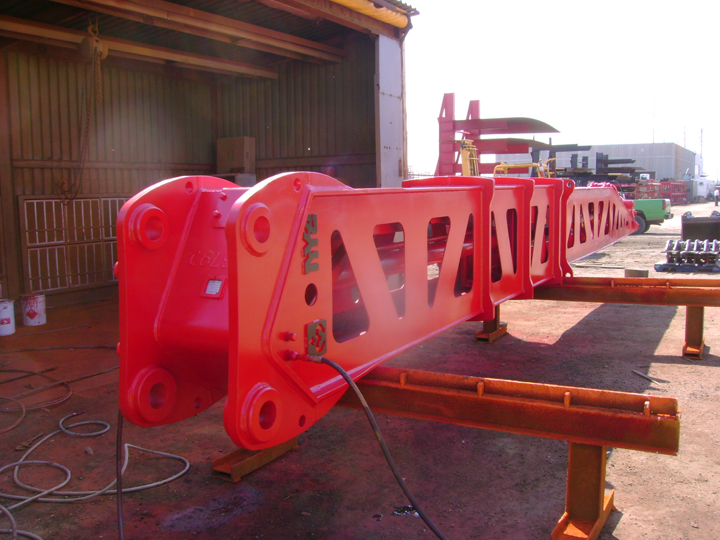

Standard bucket linkages and cylinders are available. All Nye Jibs are built with QT100 structural steel for maximum strength and minimum weight.
Call for a quote today, let us put our experience to work for you.
Download Spec Sheet

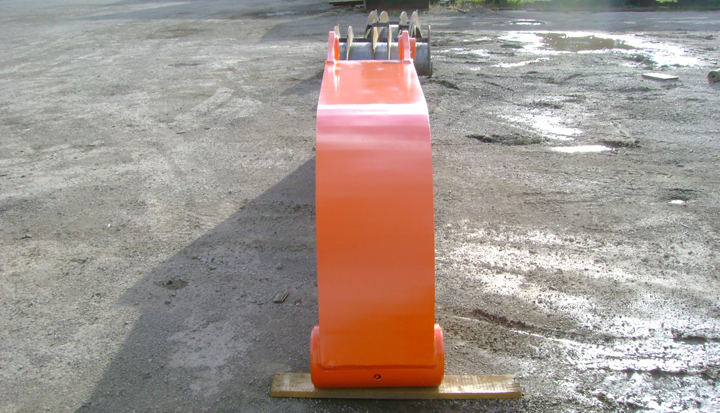

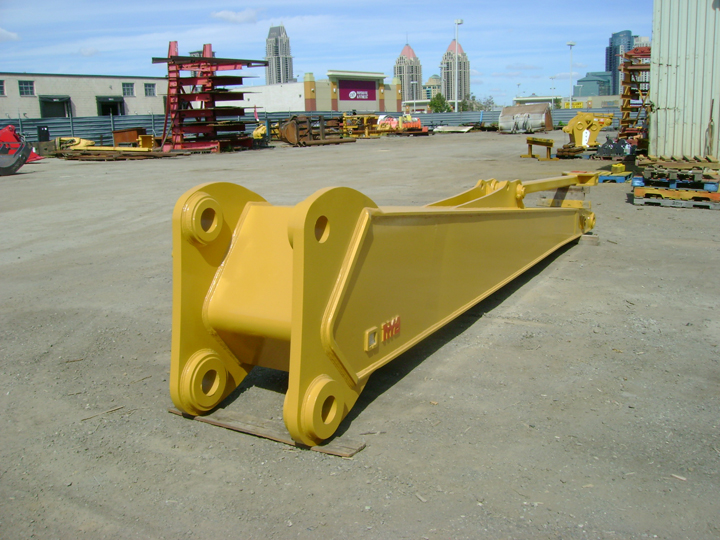

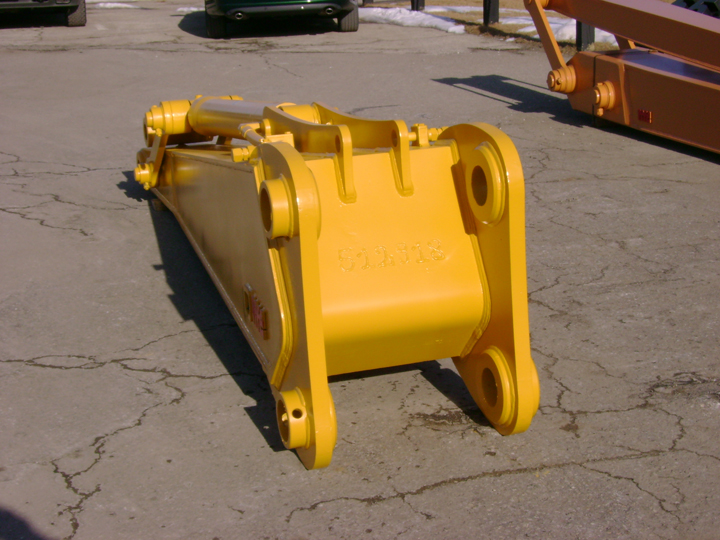

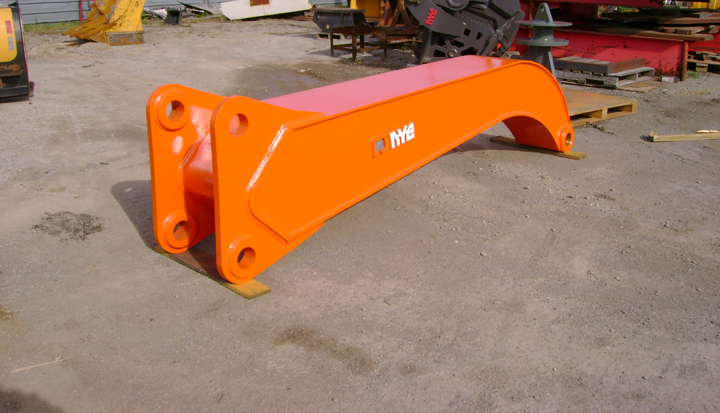

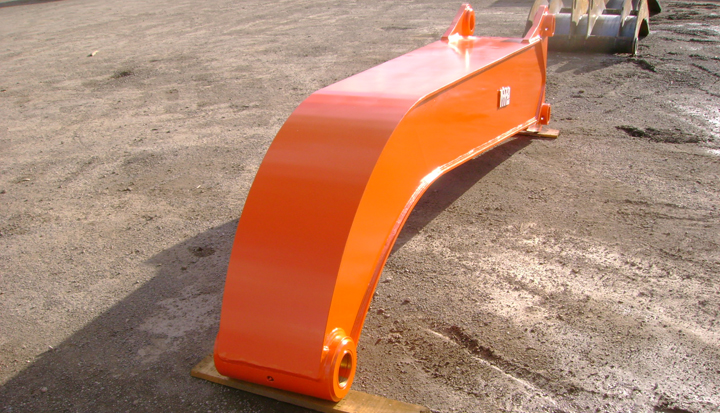

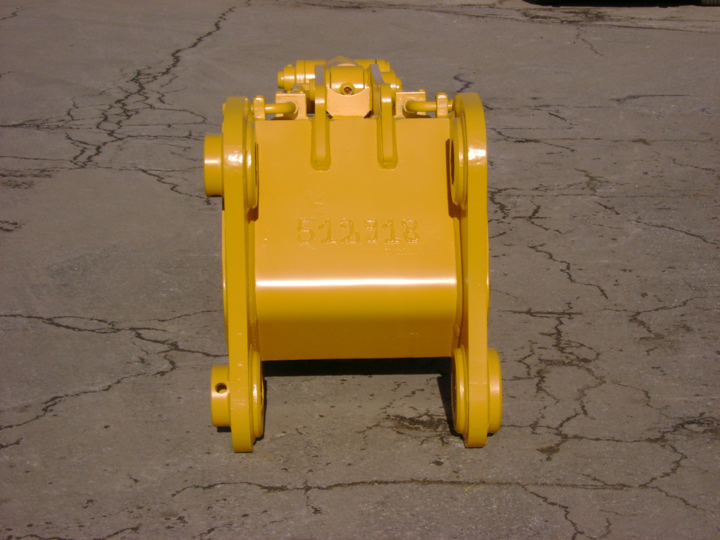

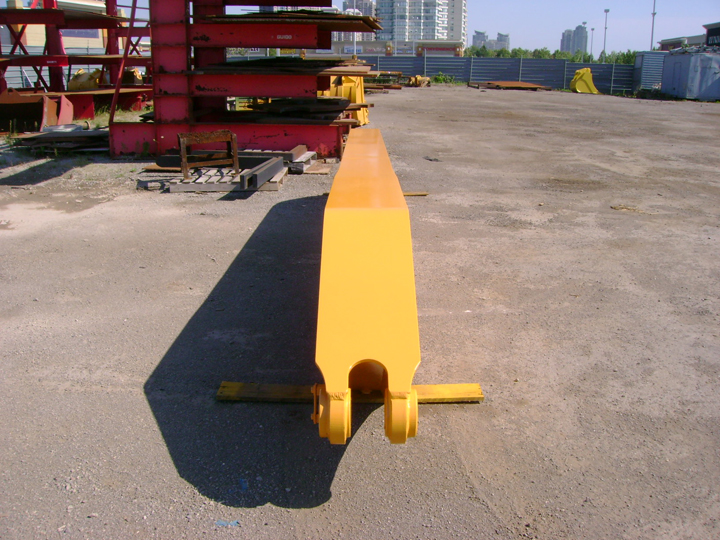

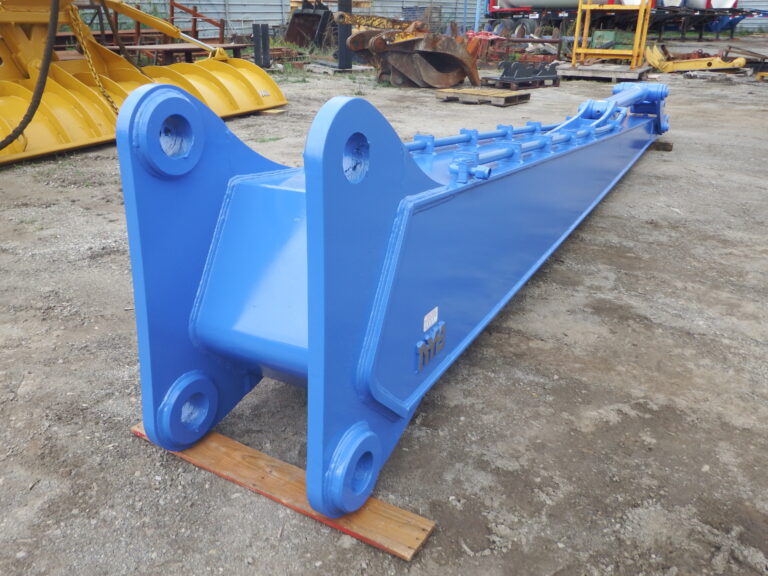

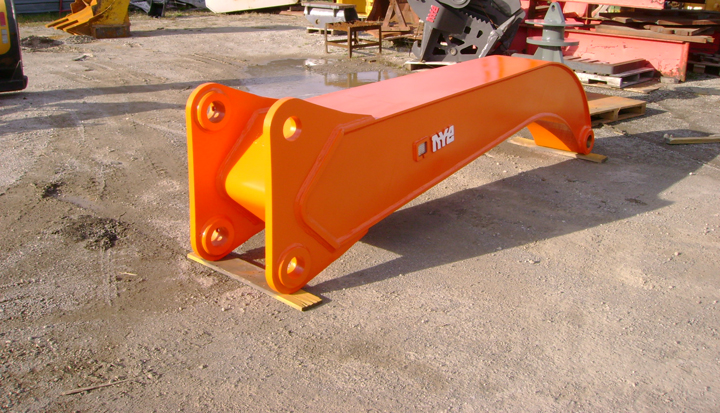

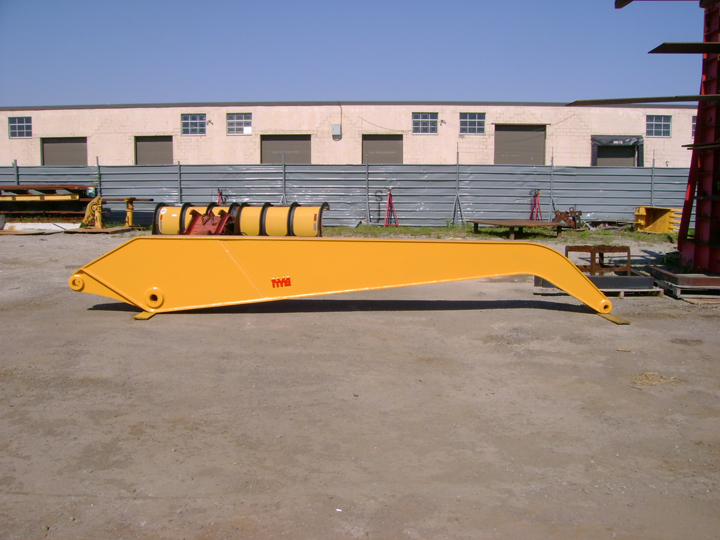

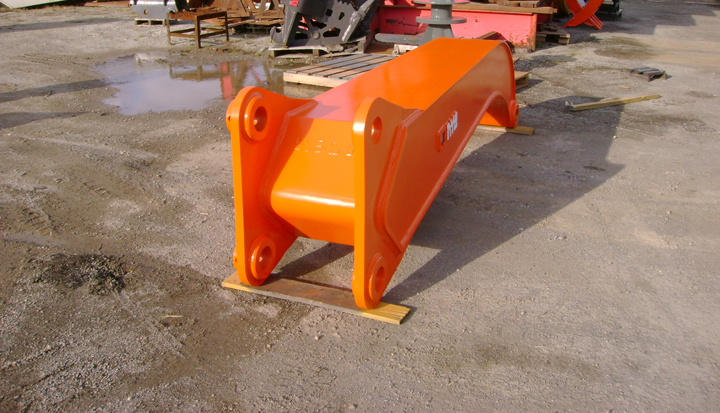

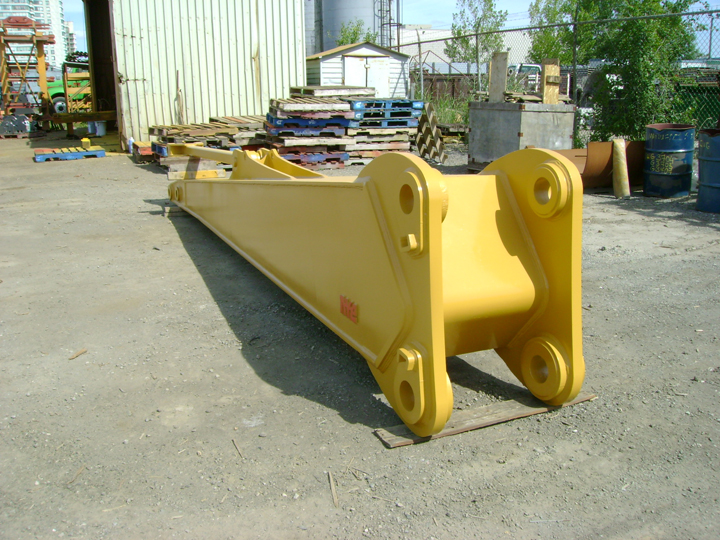

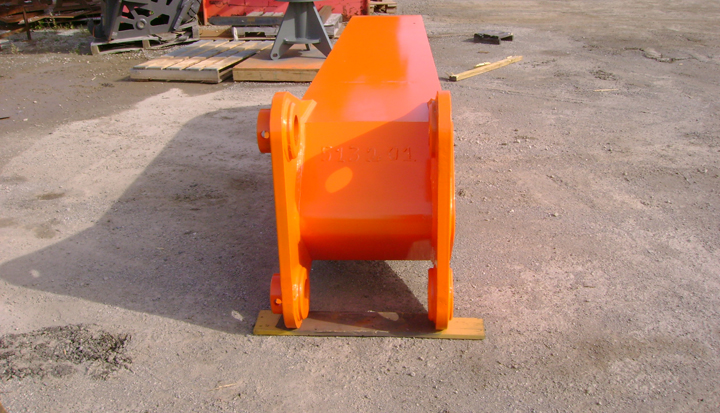

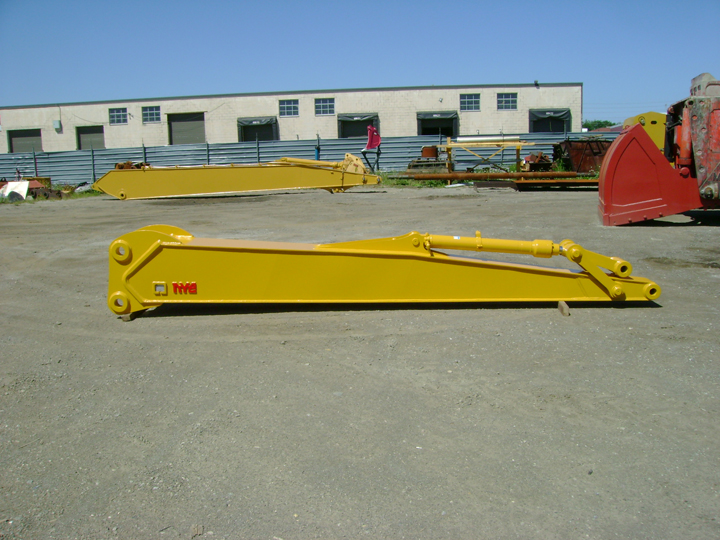

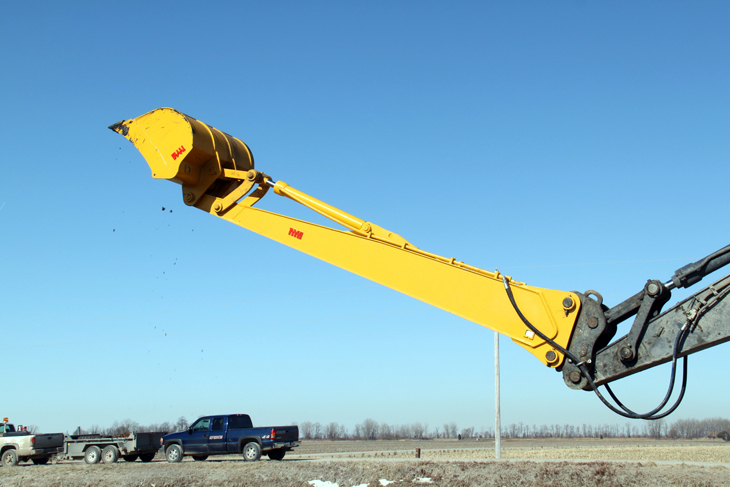

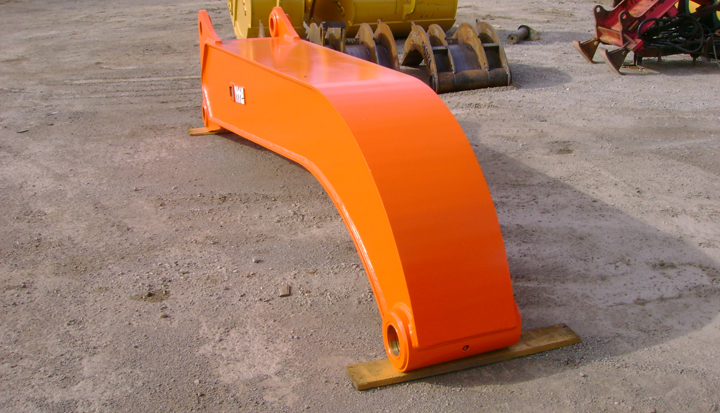

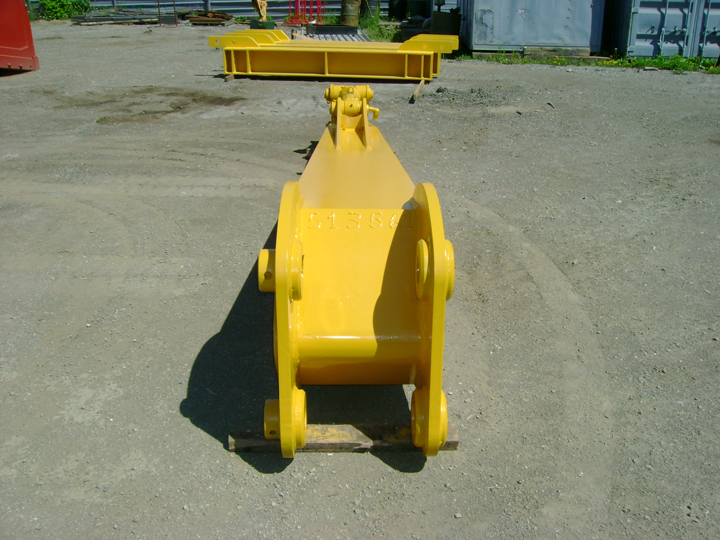

Pin-On Jib

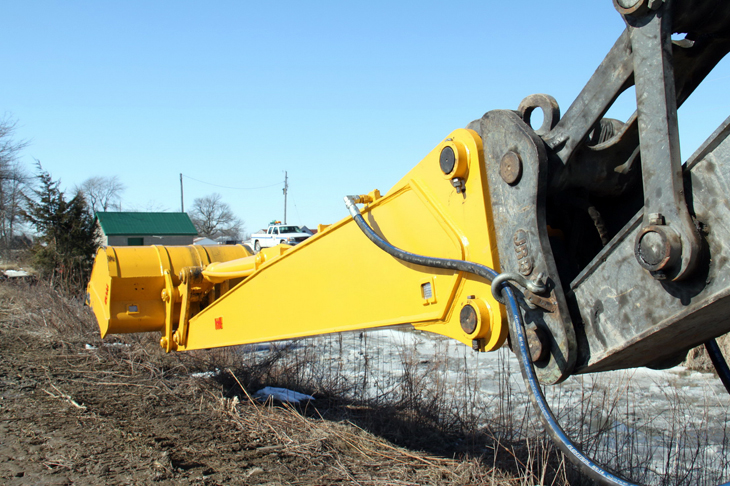

Pins-on in place of bucket. Excellent reach and versatility. Works with or without a pin-grabber coupler.

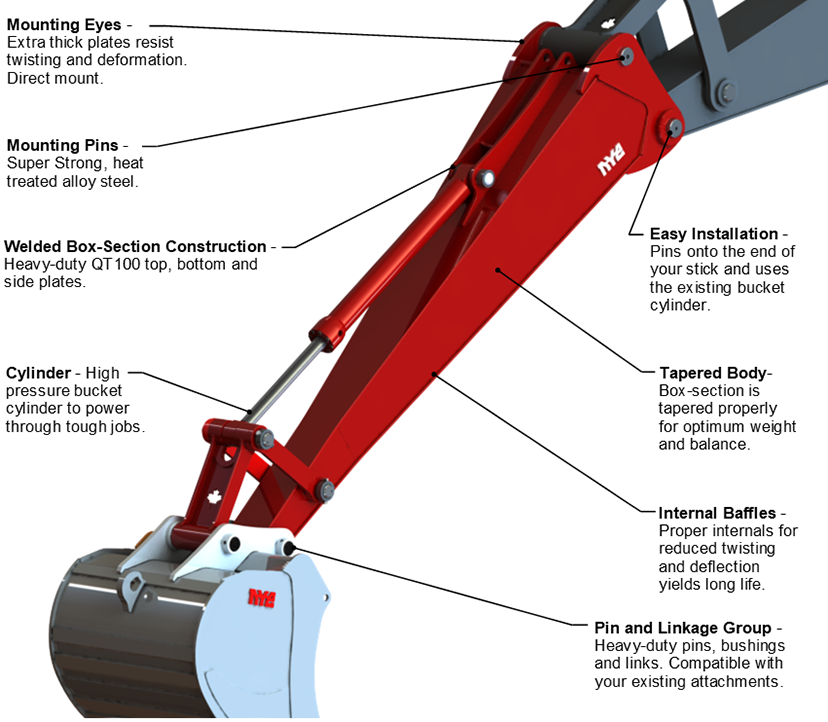

Features
- Quickly and easily add length to your existing machine.
- Pins on in place of standard attachment.

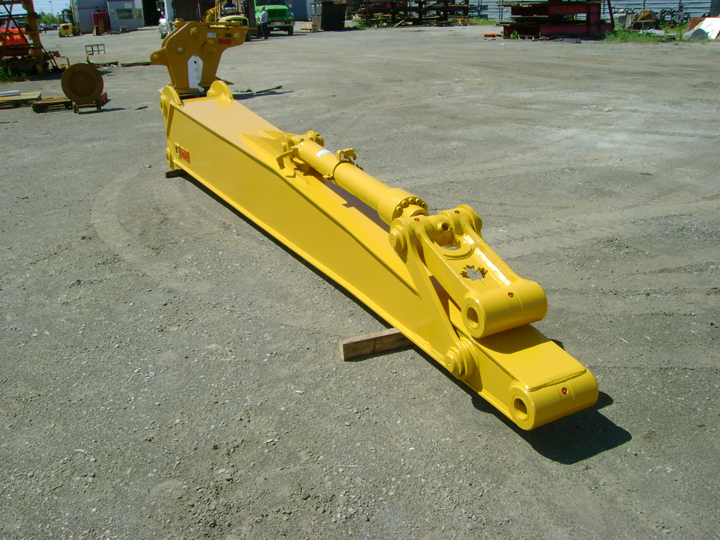

- Available with or without High Pressure cylinder and linkages.
Specifications
| Carrier | Model | Length m [ft] | Weight kg [lb] |
|---|---|---|---|
| 16 - 24 t | 20LJ1 | 3.6 [12] | 610 [1,345] |
| 22 - 28 t | 25LJ1 | 4.9 [16] | 733 [1, 705] |
| 26 - 38 t | 30LJ1 | 5.2 [17] | 1,176 [2,592] |
| 35 - 50 t | 40LJ1 | 6.1 [20] | 1,441 [3,177] |
| 48 - 60 t | 55LJ1 | n/a | n/a |
| 59 - 90 t | 70LJ1 | 6.1 [20] | 2,180 [4,807] |
