Telescopic Extensions
Designed for deep excavating, ditching, dredging and pond work. Nye telescopic stick extensions pin-on in place of the OEM bucket, cylinder and linkages. No cutting or welding required. QT100 quenched and tempered structural steel construction for maximum strength and minimum weight. Available for excavators ranging from 20 to 85 tons.
Download Spec Sheet
Features
- Specifically designed for deep digging applications.
- All excavator makes and models.
- Easy to install and remove.
- New bucket cylinder and linkages included.
- Stick mounted in place of bucket cylinder and linkage.
Specifications
| Carrier [x1000lbs] | Model | Length m [ft] | Weight kg [lb] |
|---|---|---|---|
| 22-28 t [48 - 62] | TSE250 | 8 [26] | 3,040 [6,702] |
| 26 - 38 t [57 - 84] | TSE350 | 10 [33] | 3,850 [8,488] |
| 35 - 50 t [77 - 110] | TSE450 | 11 [37] | 4,082 [9,000] |
| 48 - 60 t [106 - 132] | TSE600 | 11 [37] | 5,210 [11,486] |
| 59 - 90 t [130 - 198] | TSE850 | 11 [37] | 7,103 [15,660] |
Gallery
-

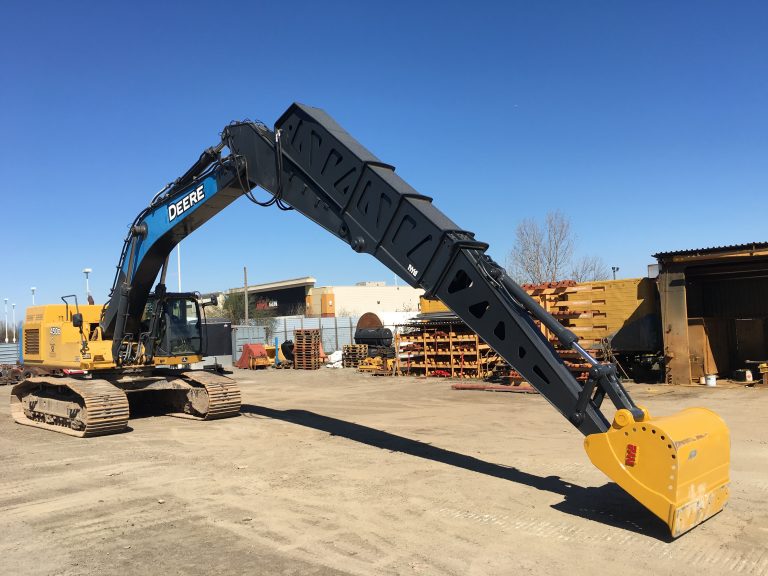

TSE450
![]()
![]()
![]()
![]()
-

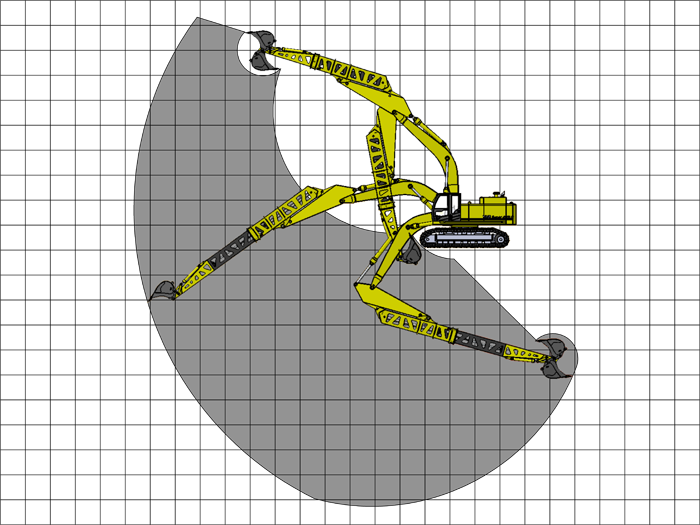

Telescopic Range.
![]()
Telescopic Extension -
Telescopic Extn.
![]()
Telescopic Extension -
TSE450
![]()
Telescopic Extension
