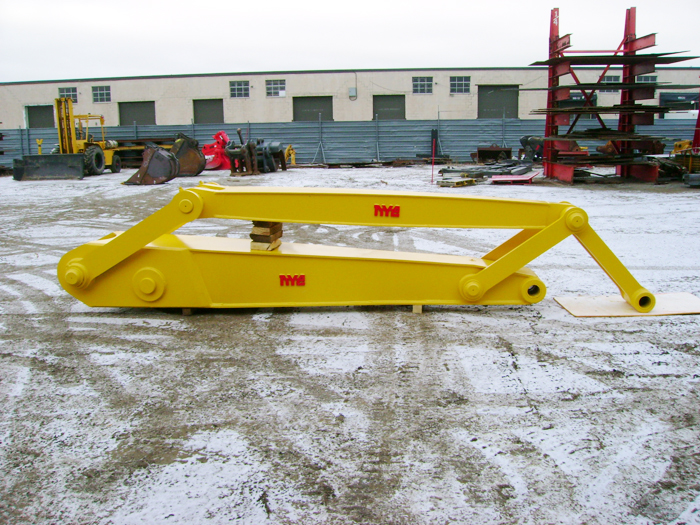

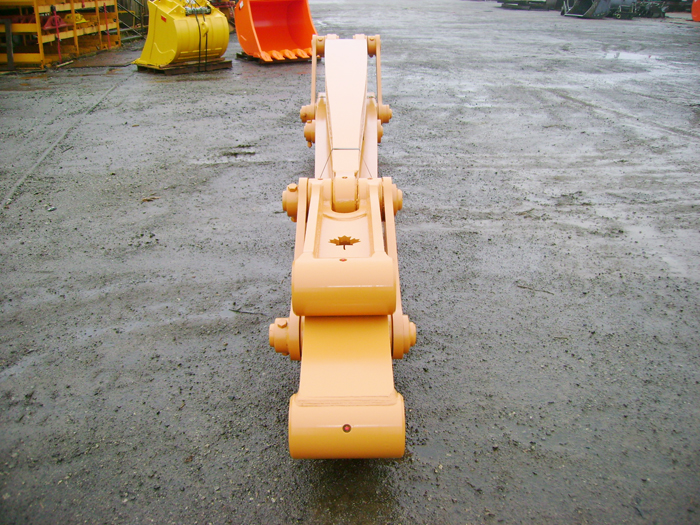

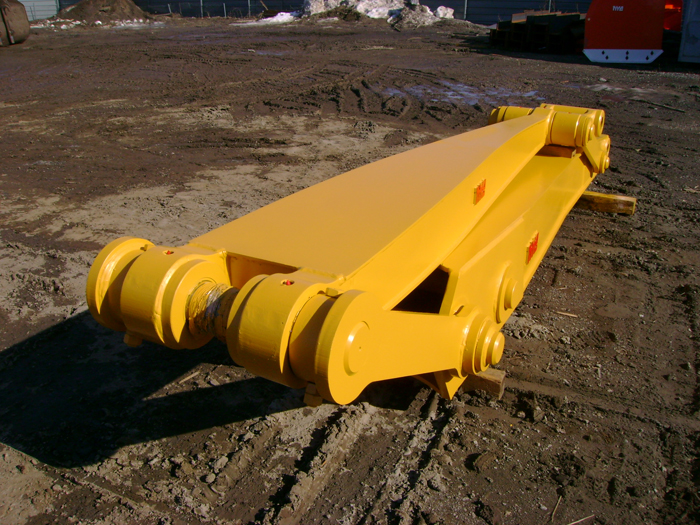

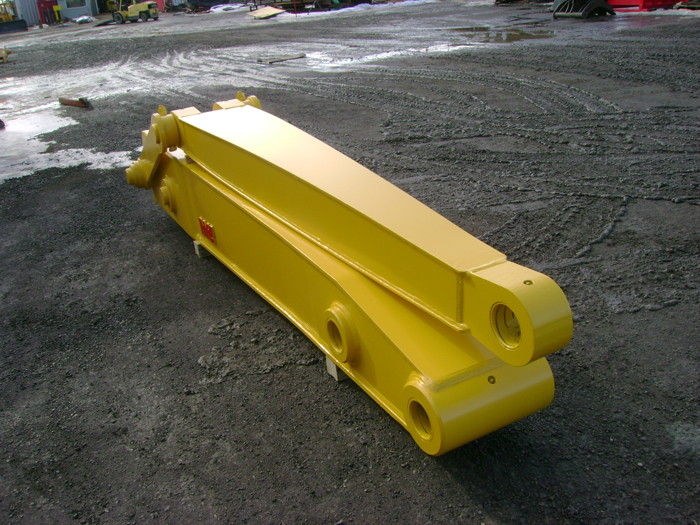

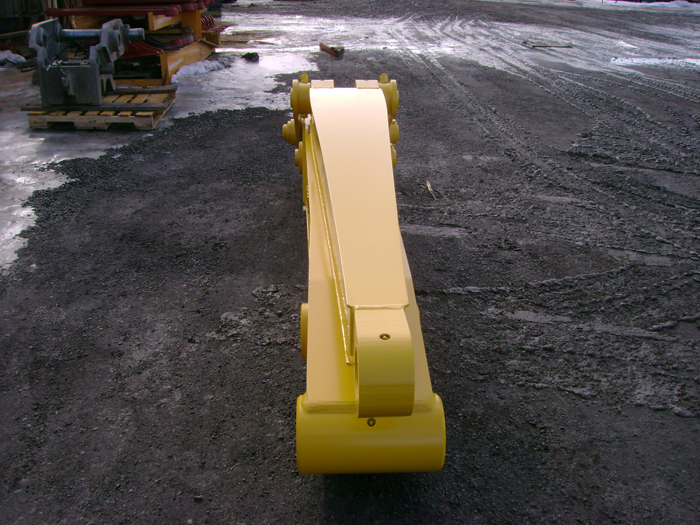

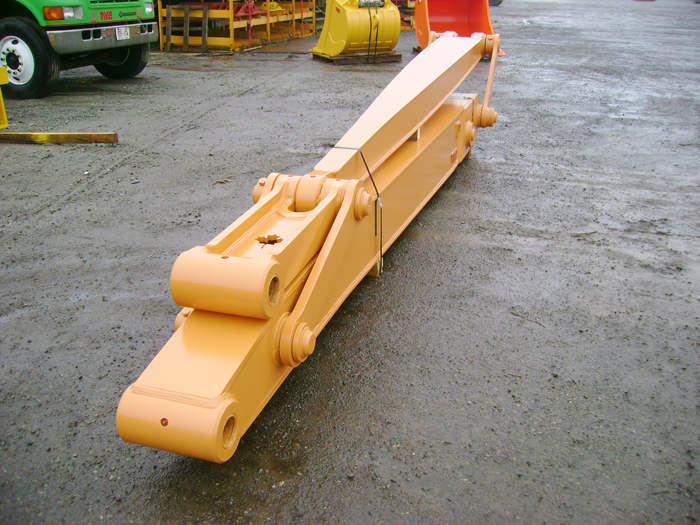

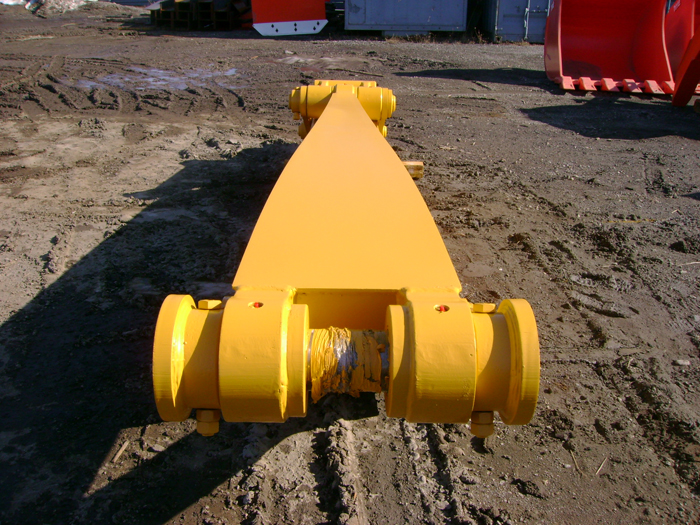

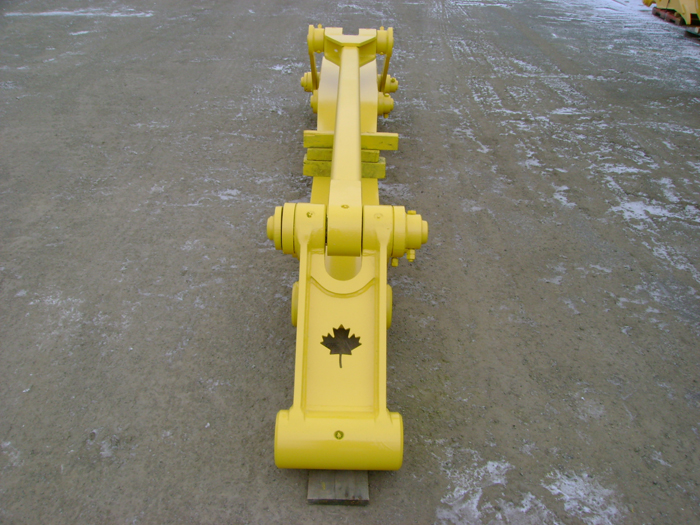

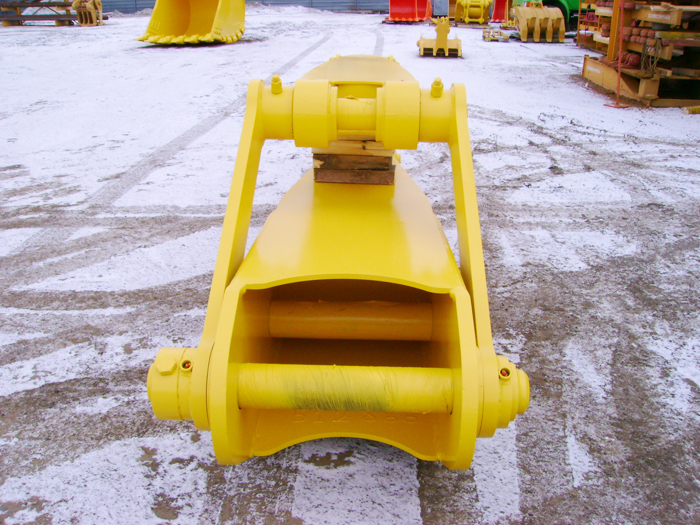

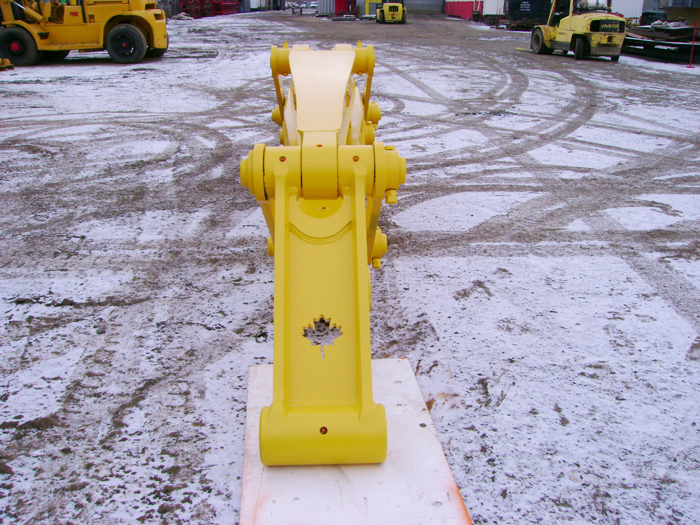

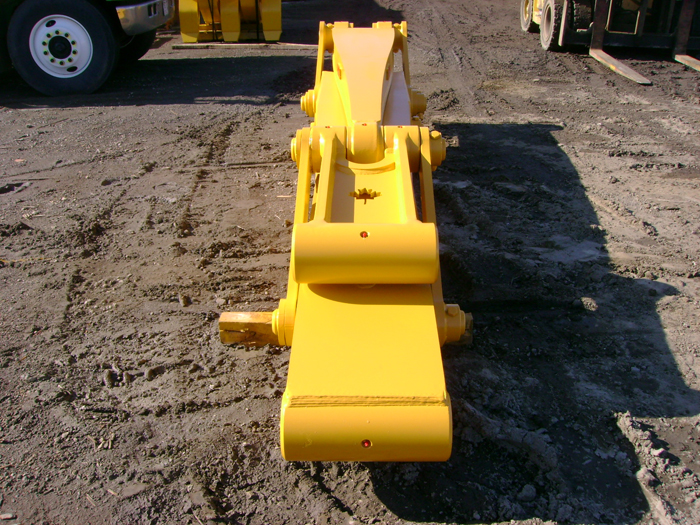

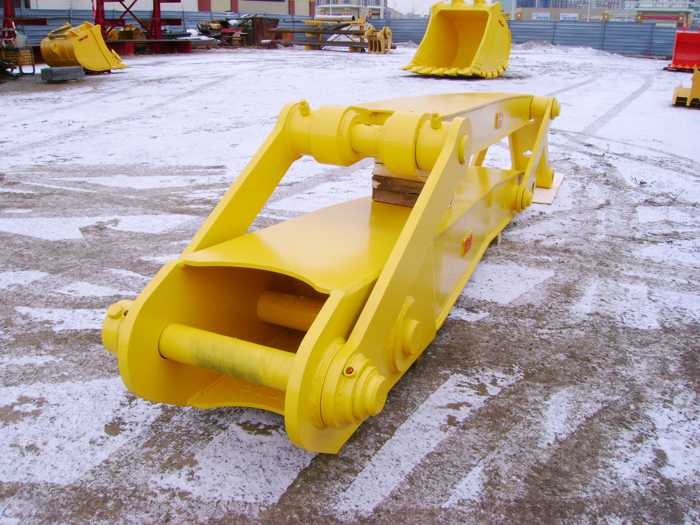

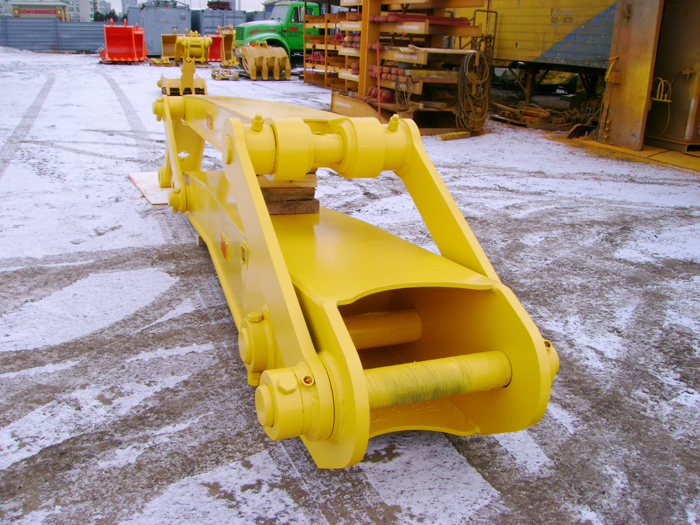

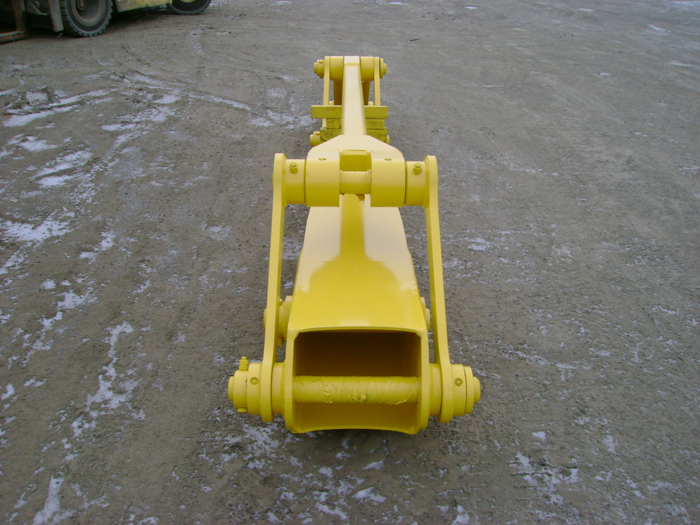

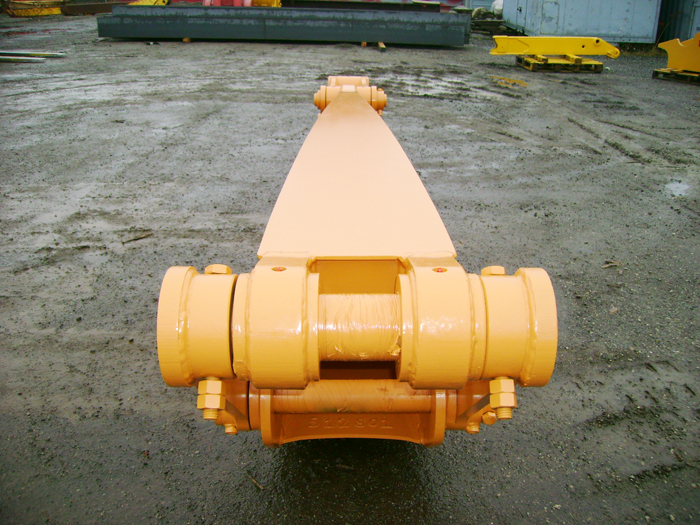

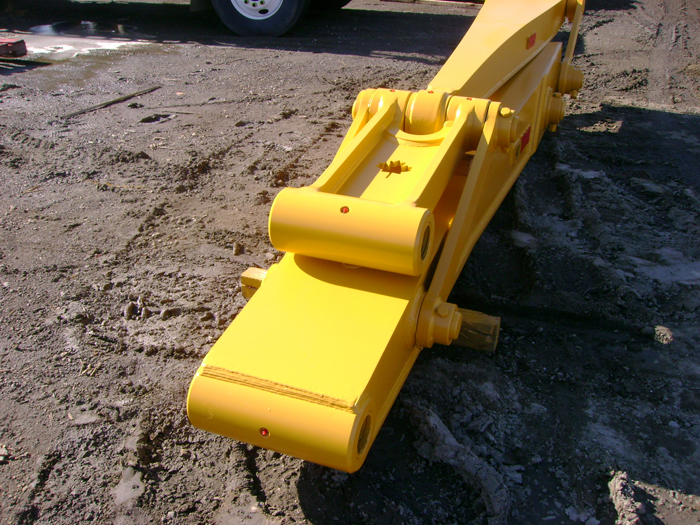

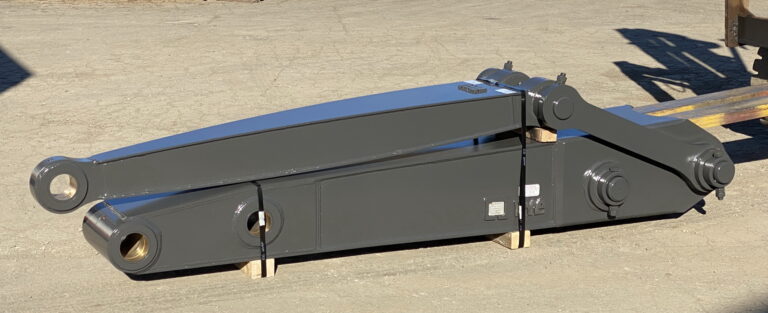

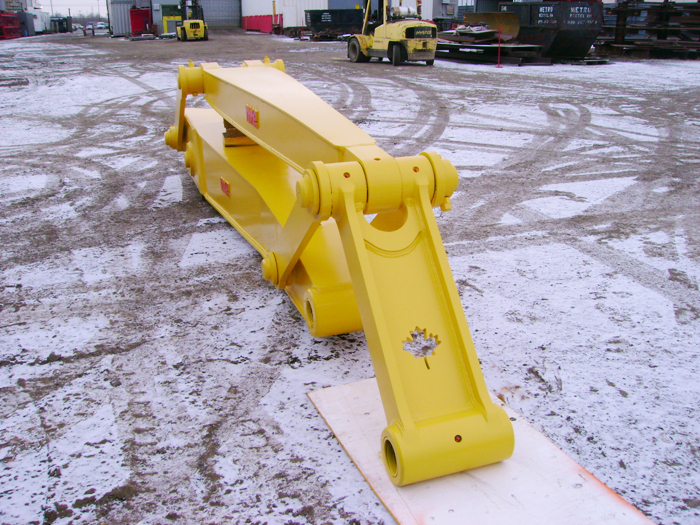

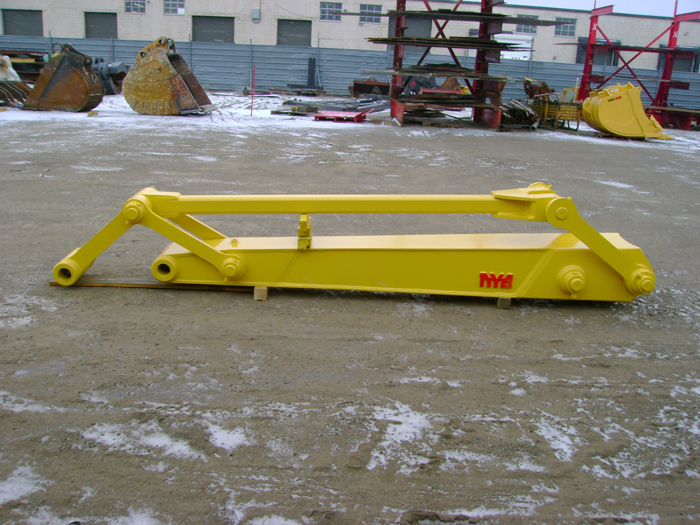

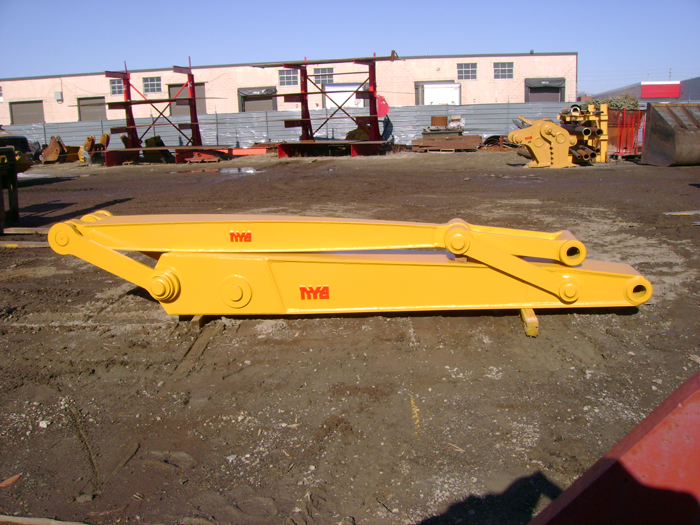

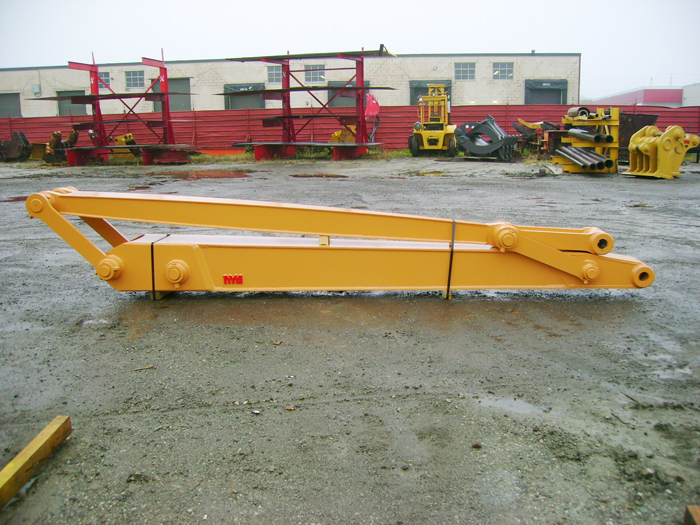

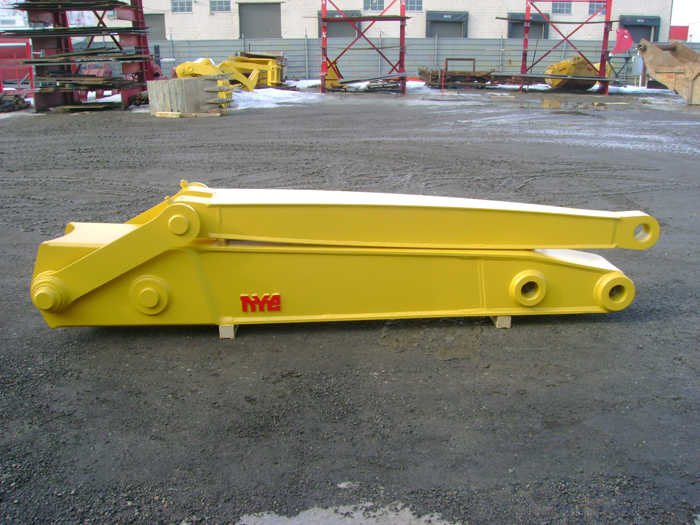

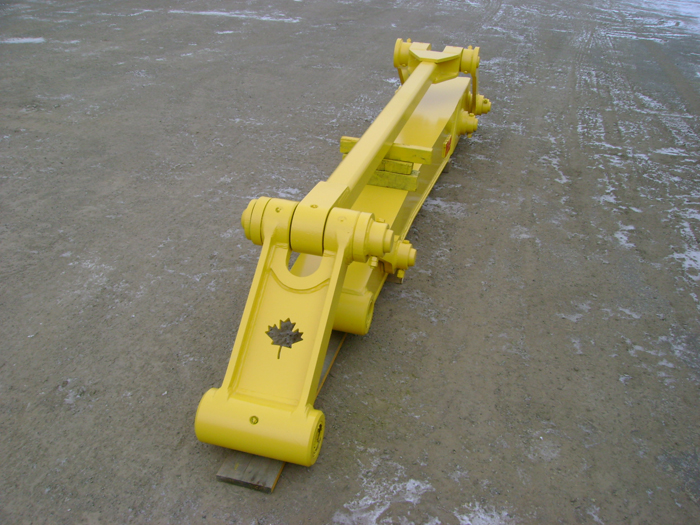

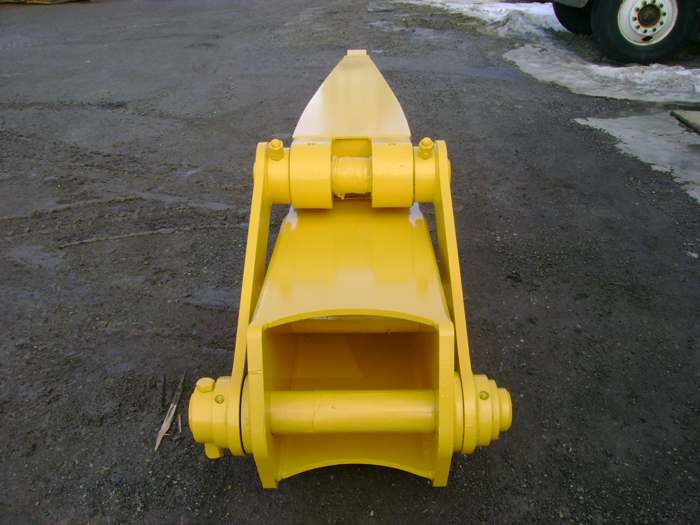

Parallel-Link Extensions

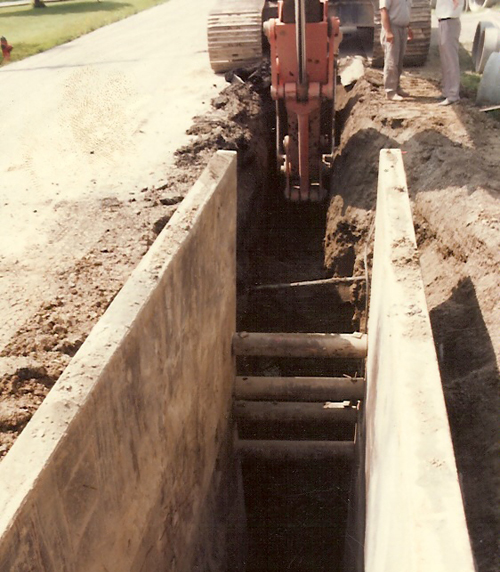

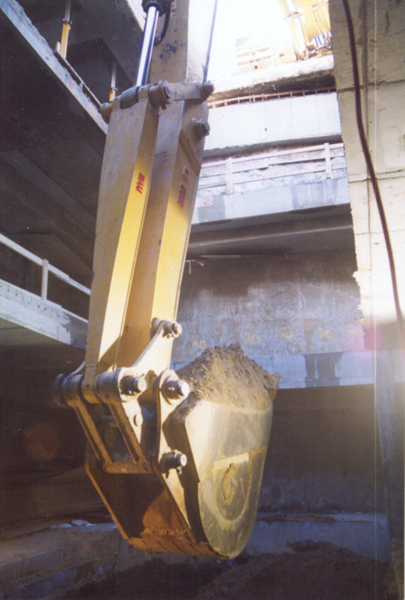

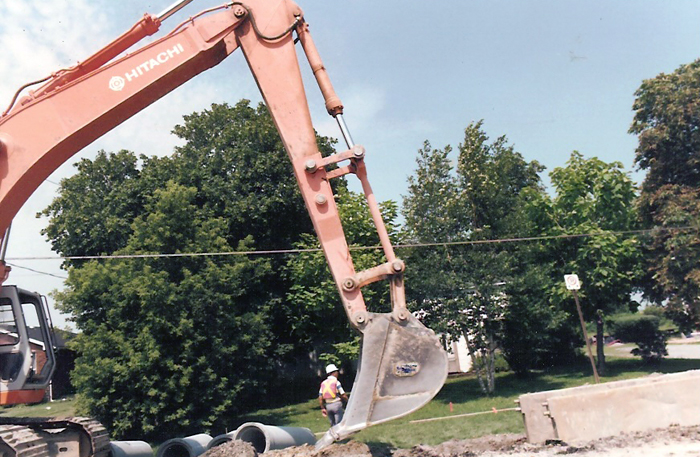

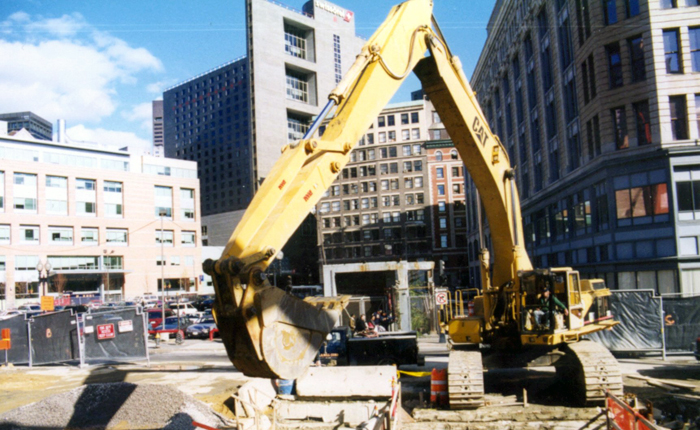

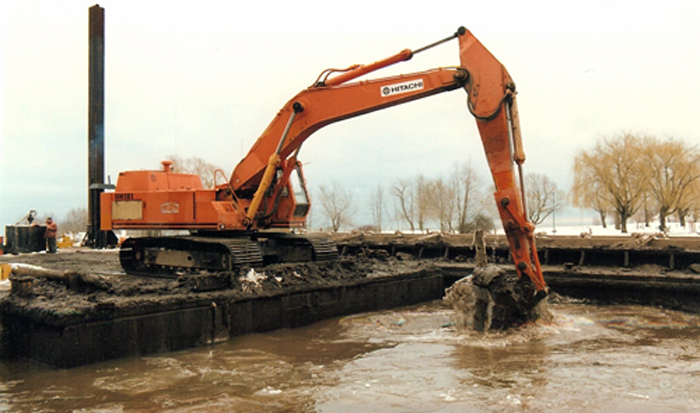

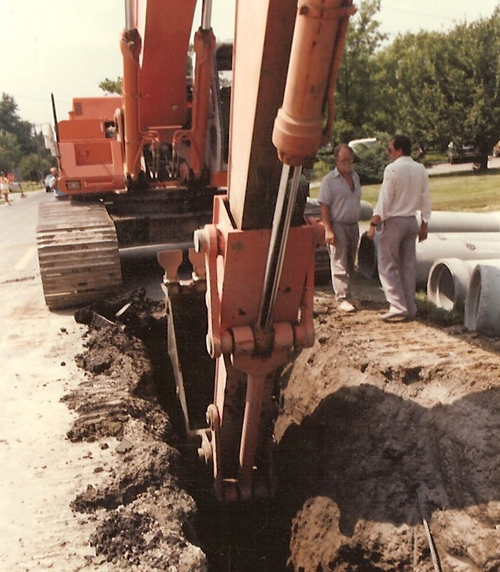

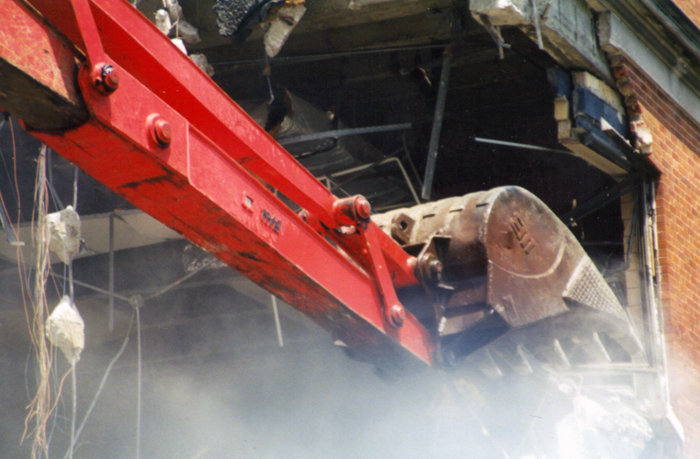

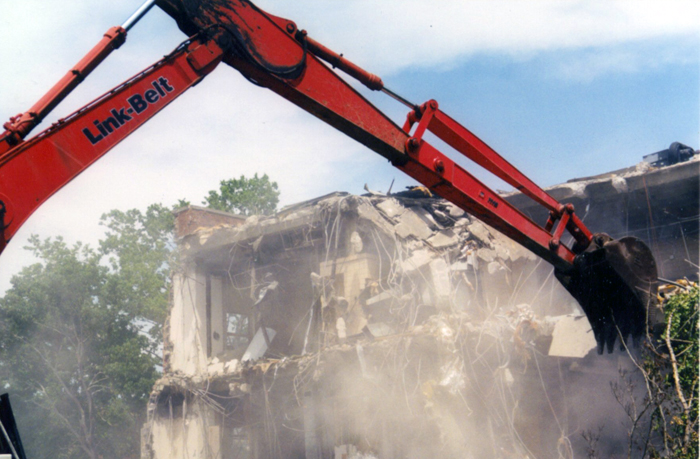

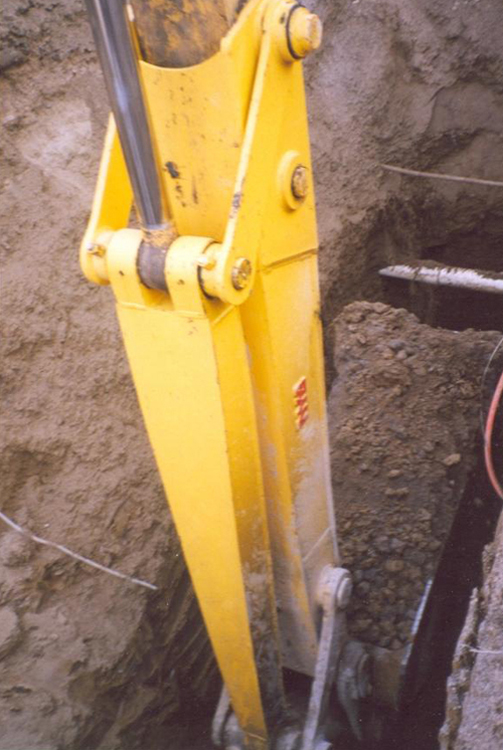

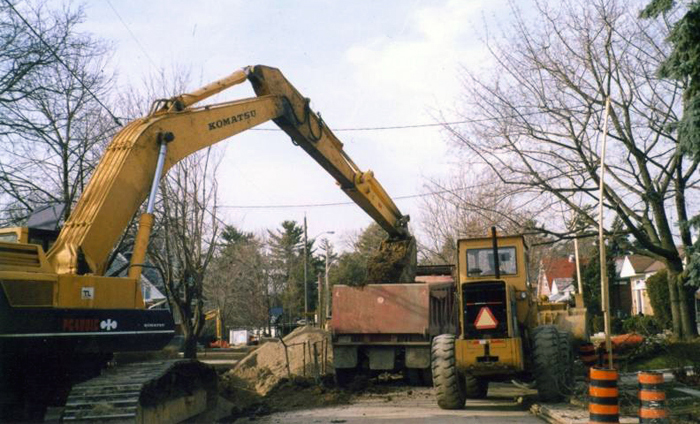

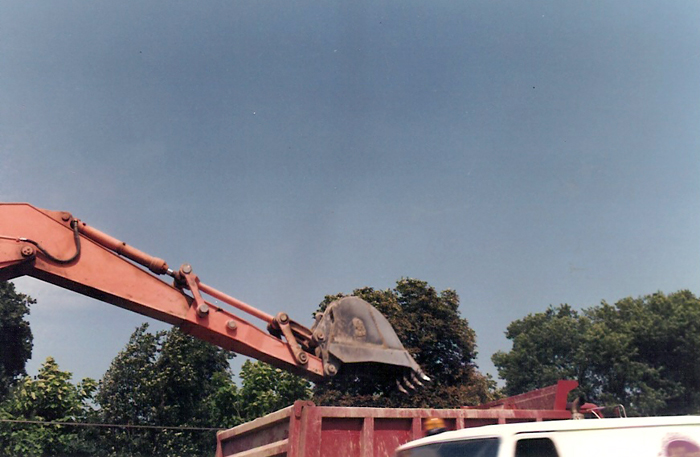

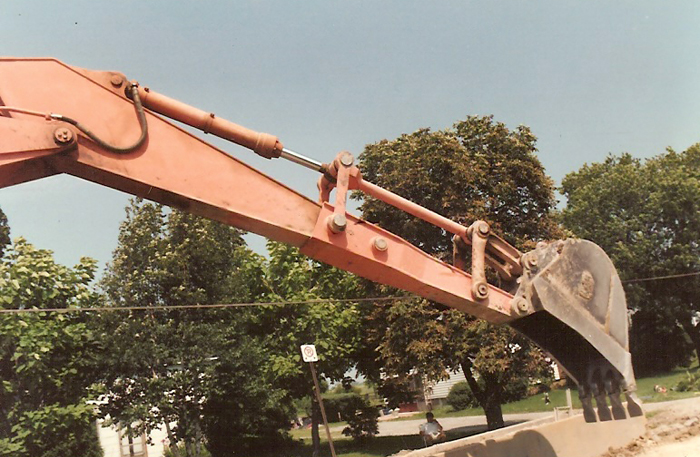

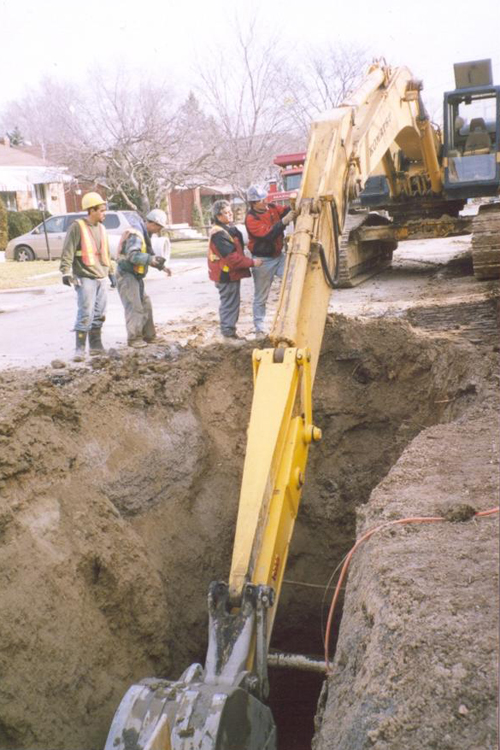

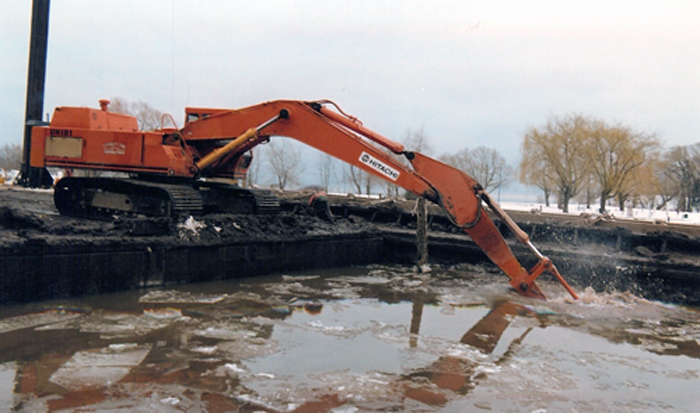

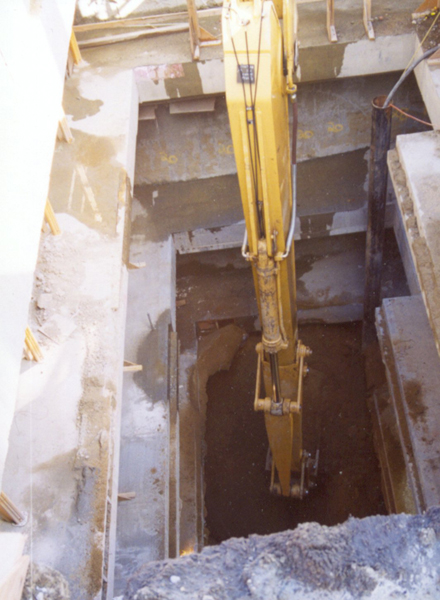

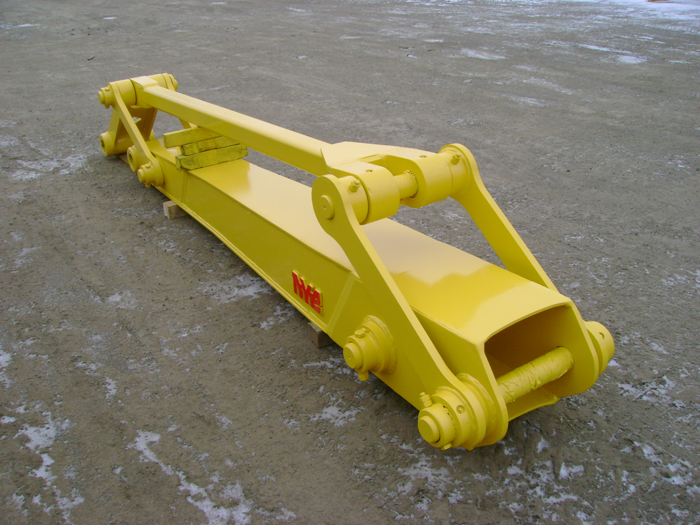

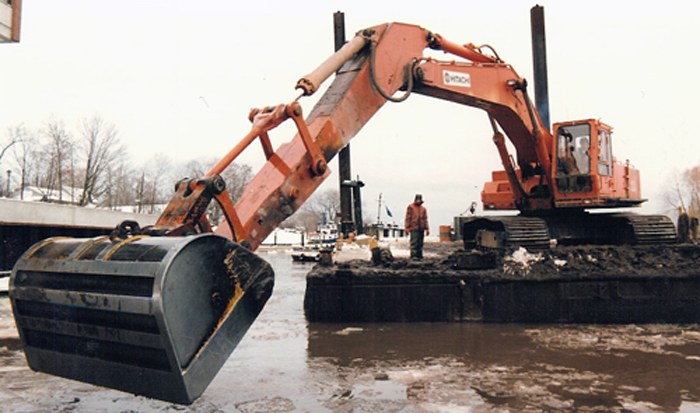

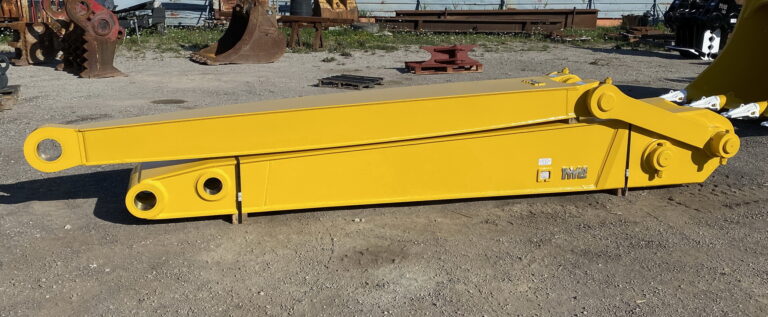

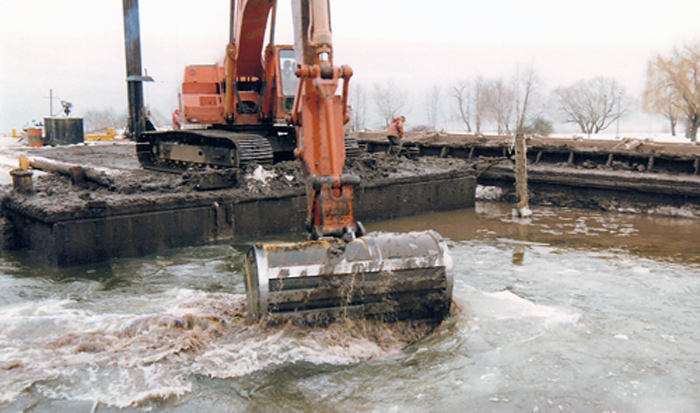

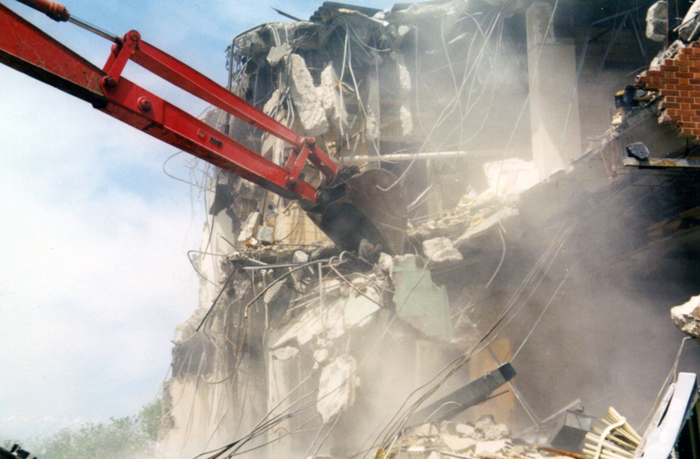

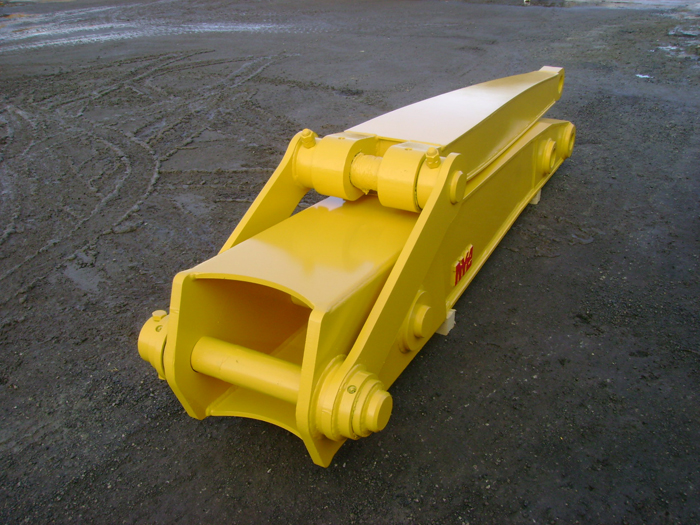

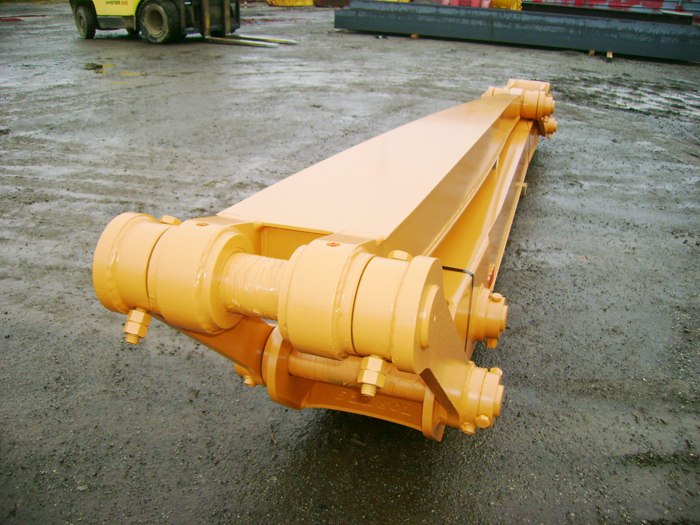

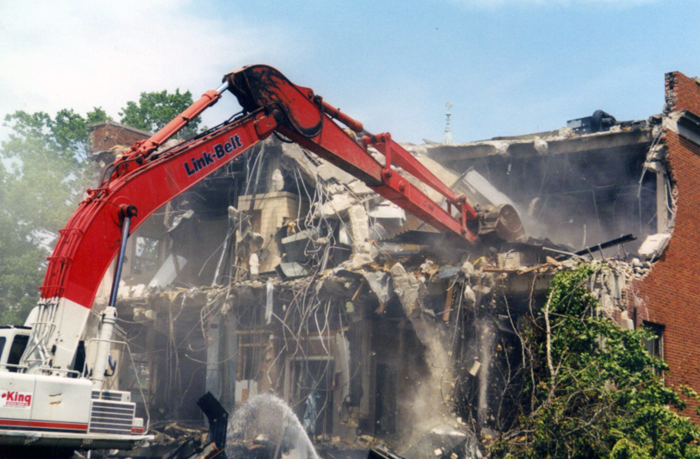

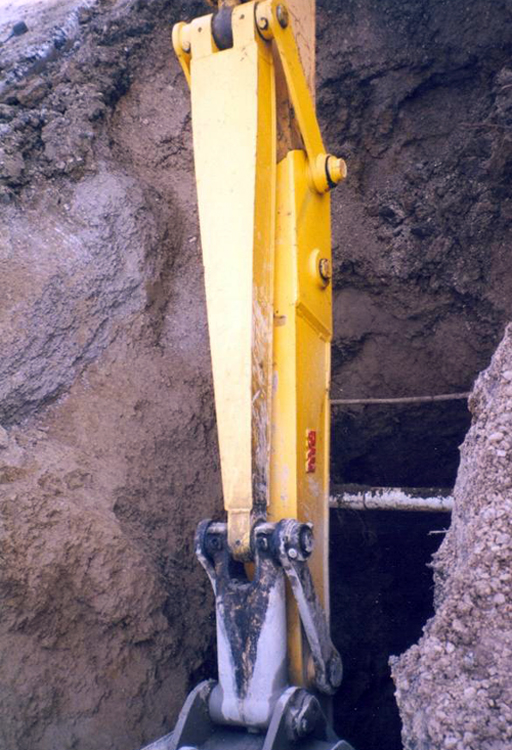

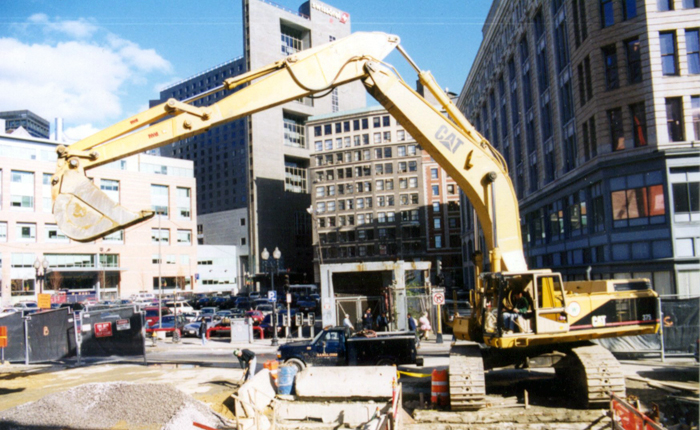

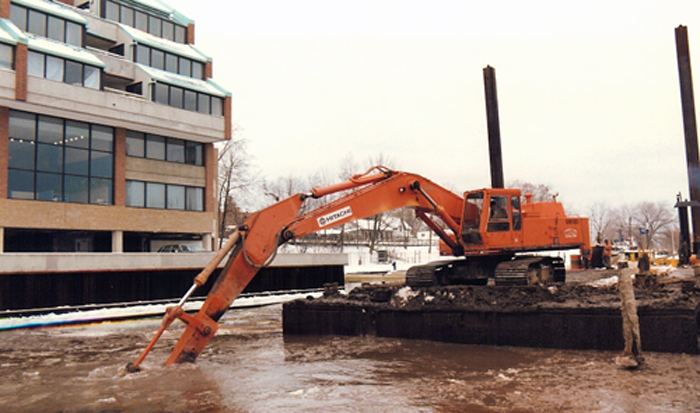

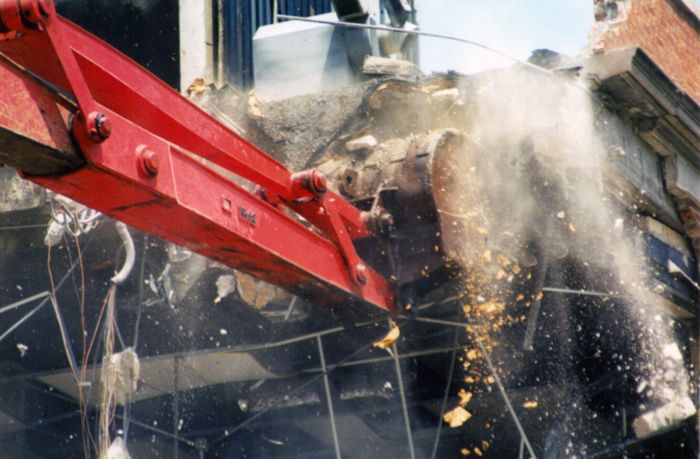

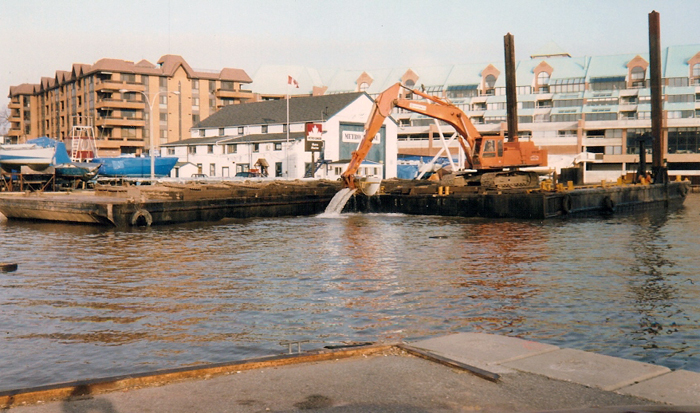

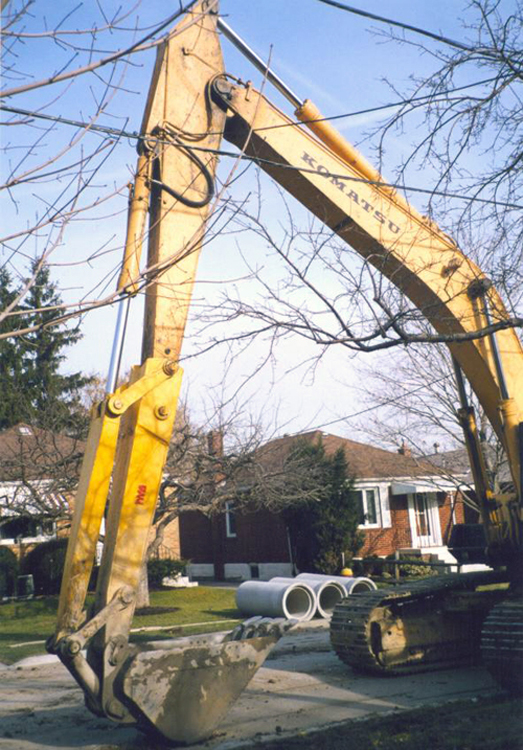

Our most popular and versatile option for extra reach. Useful for deep excavating, demolition and dredging. No cutting, welding or extra hydraulics required. Parallel-Link extensions simply pin onto the end of your existing stick. QT100 structural steel, low hydrogen flux core welds, hardened alloy pins and bushings throughout ensure maximum durability on demanding jobs. Available for 8 to 100 ton machines.
Download Spec Sheet
Features
- Designed for applications where extra digging depth and reach are required.
- 4’ through 12’ lengths available depending on size of machine.
- All excavator makes and models
- Easy to install and remove.
- Comes with everything needed , no welding, hoses or extra valves required.
Specifications
| Carrier | Model | Length m [ft] | Weight kg [lb] |
|---|---|---|---|
| 16 - 24 t | 20PL1 | 1.8 [6] | 850 [1,875] |
| 22 - 28 t | 25PL1 | 1.8 [6] | 930 [2,050] |
| 26 - 38 t | 30PL1 | 2.4 [8] | 1,202 [2,650] |
| 35 - 50 t | 40PL1 | 2.4 [8] | 1,905 [4,200] |
| 59 - 90 t | 70PL1 | 3.0 [10] | 2,985 [6,580] |
