Tilt Units
Nye tilt units have evolved alongside our tilt buckets. Our latest designs now feature 90 degrees of total rotation and the same heavy-duty double acting cylinders and hardened alloy pivot group as found in our long lasting tilt buckets.
![Tilt Units](https://nyemanufacturing.com/wp-content/uploads/2018/01/TiltUnit-768x768.png)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/DSCN2861.jpg)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/DSCN2862.jpg)

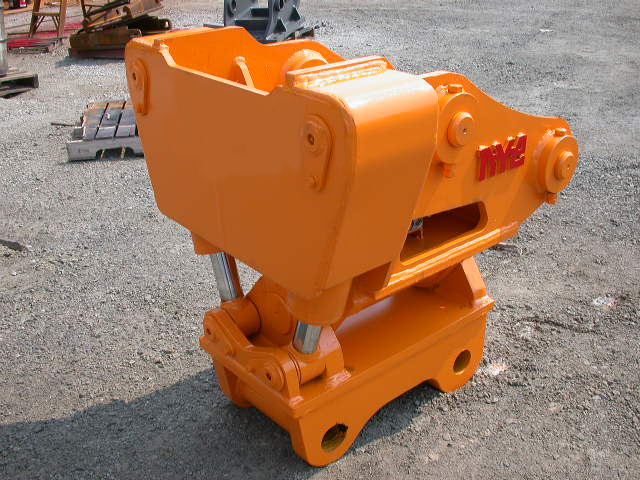

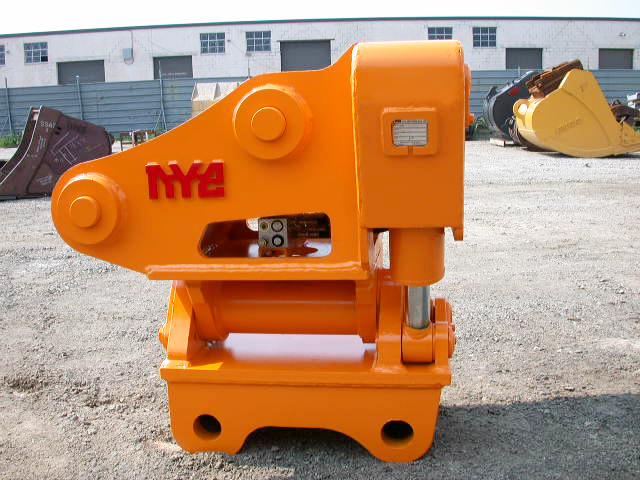

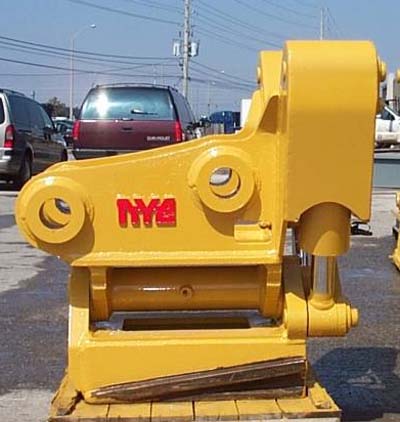

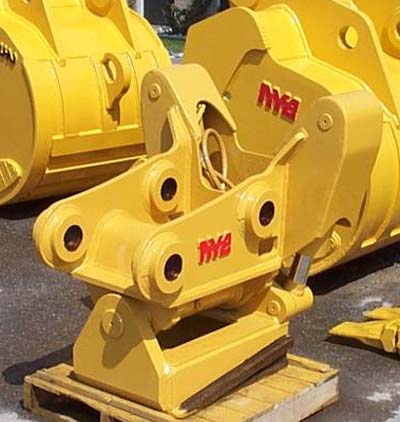

Twin Cylinder Tilt Unit
Special application high torque tilt unit.
Optional twin cylinders.
Stealth Quick Coupler.
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/tilt_unit_2cylinder2.jpg)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/tilt_unit_2cylinder1.jpg)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/tilt_unit_2cylinder.jpg)

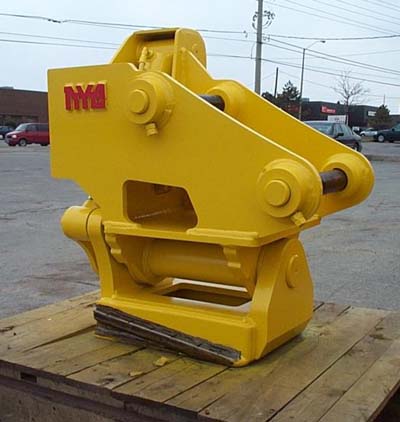

QC double cylinder Tilt Unit
- Quick couples to bucket.
- Tilts 45° left and right.
- Rugged construction.
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/new_holland_tilt2.jpg)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/new_holland_tilt1.jpg)

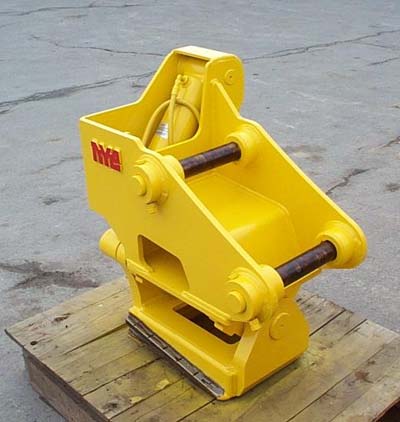

![](https://nyemanufacturing.com/wp-content/uploads/2018/01/new_holland_tilt_unit.jpg)

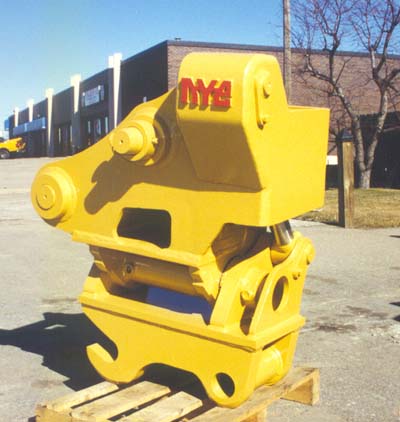

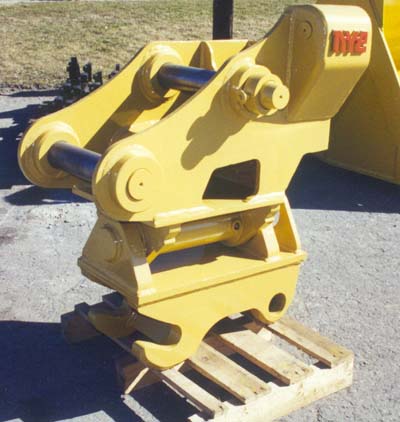

QC single cylinder Tilt Unit
- Provides Quick Coupling and tilt capability.
- Designed for heavy duty applications.
- Available for all excavators. (Even really big ones!)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/tilt_cat3202.jpg)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/tilt_cat3201.jpg)

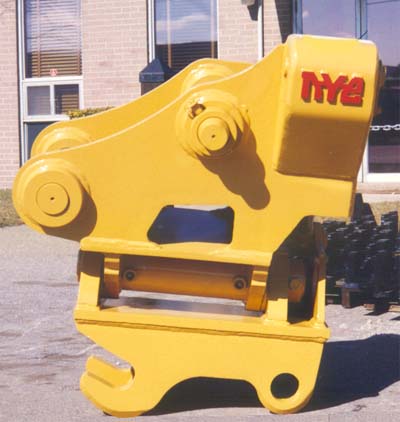

![](https://nyemanufacturing.com/wp-content/uploads/2018/01/tilt_cat320.jpg)
Quick pin Tilt Unit
- Variable angle from 45° Left to 45° Right.
- QT 100 plate throughout.
- High Pressure double acting cylinder.
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/235Tilt_Unit_1-768x516.jpg)

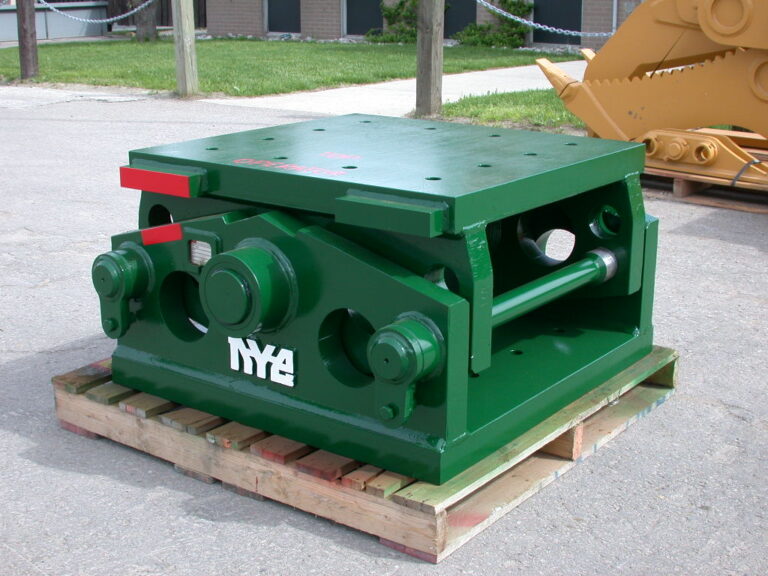

Quick pin Tilt Unit
- Flame hardened alloy pins.
- Aluminum-Bronze Bushings.
- Simple installation, No welding required.
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/DSCN0830-768x576.jpg)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/DSCN0831-768x576.jpg)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/DSCN0833-768x576.jpg)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/DSCN0832-768x576.jpg)
![](https://nyemanufacturing.com/wp-content/uploads/2018/01/17-6124_DSCN0830_01-768x512.jpg)
Mechanical Tilt Unit
No hydraulics.
Designed for use with large hydraulic rock breakers.
Features
Control Valve Features:
- Load holding (bucket stays put).
- Pressure relief (prevents cylinder damage).
- Speed control (prevents slamming).
- Hose management (multiple configurations left, right, or one hose on each side).
Specifications
Carrier | Model | Height mm [in] | Weight kg [lb] |
---|---|---|---|
13 - 17 t | 15TU | 450 [18] | 431 [950] |
16 - 24 t | 20TU | 570 [22] | 506 [1,115] |
22 - 28 t | 25TU | 685 [27] | 567 [1,250] |
26 - 38 t | 30TU | 787 [31] | 624 [1,375] |
35 - 50 t | 40TU | 928 [36.5] | 680 [1,500] |
