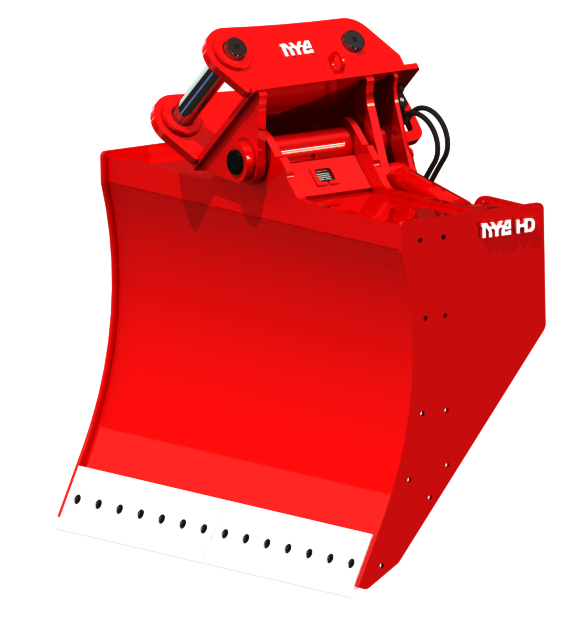

CBT Chuck Blade
The Nye CBT Tilt Chuck Blade features super strong QT100 front and rear beams.

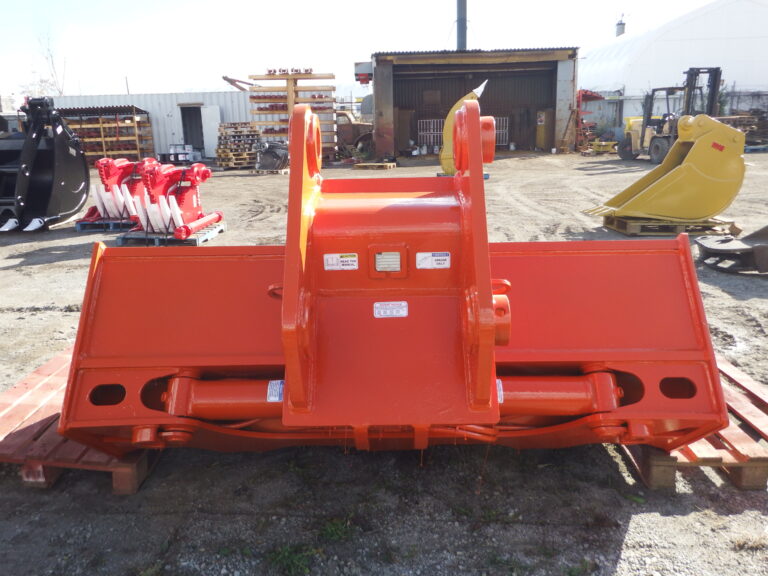

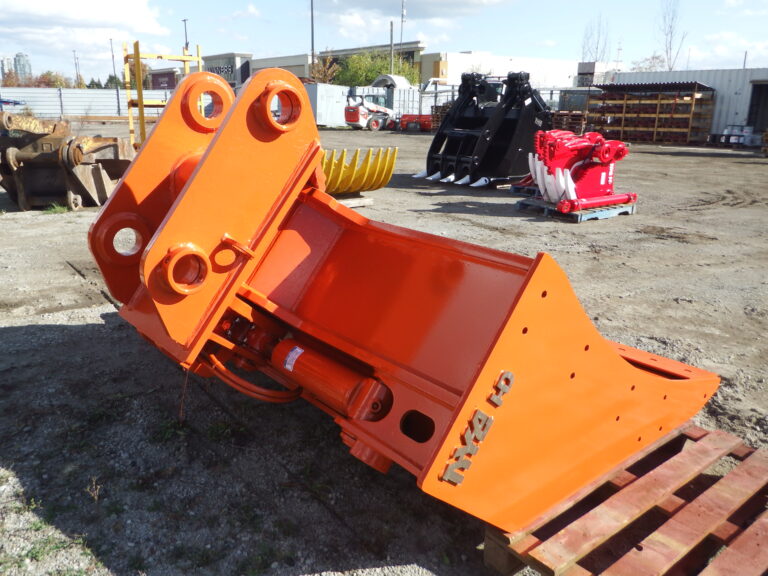

The Heavy-duty double acting cylinders are strategically mounted low on the back, over a sloped bridge plate, which promotes self clearing of mud, stones and debris.
Heavy duty bolt-on edges are standard. The hydraulic control valve provides load holding/relieving, speed control, side hose hookup and hose management functions.
All Nye CBTs have a full 90° tilt range, 45° left and 45° right, with high holding power.
Built for outstanding strength, serviceability and long life. Nye CBTs are available in quick coupler and direct-pin versions.
Download Spec Sheet
Features
BUILDING NYE’S CHUCK BLADE
Features:
- Super heavy pivot group.
- Double acting cylinders.
- Load control valve.
- Protected cylinders.
- Heavy QT100 moldboard.
- Gusseted base edge.
- AR400 sides and wear straps.
- Optional Side Wings.
- Quick Coupler options.
Specifications
| Carrier | Model | Blade Size (A) [in] | Weight (B) kg [lb] |
|---|---|---|---|
| 16 - 24 t | CBT200 | 86 X 42 | 2, 850 |
| 22 - 28 t | CBT250 | 86 X 42 | 4, 600 |
| 26 -38 t | CBT350 | 86 X 42 | 5, 200 |
| 35 -50 t | CBT450 | 122 X 62 | 7, 450 |
| 48 -60 t | CBT600 | 122 X 62 | 10, 650 |
| 59 -90 t | CBT850 | 122 X 74 | 12, 350 |
- Specifications subject to change
- CBT350 Model Shown
- Units of measure: kg [lb] and mm [in]
