HD Buckets
Heavy-Duty – buckets are built with extra thick materials in all wear areas and are designed for severe rock and shale applications where extra impact and abrasion resistance is required.
Download Spec Sheet

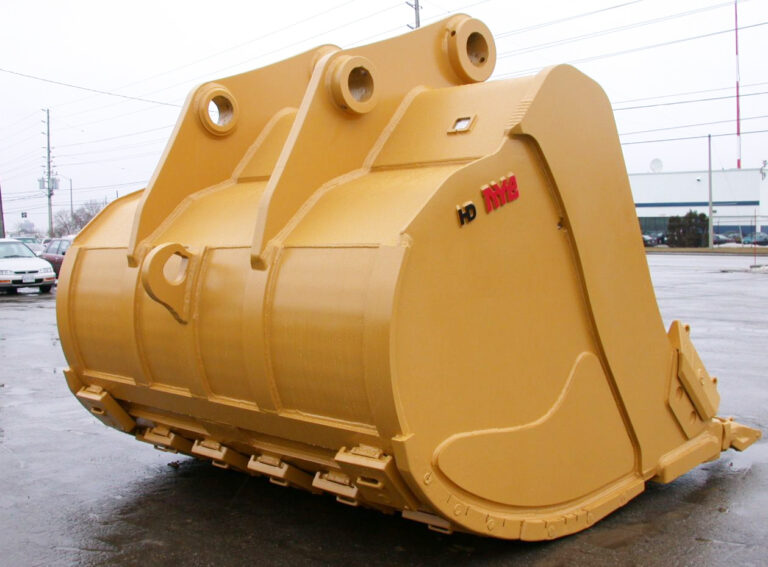

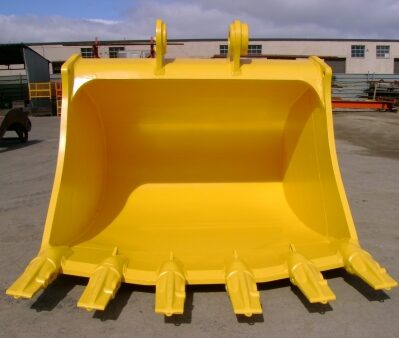

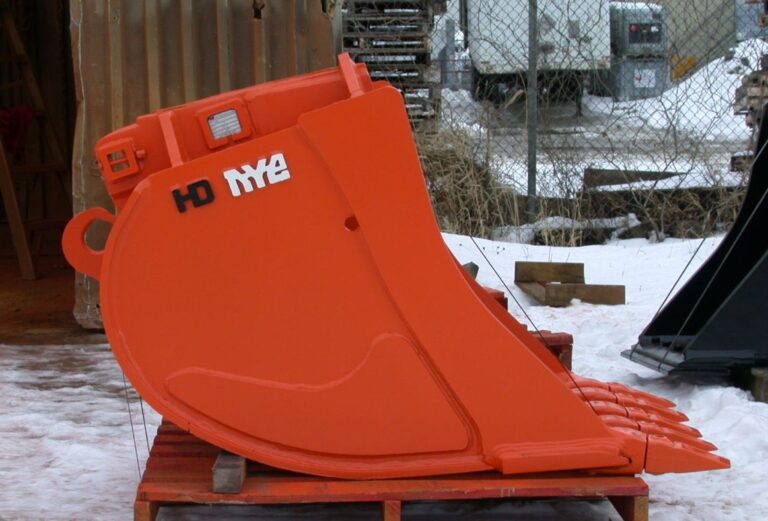

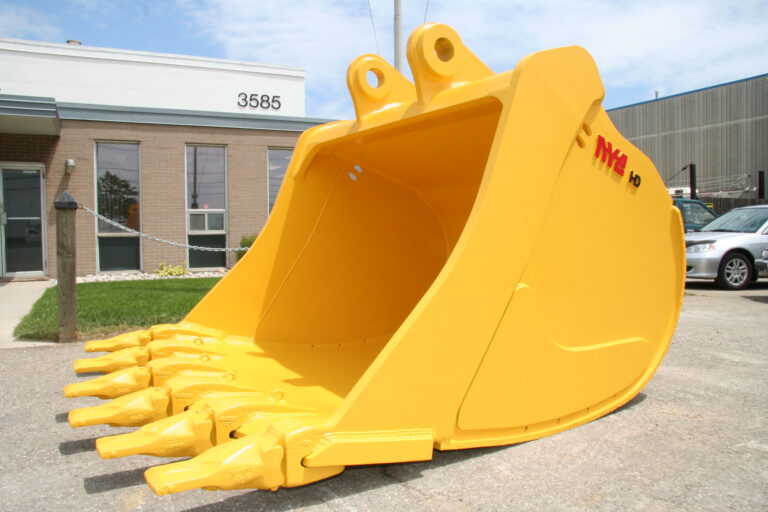

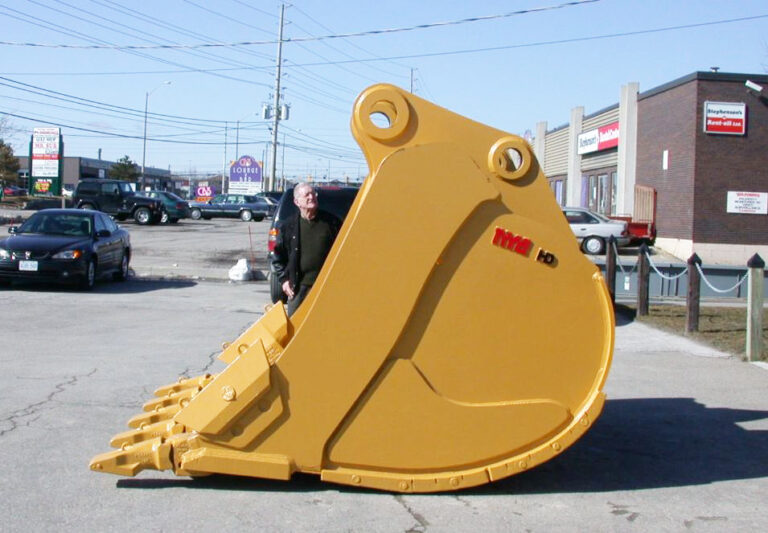

HD Rock Bucket
Extra large, high capacity rock bucket. Customers’ choice of teeth and wear parts.

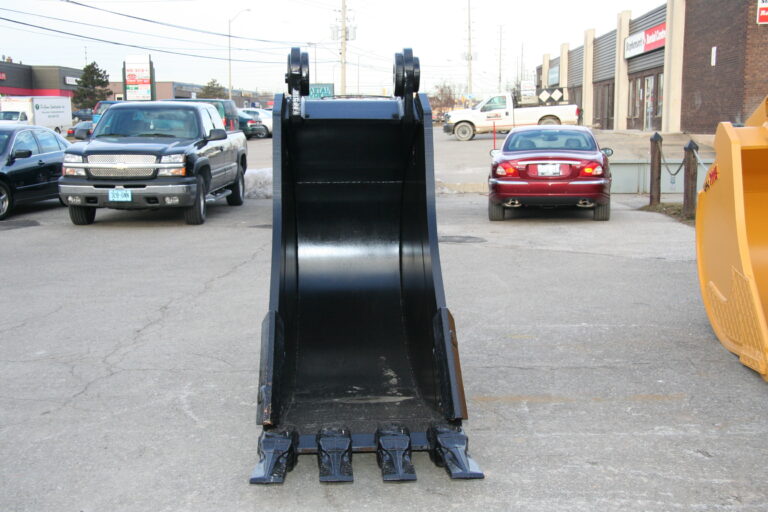

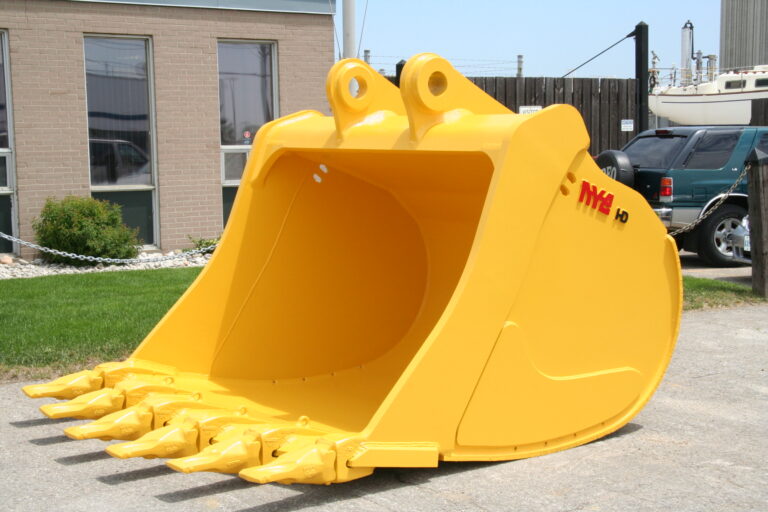

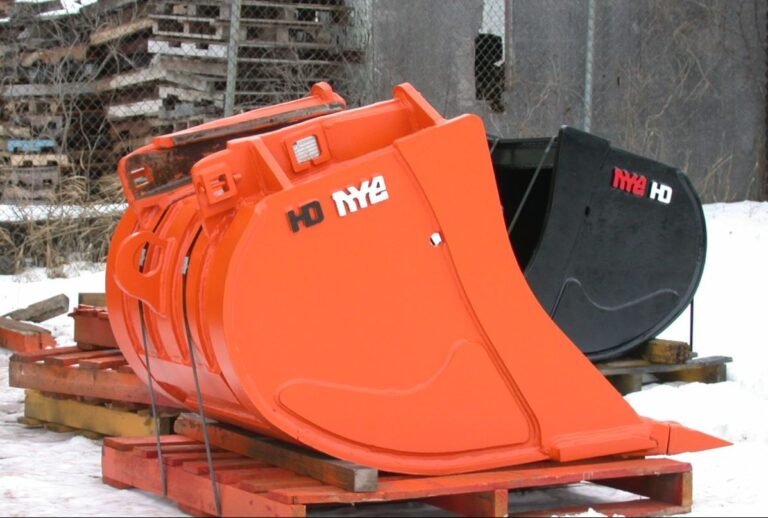

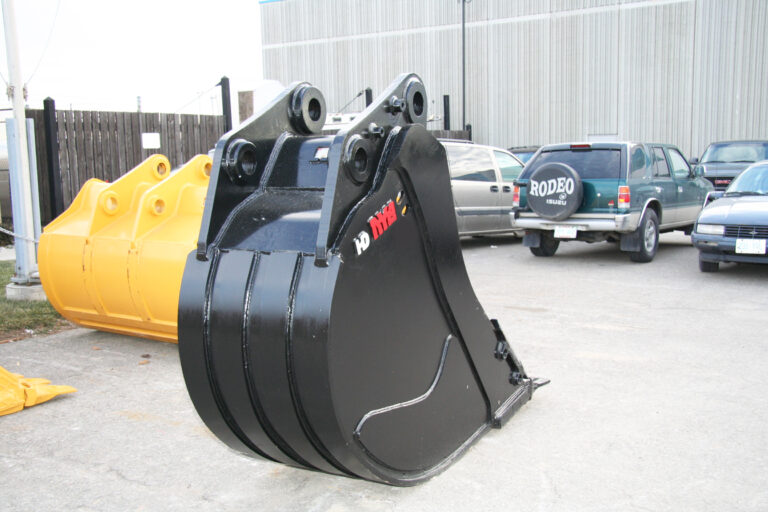

HD Trenching Bucket
Extra narrow design saves bedding material. Long pin to point for higher capacity and easy filling.

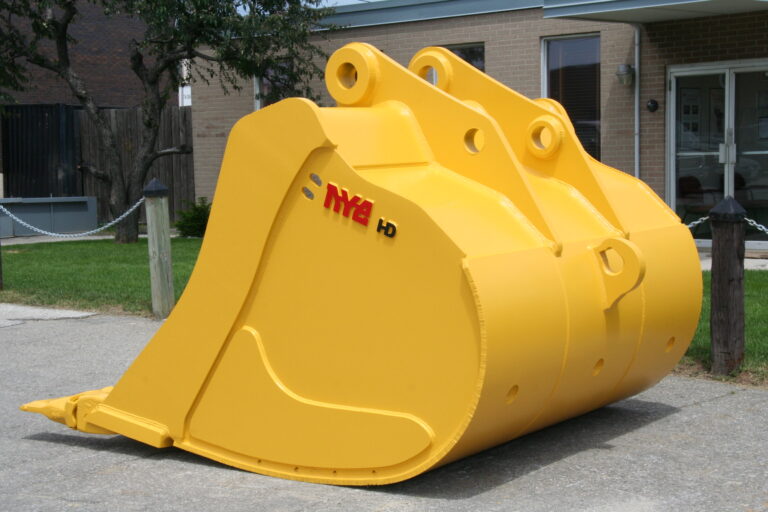

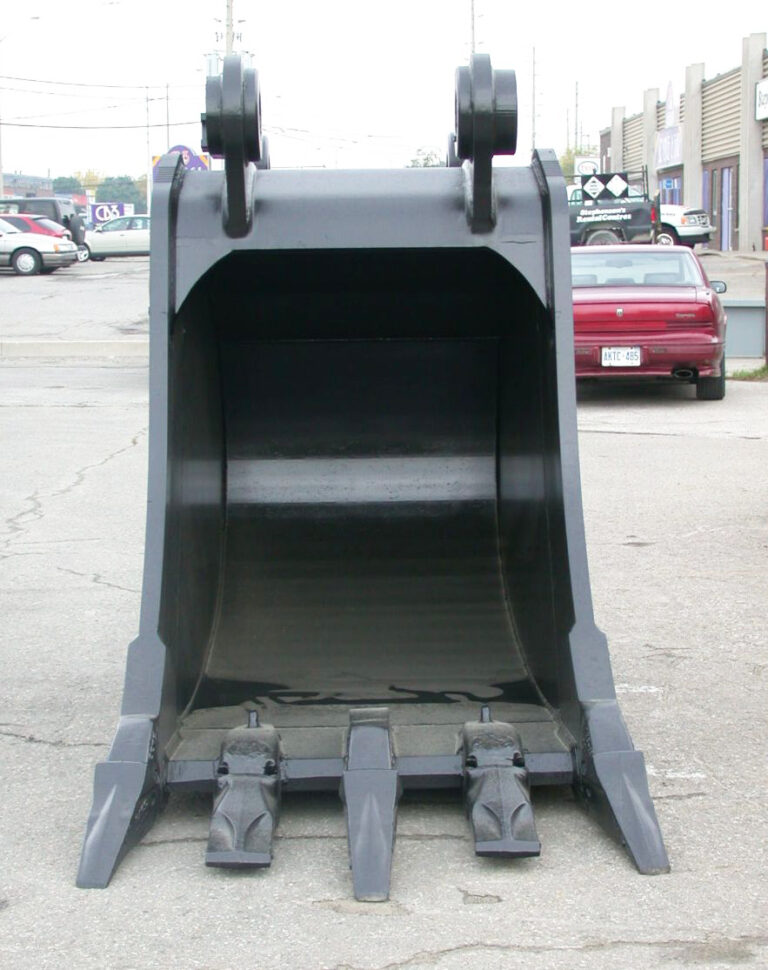

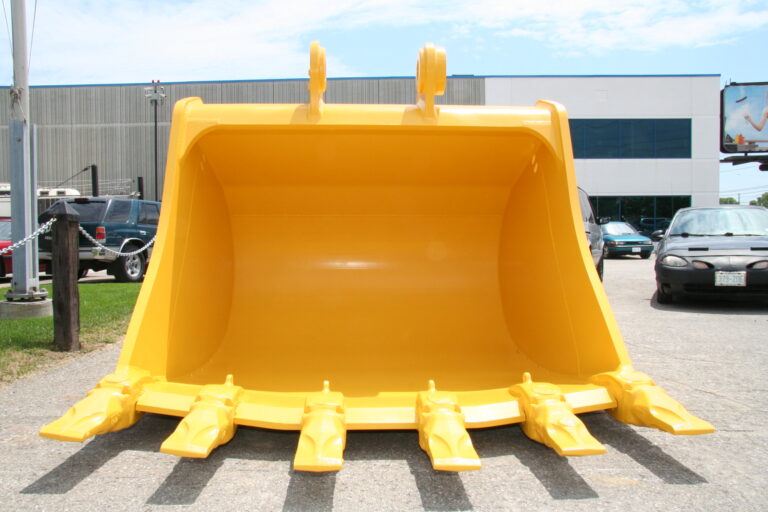

HD Bucket (Volvo Series)
- Optional side cutters.
- Superior geometry design for faster digging cycles.

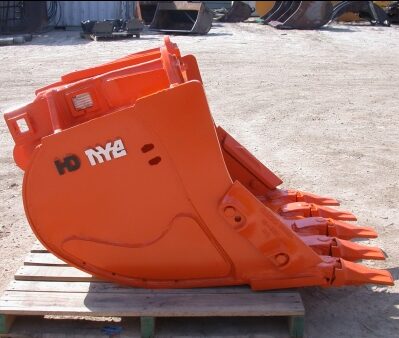

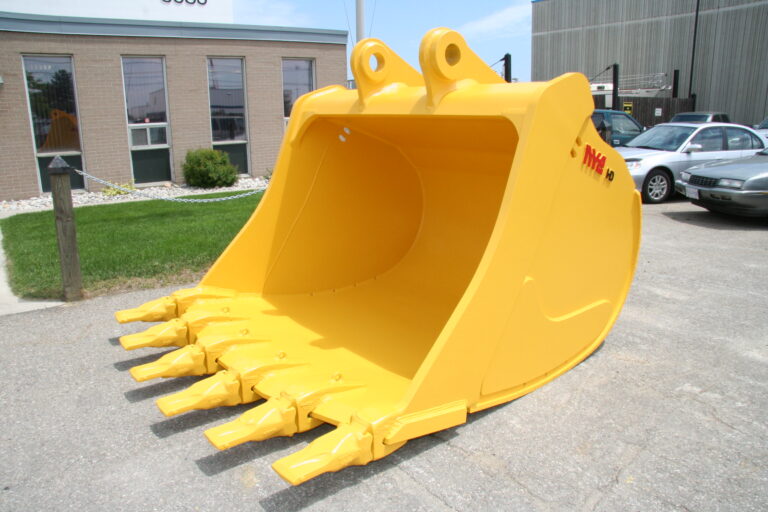

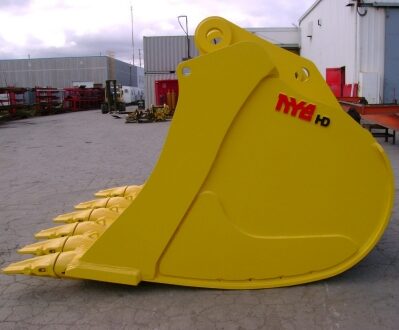

HD Bucket (Customized)
- All Nye buckets are available in any width.
- Provides maximum digging force.

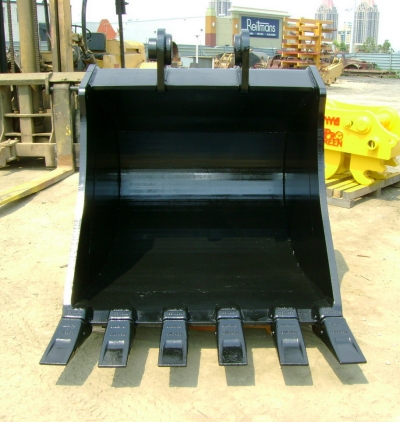

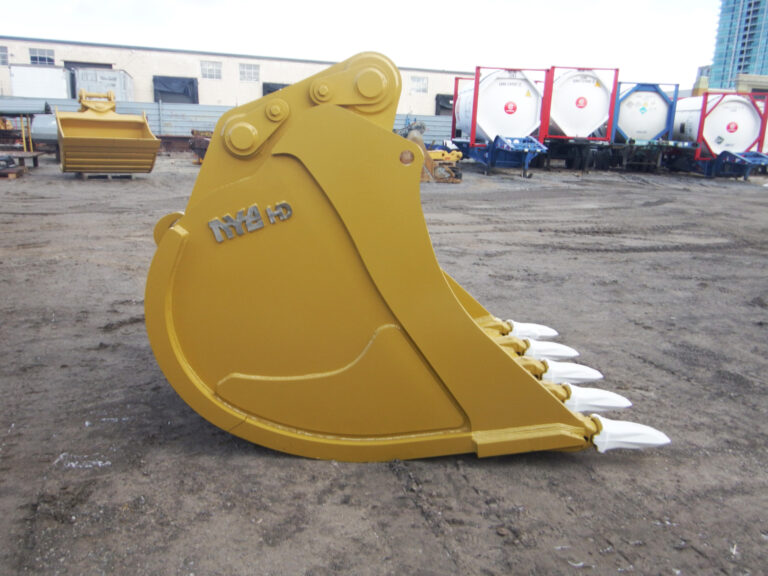

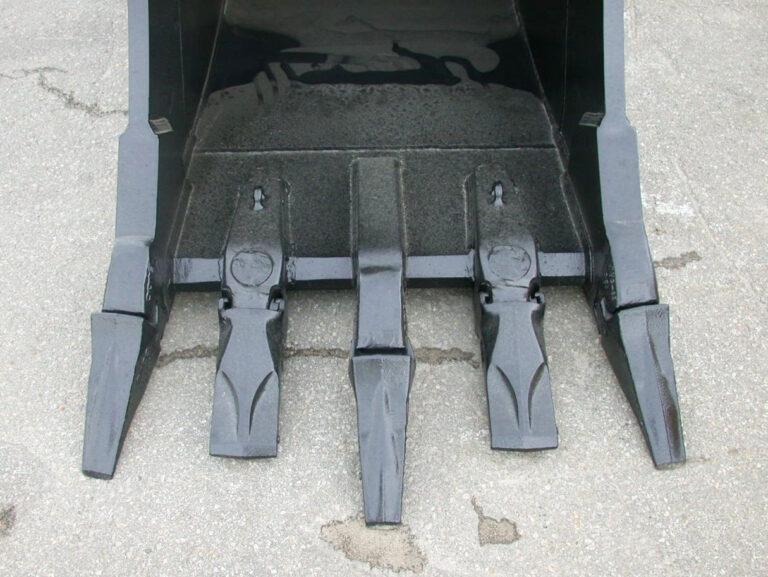

HD Bucket (Semi-spade Lip)
- Customizable with semi-spade or full spade base edge.
- Wear straps as standard equipment.

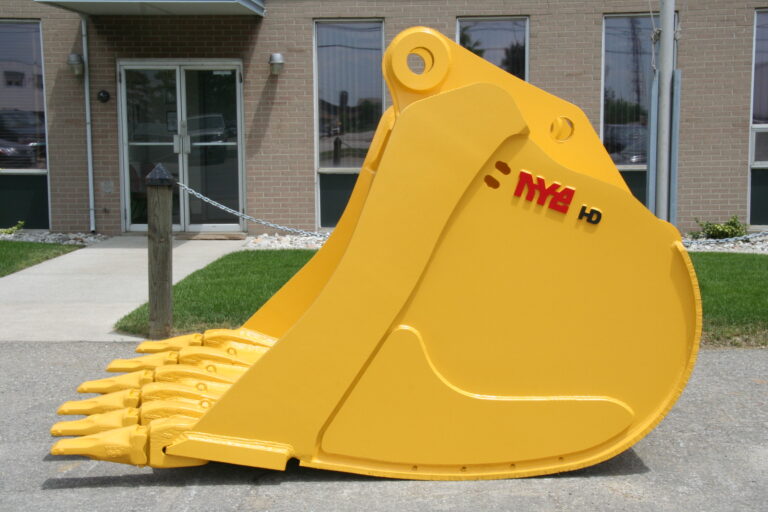

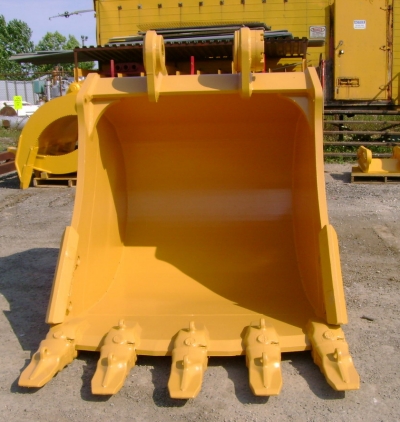

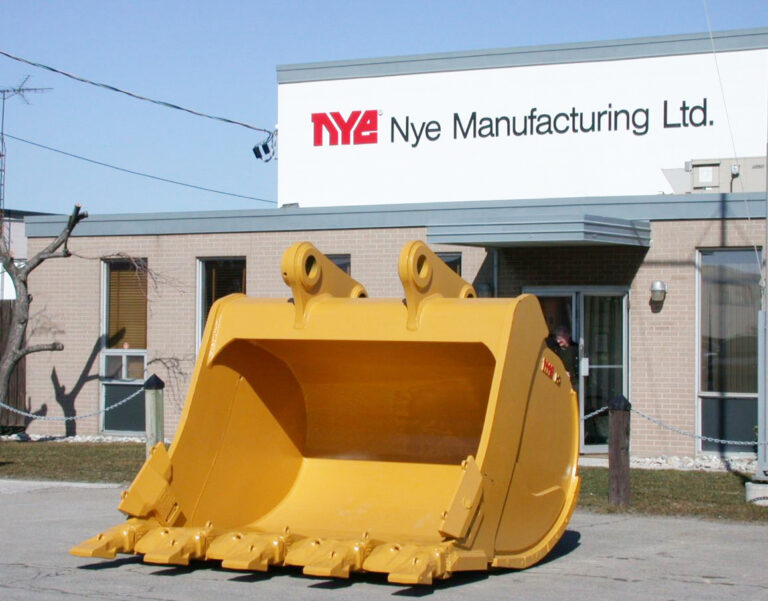

HD Bucket
- Customizable with semi-spade or full spade base edge.
- Wear straps as standard equipment.

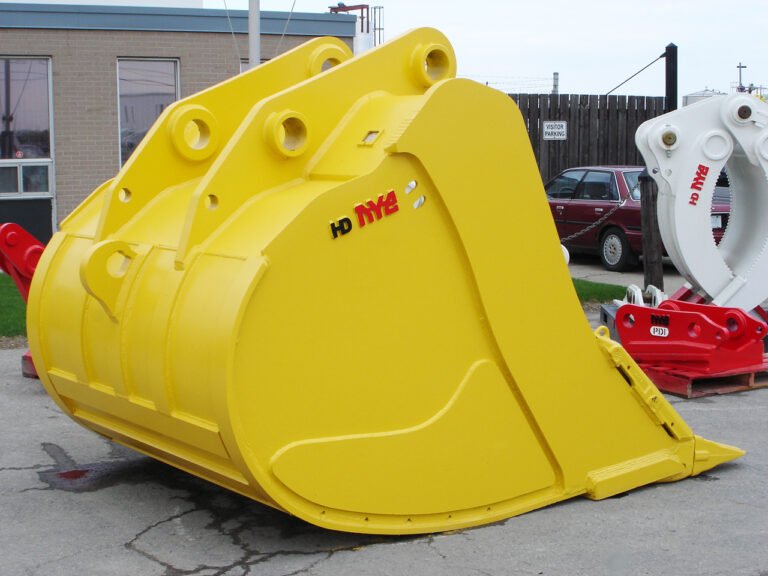

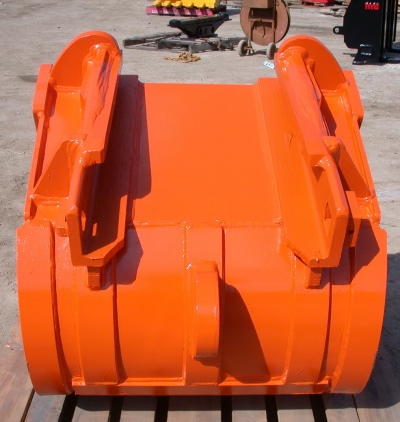

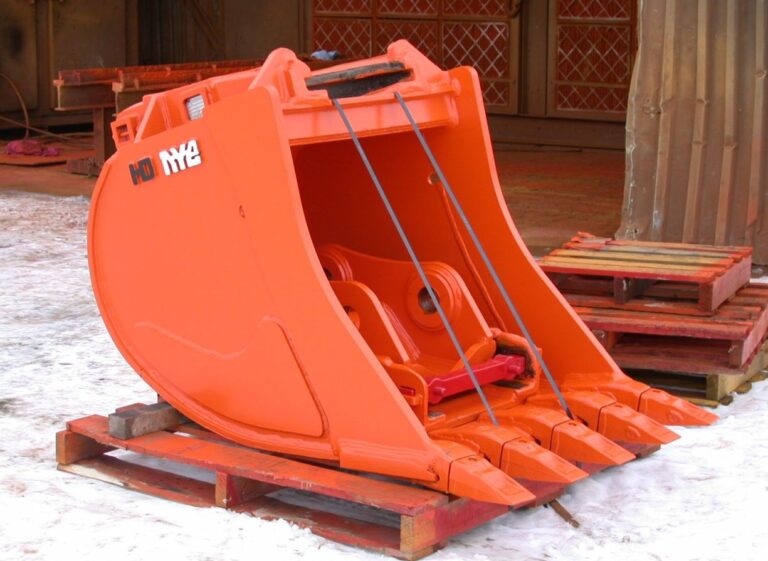

HD Bucket (Stealth Coupler Option)
- Designed and built to handle a wide variety of digging applications.
- Quickly couples and uncouples.

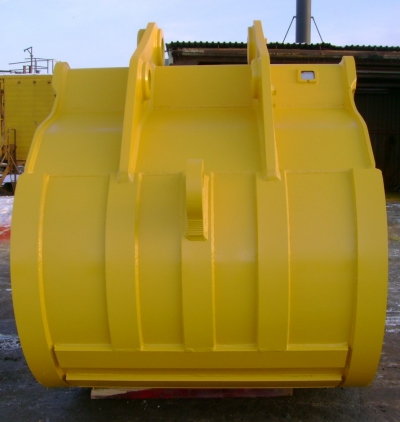

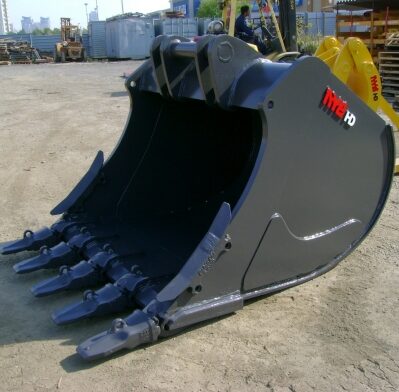

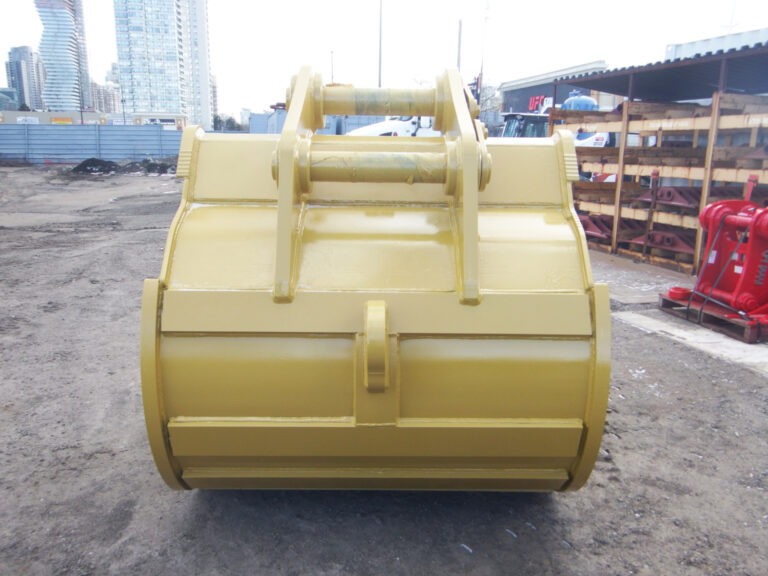

HD Bucket (Stealth Coupler Option)
- Shorter Pin to Point with no sacrifice to capacity.
- Available in any width and with the choice of any teeth and adapters.
Features
- Nye Heavy Duty (HD) buckets are built with extra thick materials in all wear areas, designed for severe rock and shale conditions where extra impact and wear resistance is required.
- Designed with extra thick material for long life under tough conditions.
- Optional depressed center semi-spade lip*. – Available for all QC types.
Specifications
| Carrier | Model | Width mm [in] | Weight kg [lb] |
|---|---|---|---|
| 16 - 24 t | 20EX1 | 914 [36] | 1,021 [2,250] |
| 22 - 28 t | 25EX1 | 1,067 [42] | 1,225 [2,700] |
| 36 - 38 t | 30EX1 | 1,219 [48] | 1,429 [3,150] |
| 35 - 50 t | 40EX1 | 1,372 [54] | 2,404 [5,300] |
| 48 - 60 t | 55EX1 | 1,524 [60] | 3,900 [8,600] |
| 59 - 90 t | 70EX1 | 1,829 [72] | 4,445 [9,800] |
