Tilt Buckets
Nye Tilting Ditch Buckets have been continually improving over the last four decades. Our latest designs now feature a super strong one-piece QT100 front beam and twin double-acting hydraulic cylinders mounted low on the back where they belong, not on top or inside a compartment. Most models feature bolt-on edges and an onboard hydraulic control valve that provides load holding / relieving, speed control, and hose management functions.
Download Spec Sheet

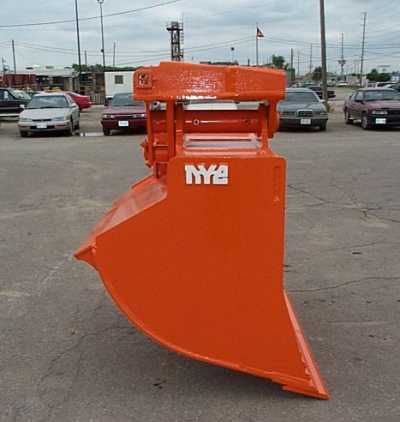

Tilt Buckets
Heavy-duty pin-on and quick coupled versions available for all coupler types. Hardened pins and aluminum bronze bushings throughout. Rear mounted cylinders are protected from damage.
20TL7 Tilt Bucket
- High-pressure double-acting tilt cylinder.
- Over size, flame hardened pivot pins.
09TL5 Tilt Bucket
- Performs light to moderate duty ditch cleaning, grading and brush clearing applications.
- Variable angle from 45° Left to 45° Right (90° total)

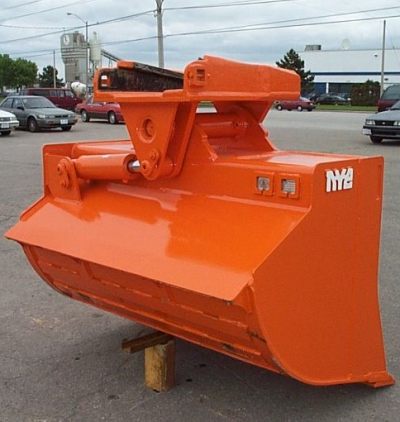

12TL6 Twin Cylinder Tilt Bucket
- Twin Cylinder.
- New multi-function bucket control valve.
Multifunction Valve
- Fits on any tilt bucket single or dual cylinder.
- Multi-function bucket control valve.
- Load holding prevents bucket movement.
- Pressure relief prevents cylinder damage.

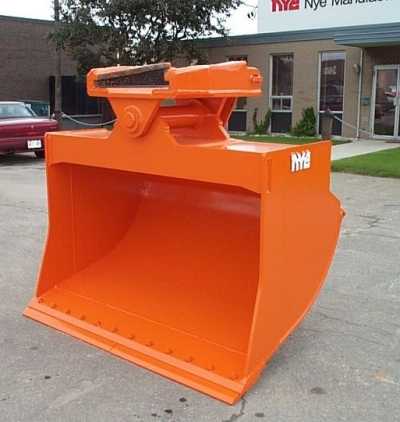

60" Q3 Tilt Bucket
- Ideal for slope work, grading, and ditching.
- Available in a wide variety of widths and sizes.

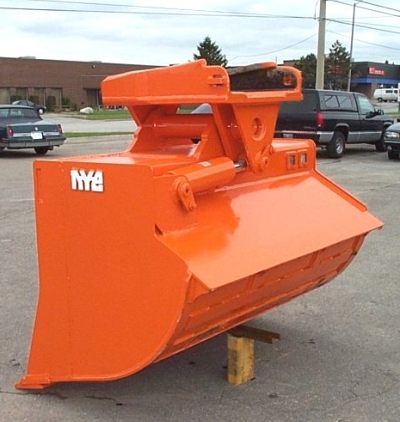

Tilt Bucket
- High-pressure double-acting tilt cylinder.
- Over size, flame hardened pivot pins.
- Cylinder is protected from damage.
Features
Control valve features:
- – Load holding (bucket stays put).
- – Pressure relief (prevents cylinder damage).
- – Speed control (prevents slamming).
- – Hose management (multiple configurations left, right or one on each side).
Specifications
| Carrier [x1000lbs] | Model | Capacity (Heaped) | Weight | Width (A) | Pin to Point (B) | Working Pressure (C) | Base Edge (D) | Bolt-On Edge (E) |
|---|---|---|---|---|---|---|---|---|
| 05 - 07 t [11 - 15] | 06TL7 | 0.2 [0.3yd3] | 380 [840] | 1219 [48] | 1018 [40] | 172 [2500psi] | 1/2" X 4" | 5/8" X 6 1/2" |
| 07 - 11 t [15 - 24] | 09TL7 | 0.4 [0.5yd3] | 570 [1260] | 1219 [48] | 1071 [42] | 172 [2500psi] | 3/4" X 6" | 1" X 10" |
| 09 - 14 t [20 - 31] | 12TL7 | 0.6 [0.8yd3] | 845 [1860] | 1524 [60] | 1290 [51] | 207 [3000psi] | 1" X 8" | 1" X 10" |
| 16 - 24 t [35 - 53] | 20TL7 | 1.0 [1.4yd3] | 1360 [3000] | 1676 [66] | 1525 [60] | 241 [3500psi] | 1 1/4" X 12" | 1" X 11" |
| 26 - 38 t [57 - 84] | 30TL7 | 1.4 [1.9yd3] | 2020 [4450] | 1676 [66] | 1666 [66] | 241 [3500psi] | 1 3/4" X 12" | 1" X 11" |
| 35 - 50 t [77 - 110] | 40TL7 | 2.3 [3yd3] | 2965 [6540] | 1829 [72] | 1998 [79] | 241 [3500psi] | 2" X 15" | 1 1/8" X 13" |
- Specifications subject to change
- Custom widths and capacities available
- Units of Measure: kg [lb], mm [in] and m3 [yd3], bar [psi]
