CCS Cross Cutting Shear
The Nye CCS heavy duty Cross Cutting Shear is our solution for high production log cross-cutting operations under the most demanding conditions.
The CCS features a profiled AR500 main cutting blade with a convex edge for maximum strength and toughness. This is the same CNC sculpted full-convex edge used on our premium SHX compound blade stump harvesters.
Dual AR400 anvils provide a bypass type striking surface for the blade, making quick work of large logs, stumps and roots while protecting the edge.
The replaceable AR400 teeth and CNC contoured piercing tip are welded-in, so they won’t fall out and damage grinders and downstream equipment.
Nye CCS shears are easy to install, safe, silent to operate and available in Direct Pin, Pin Grabber and Quick Coupler versions.
BUILDING NYE’S CROSS CUTTING SHEAR
- Heavy Duty hydraulic brace.
- Advanced blade edge geometry.
- Wide Opening allows a clean purchase from any angle.
- Pin-on versions machine dedicated.
|16 - 24 t||CCS200||1,245 ||1,477 [3,250]|
|22 - 28 t||CCS250||1,397 ||1,625 [3, 575]|
|26-38 t||CCS350||1, 587 ||1, 723 [3, 800]|
|35 -50 t||CCS450||1,727 ||1,890 [4,160]|
|48 -60 t||CCS600||1,905 ||2,379 [5,235]|
- Specifications subject to change

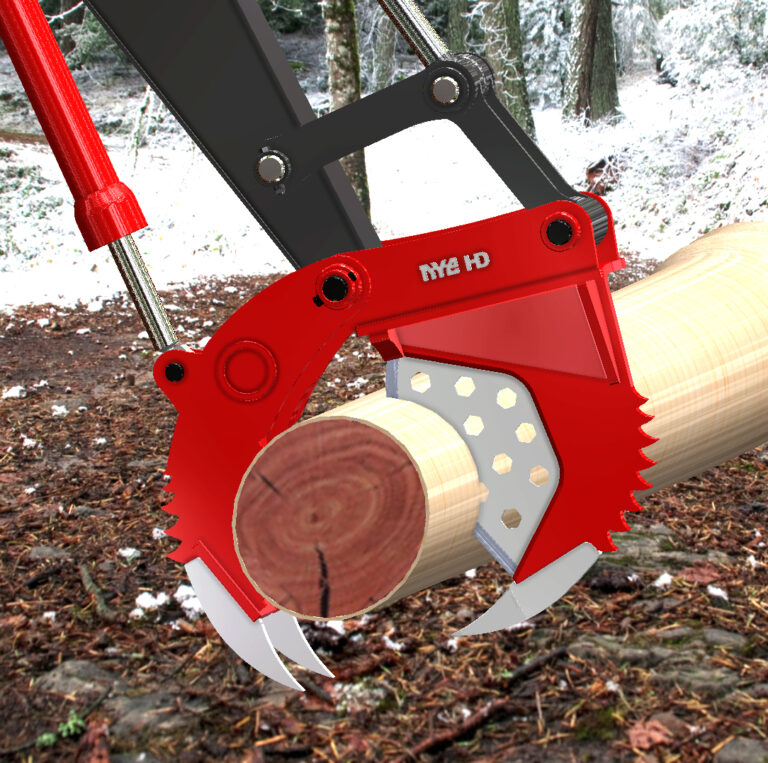

- CCS350 Model Shown
- Units of measure: kg [lb] and mm [in]
