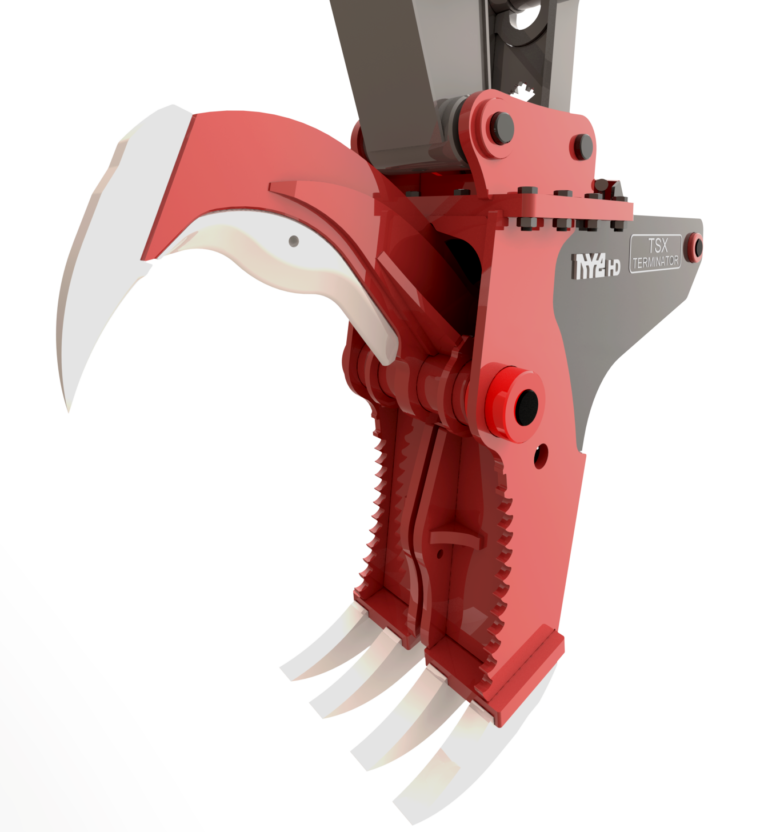

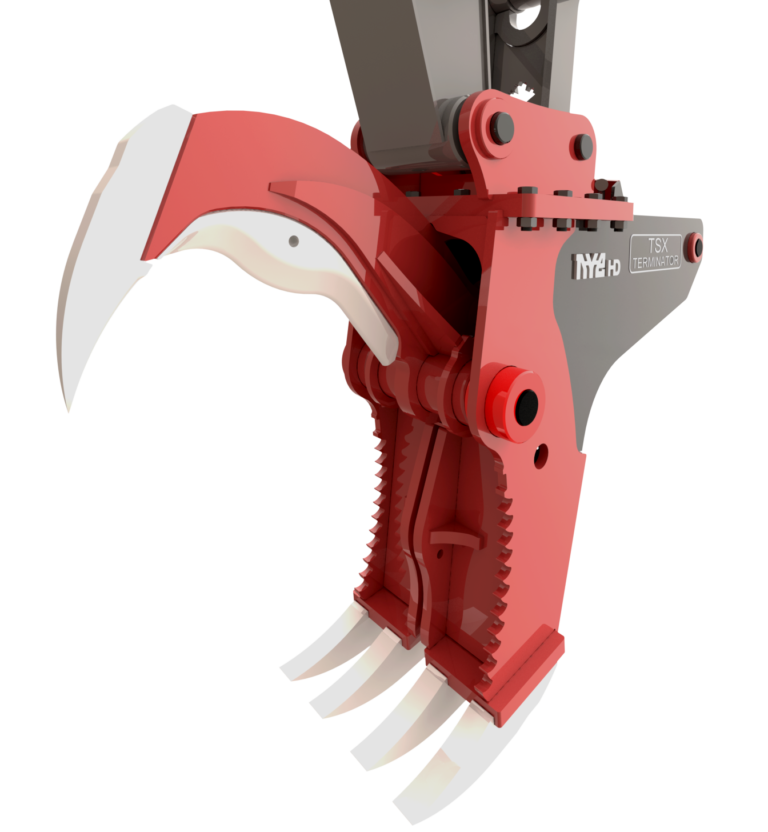

TSX Stump Harvesters

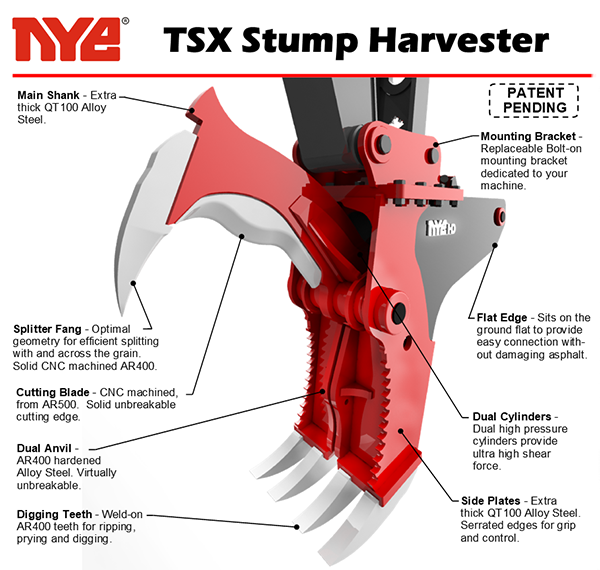

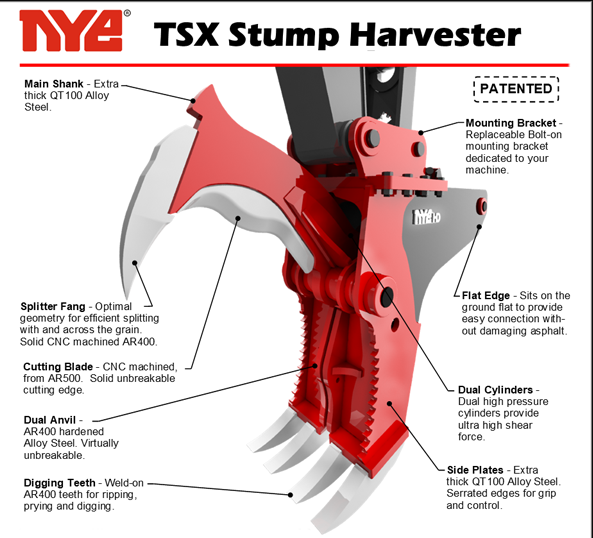

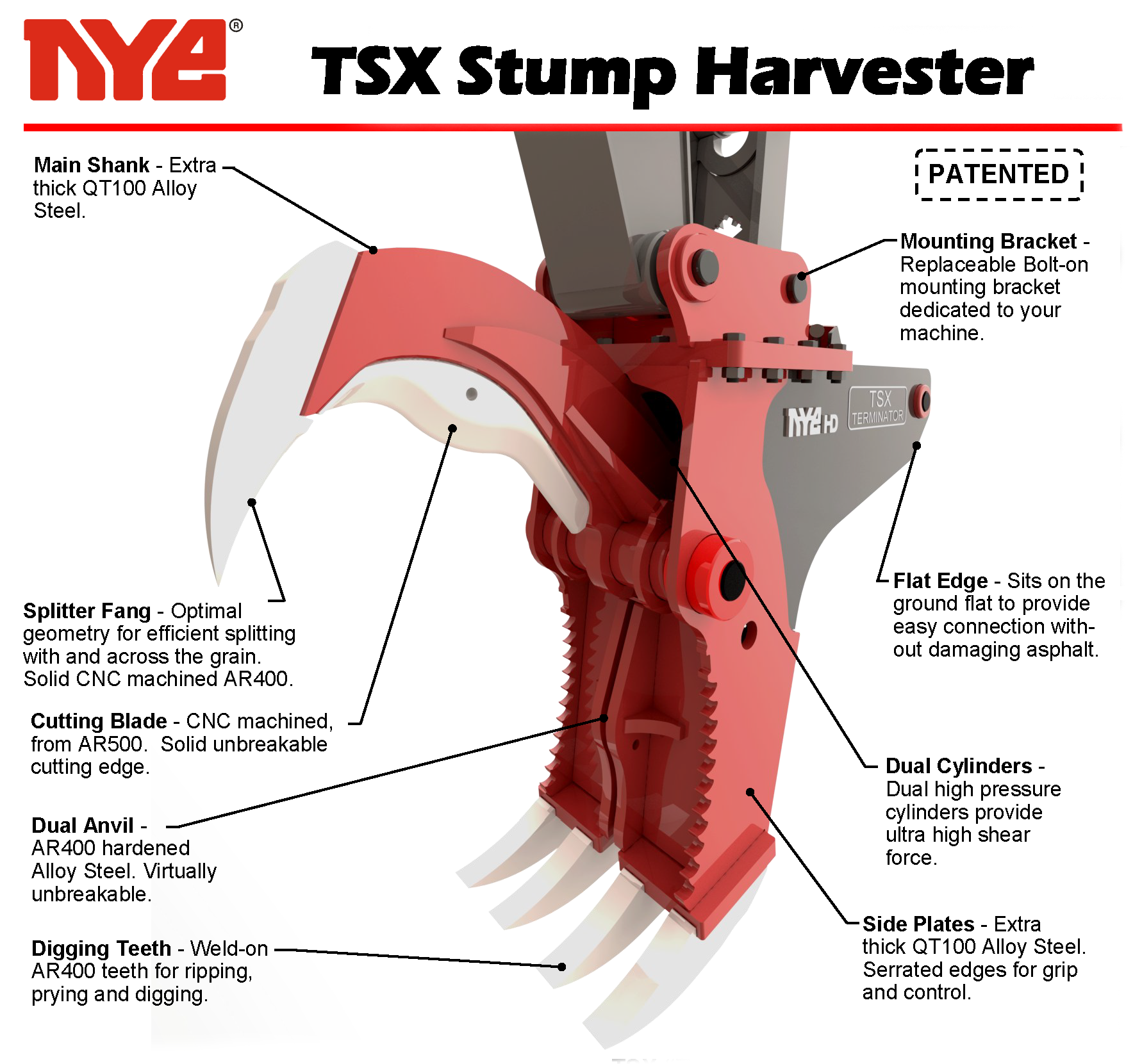

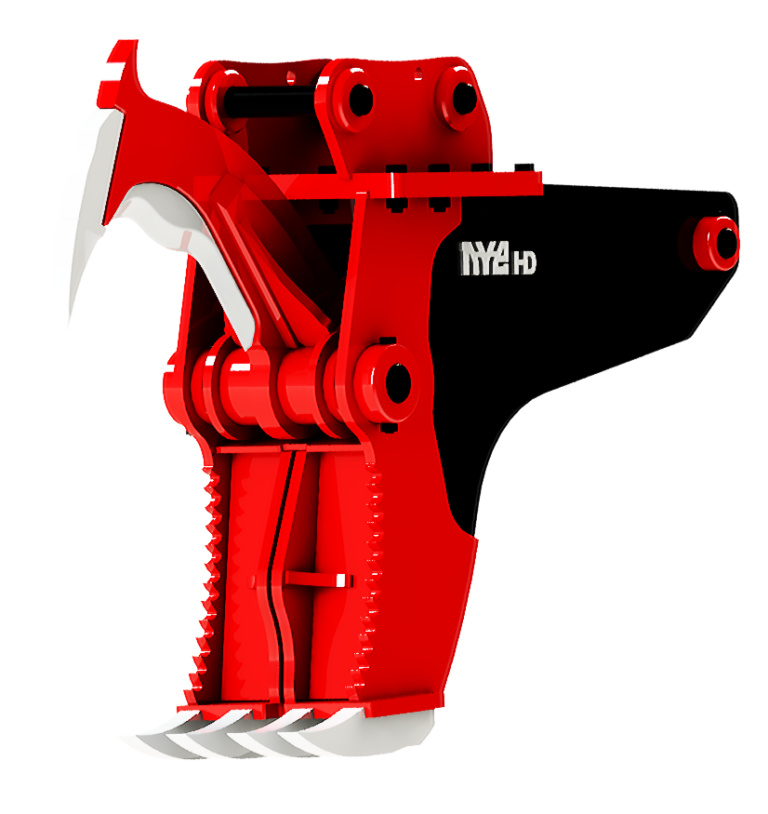

TSX “Terminator” Hydraulic Stump Harvester, with heavy-duty blade, fang, and anvil geometry taken from our proven SHX design. The TSX gives high performance combined with self-contained mounting that does not interfere with existing thumbs and stick mounted equipment.
The AR400 piercing tip grubbing teeth are virtually indestructible, easily trashing the most stubborn oak and wet cypress stumps. All teeth are welded-in, so they can’t fall out and damage grinders and other downstream equipment.
The blade uses the same CNC sculpted AR500 convex edge as used on our SHX Harvesters. You get the same heavy-duty blade technology, in an ultra powerful, twin cylinder hydraulic harvester.
Dual AR400 anvil plates provide an impacted striking surface for the blade, making quick work of processing and cross-cutting brush, logs, and roots.
Download Spec Sheet
Features
- Bolted top mount – no stick bracket required.
- Compatible with existing thumbs.
- Dual high-pressure cylinders – ultra high shear force.
- Extra wide jaw opening for large stumps.
- Proven SHX geometry, with solid CNC profiled blade and teeth.
Specifications

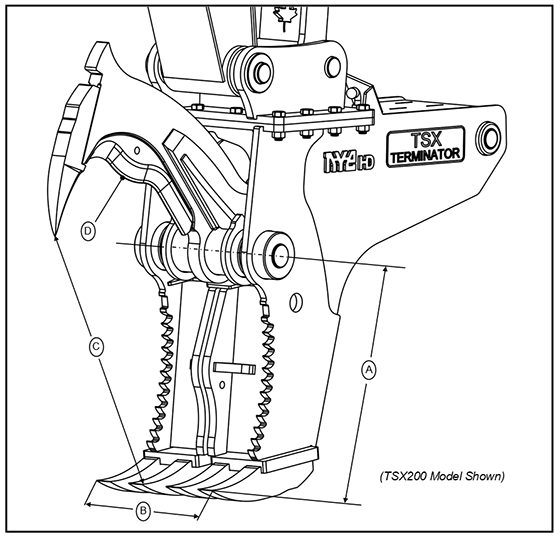

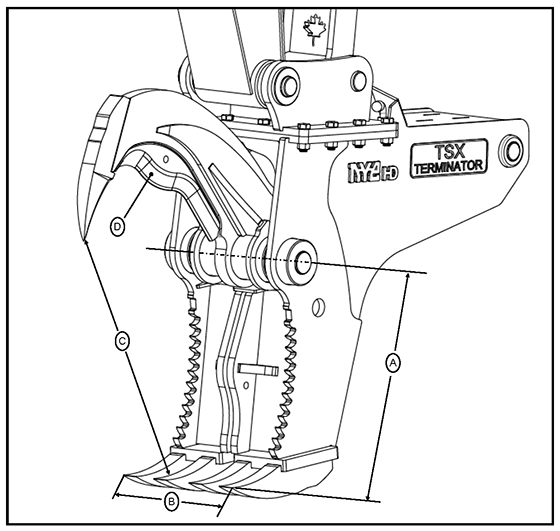

| CARRIER [x1000lbs] | MODEL | TEETH | WEIGHT | TIP RADIUS (A) | WIDTH (B) | LENGTH (C) | BLADE (D) | OPENING (E) |
|---|---|---|---|---|---|---|---|---|
| 13 - 24 t [29 - 53] | TSX200 | 2 1/2" Solid AR400 | 2,173 [4,790] | 970 [38] | 580 [23] | 996 [33] | 1 1/2" AR500 | 1,185 [47] |
| 22 - 38 t [49 - 84] | TSX350 | 3" Solid AR400 | 2,880 [6,350] | 1,157 [46] | 670 [26] | 1176 [46] | 2" AR500 | 1,360 [53] |
| 35 - 50 t [77 - 110] | TSX450 | 3 1/2" Solid AR400 | 3,588 [9,910] | 1,344 [53] | 684 [27] | 1,095 [43] | 2 1/2" AR500 | 2,000 [80] |
- Specifications subject to change
- Units of Measure: kg [lb] and mm [in]
- Weld-on replacement tips available
