Demolition Grapples

Nye DGX premium quality demolition grapples are built for the most severe high-speed demolition, rock, and waste handling applications. DGX grapples feature a fully-boxed structural design. The continuous QT100 stringers extend all the way from the tips to the bridge forming super strong quenched and tempered box-sections, arranged both vertically, for bending, and horizontally, for torsional loads.

DGX grapple tines are exposed through the back skin to provide extreme wear and impact resistance. Extra thick AR400 wear plates in strategic locations give long life and are easy to replace when needed.

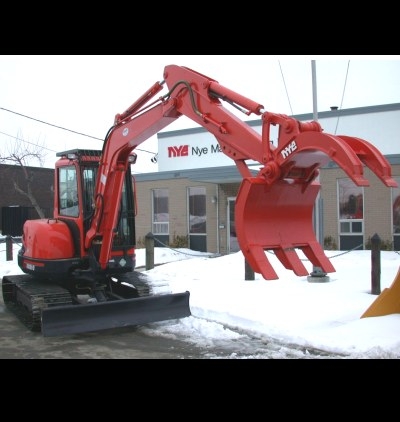

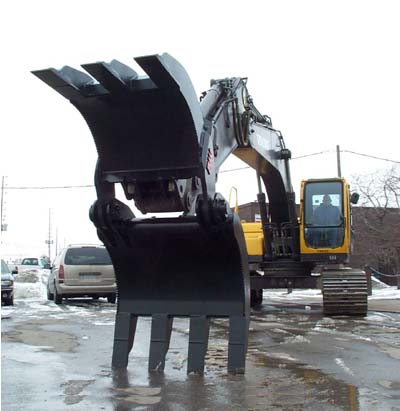

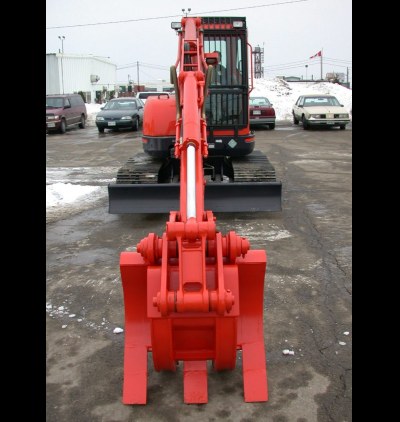

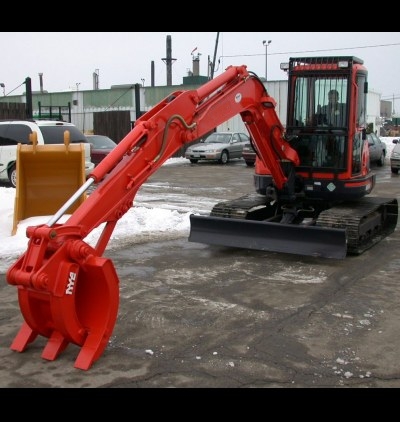

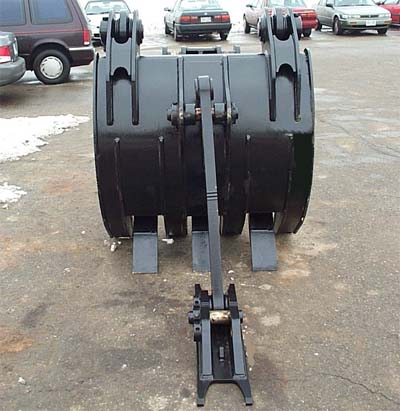

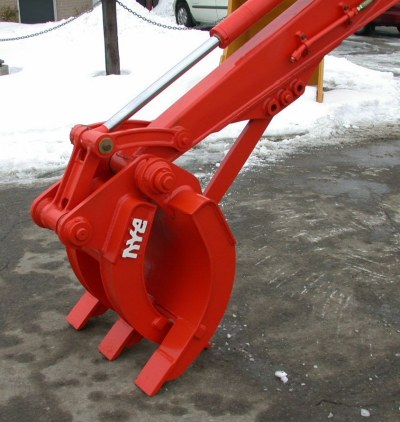

Nye fast acting DGX grapples are simple to install, no hydraulics are required. Pin-on, Quick Coupler and Pin-Grabber versions mount in place of the bucket, a three position bracket with a rigid brace welds to the underside of the excavator arm.

Continuous-tine design makes Nye DGX grapples the strongest in the world! Our superior performance under the worst conditions proves this claim.

Demolition Grapples
file icon Download Spec Sheet

Features

BUILDING THE WORLD’S BEST GRAPPLE

Features:

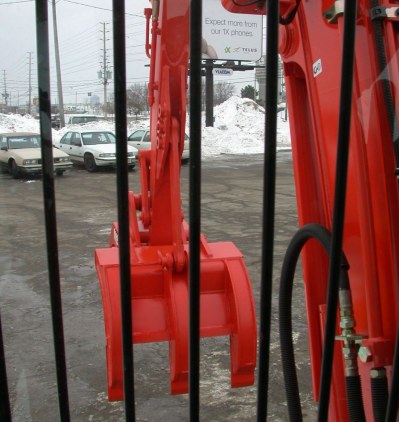

  • Simple installation; pins on in place of normal bucket, back brace welds to underside of dipper-stick.
  • No extra valves or hoses required.
  • Extra strong construction, designed for demolition work.
  • Weld-on hardened steel tips for long life.

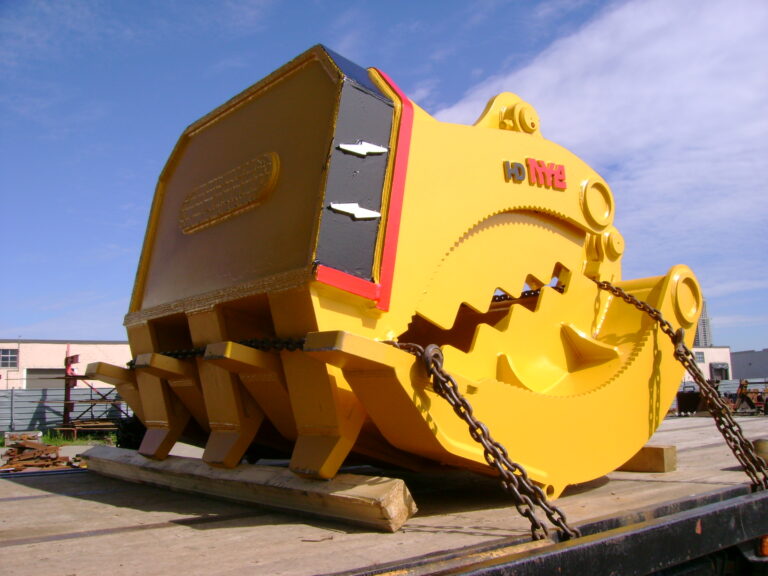

  • Optional Shear Plates; for extra wood waste and garbage crushing ability.
  • Quick-Coupler models available.

Specifications


CARRIER [x1000lbs]MODEL       WEIGHT       JAW CONFIG.THROAT DEPTH (A)MOVING JAW WIDTH (B)FIXED JAW WIDTH (C)MAX OPENING (D)OVERALL HEIGHT (E)
09 - 14 t
[20 - 31]		DGX125658 [1,450]2/31,133 [45]430 [17]850 [33]1,778 [70]1,197 [47]
DGX127771 [1,699]3/4783 [31]1,102 [43]
13 - 17 t
[29 - 37]		DGX155835 [1,843]2/31,308 [51]580 [23]980 [39]2,032 [80]1,427 [56]
DGX1571,045 [2,303]3/4856 [34]1,205 [47]
DGX1591,195 [2,635]4/5992 [39]1,390 [55]
16 - 24 t
[35 - 53]		DGX2051,046 [2,307]2/31,399 [55]650 [26]1,100 [43]2,240 [88]1,527 [60]
DGX2071,251 [2,758]3/4900 [35]1,270 [50]
DGX2091,576 [3,476]4/51,165 [46]1,505 [59]
22 - 28 t
[48 - 62]		DGX2551,333 [2,938]2/31,501 [59]714 [28]1,218 [48]2,346 [92]1,638 [64]
DGX2571,567 [3,454]3/4970 [38]1,370 [54]
DGX2591,765 [3,892]4/51,203 [47]1,662 [65]
26 - 38 t
[57 - 84]		DGX3551,716 [3,784]2/31,596 [63]746 [29]1,268 [50]2,588 [102]1,742 [69]
DGX3572,158 [4,758]3/41,124 [44]1,588 [63]
DGX3592,432 [5,361]4/51,481 [59]1,723 [68]
35 - 50 t
[77 - 110]		DGX4552,439 [5,377]2/31,800 [71]845 [33]1,436 [57]2,824 [111]1,967 [77]
DGX4573,222 [7,103]3/41,271 [50]1,795 [71]
DGX4593,819 [8,420]4/51,568 [62]2,028 [80]
48 - 60 t
[106 - 132]		DGX6053,083 [6,797]2/31,907 [75]914 [36]1,552 [61]2,861 [113]2,091 [82]
DGX6073,908 [8,616]3/41,387 [55]1,959 [77]
59 - 90 t
[130 - 198]		DGX8553,974 [8,761]2/32,093 [82]982 [39]1,667 [66]2,942 [116]2,315 [91]
DGX8575,050 [11,134]3/41,492 [59]2,107 [83]
89 - 125 t
[196 - 241]		DGX12556,167 [13,595]2/32,444 [96]1,038 [41]1,771 [70]3,453 [136]2,709 [107]
DGX12576,481 [14,289]3/41,631 [64]2,357 [93]
150 - 200 t
[330 - 440]		DGX200511,807 [26,031]2/32,709 [107]1,208 [48]2,104 [83]3,718 [146]2,959 [116]
DGX200712,387 [27,308]3/41,700 [67]2,400 [94]

  • Specifications subject to change

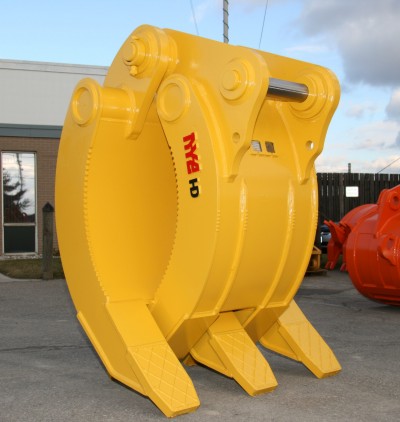

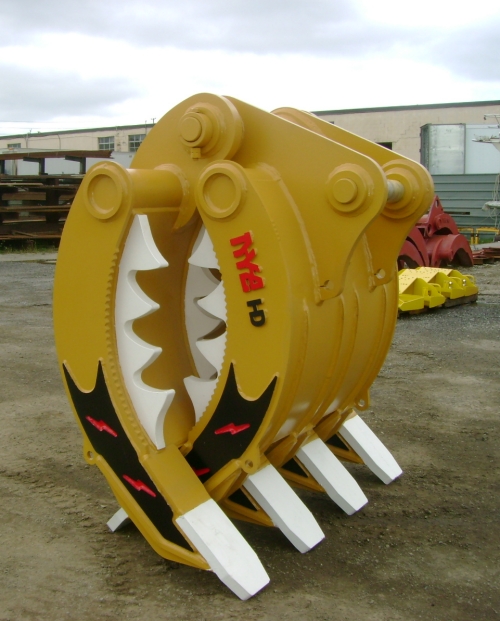

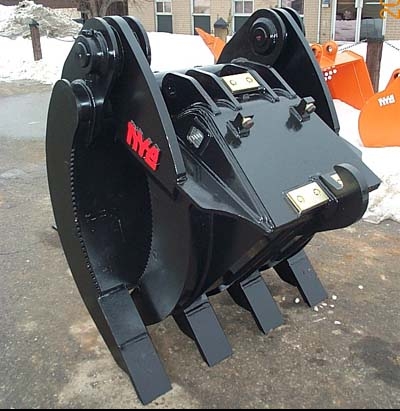

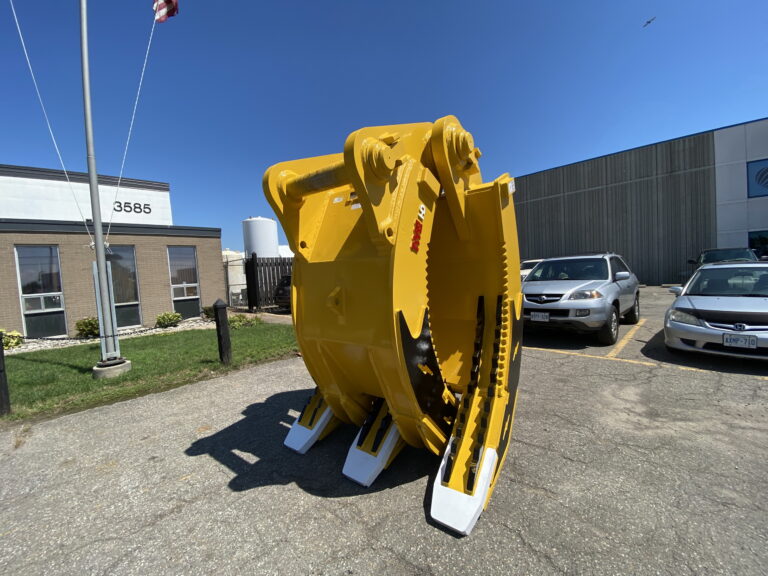

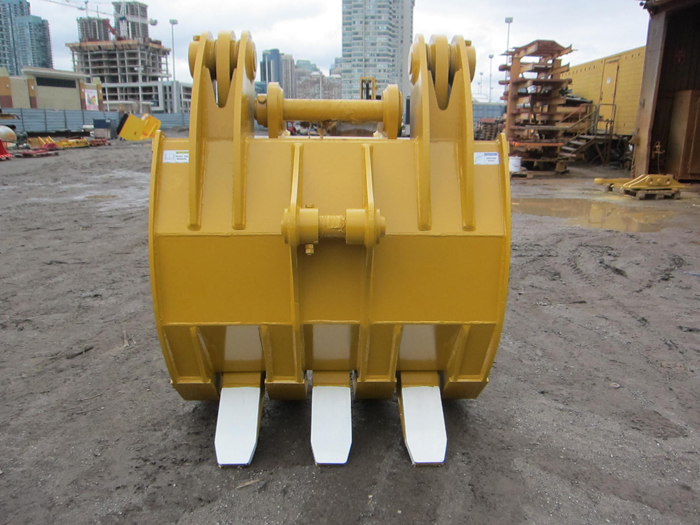

  • DGX457AK Model Shown (with optional abrasion kit)
  • Units of measure: kg [lb] and mm [in]
