Rotating Rock Grapples
Nye builds a wide range of custom heavy-duty rotating rock, demolition and log grapples, all designed for the most severe applications. Fully boxed QT100 tines give maximum strength and durability without excessive weight. We offer full hydraulic rotation and knock around types in either two-pin fully positioned or single-pin cardanic yoke configurations.
Download Spec Sheet
Rock Grapple
For picking and placing riprap and armor stone. Continuous hydraulic rotation allows the operator to grip, flip, rotate and positon stones quickly and accurately.
30t. Rotating Rock Grapple
- Excavator mounted, continuous rotation, rock grapple.
- Designed to be used in the most severe applications.
- Primarily intended for picking and placing riprap and armor stone.
- Hydraulic synchronization.
- Free hanging suspension.

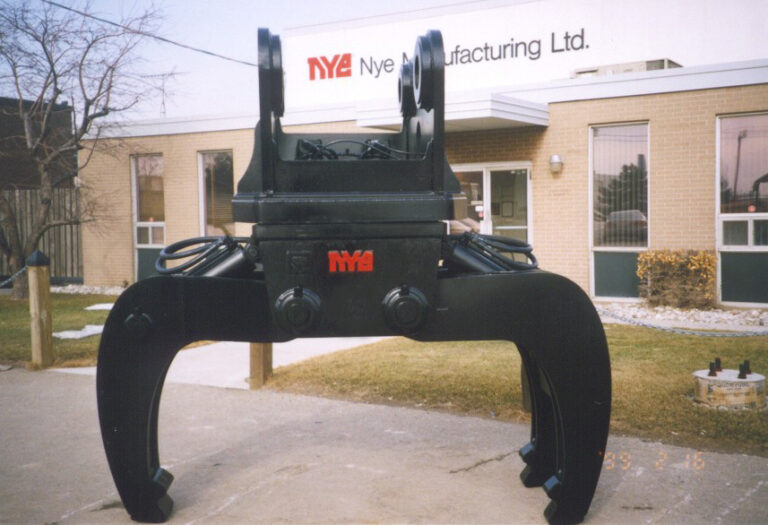

100t. Rotating Rock Grapple
- Super strong construction.
- Offered in positioned or dangling yoke configurations.
- Replaceable AR400 rock tips.
30t. Rotating Rock Grapple
- Super strong construction.
- Easy to install, safe and silent to operate.
- Available in Quick Coupler and Pin Grabber compatible versions.

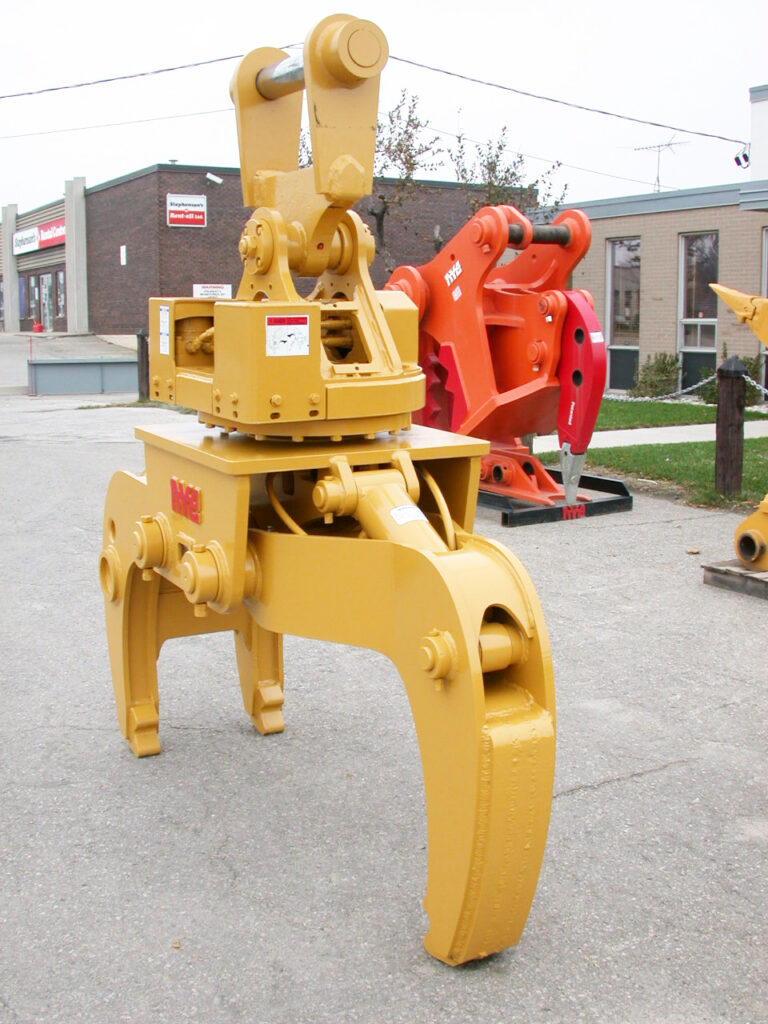

Rotating dangling Rock Grapple
- Formed tines made of QT100 steel, for lightweight and strength.
- Fully boxed for added rigidity.
- Continuous hydraulic rotator allows the operator to grip, flip, rotate and pull.
Features
- Heavy duty cylinders.
- Continuous 360 degree hydraulic rotation.
- Replaceable AR400 tips.
- Works well with OR without a coupler.
- Intersecting tips allow for fine grasping of uneven objects.
Specifications
| Carrier [x1000lbs] | Model | Max. Opening mm [in] | Weight kg [lb] |
|---|---|---|---|
| 16 - 24 t [35 - 53] | RRG200 | 1,257 [49,5] | 1,523 [3 350] |
| 22 - 28 t [48 - 62] | RRG250 | 1,359 [53,5] | 1,591 [3,500] |
| 26 - 38 t [57 - 84] | RRG350 | 1,422 [56] | 1,773 [3,900] |
| 35 - 50 t [77 - 110] | RRG450 | 1,511 [59,5] | 1,977 [4,350] |
| 48 - 60 t [106 - 132] | RRG600 | 1,600 [63] | 2,591 [5,700] |
