Nye SKD heavy-duty Skid Crusher grapples are built to sort, load, crush/compact wooden skids and demolition debris.

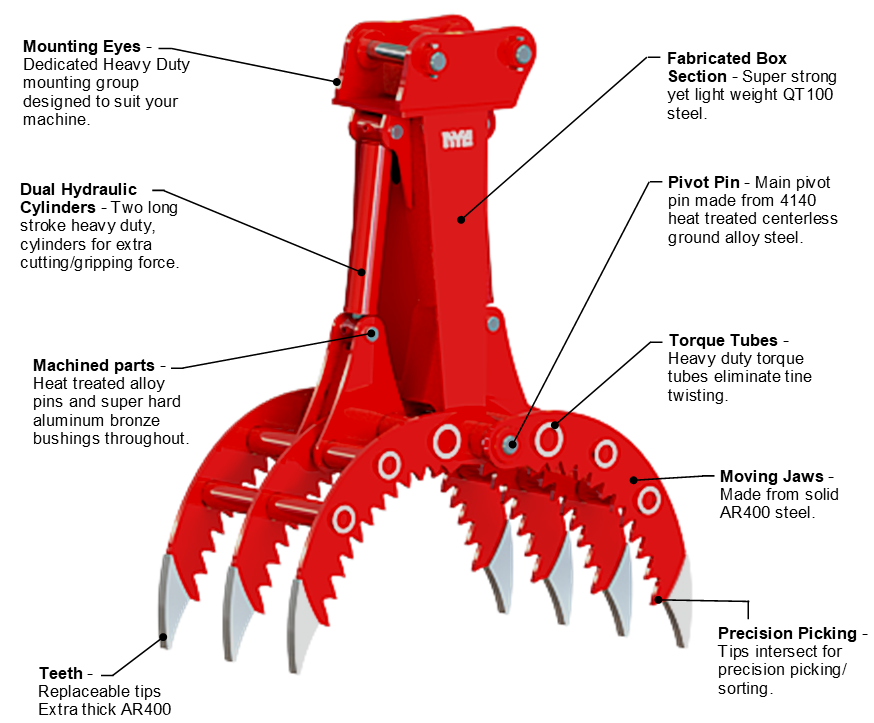

SKD crusher grapples feature a serrated structural tine design. The solid AR400 tines extend all the way from the tips to the hinge group forming super strong structure and are designed to provide extreme wear and impact resistance. Triple heavy-duty torque tubes resolve bending and twisting forces and keep the tines spaced for optimum crushing.
The tines are profiled with biomimetic teeth that effectively smash skids and debris into splinters. Extra thick AR400 tips provide long life and are easy to replace when needed. The tips are welded-on so they can not fall-off and damage down stream equipment.
Heavy-duty, long stroke cylinders provide smooth independent tine motion and extreme crushing forces for snapping wood and compacting materials. Optional cylinder rod guards are available.
Pin-on, Quick Coupler, Pin-Grabber and free-swinging versions are available. One auxiliary hydraulic circuit operates the cylinders. No weld-on stick bracket is required.
BUILDING NYE’S SKID CRUSHER
- Simple installation; pins on in place of normal bucket; No bracket and brace required.
- Extra strong construction, designed for efficient crushing work.
- Weld-on extra thick steel tips for long life.
- Optional cylinder rod guards available.
- Pin-on, Quick Coupler, Pin-Grabber and free swing versions available.
|CARRIER [x1000lbs]||MODEL||WEIGHT||JAW CONFIG.||THROAT DEPTH (A)||NARROW JAW WIDTH (B)||WIDE JAW WIDTH (C)||MAX OPENING (D)||HEIGHT (E)|
|16 - 24 t|
[35 - 53]
|SKD200||1,046 [2,307]||3/4||1,295 ||914 ||1,245 ||1,874 ||1,415 |
|22 - 28 t|
[48 - 62]
|SKD250||1,333 [2,938]||3/4||1,501 ||714 ||1,218 ||2,346 ||1,638 |
|26 - 38 t|
[57 - 84]
|SKD350||1,716 [3,784]||3/4||1,596 ||746 ||1,268 ||2,588 ||1,742 |
- Specifications subject to change

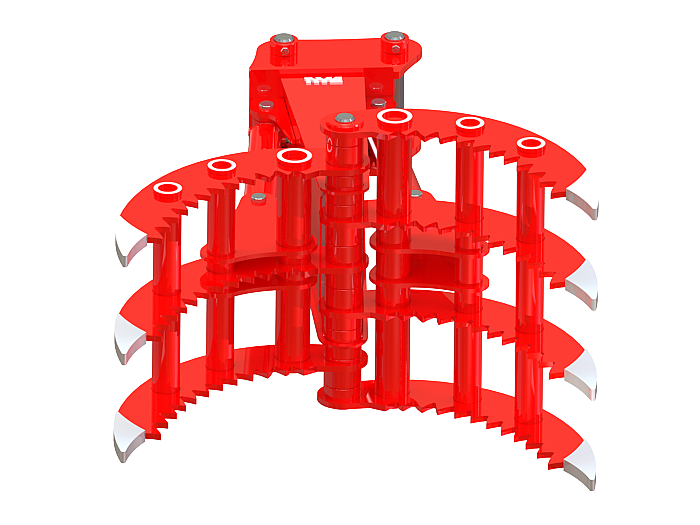

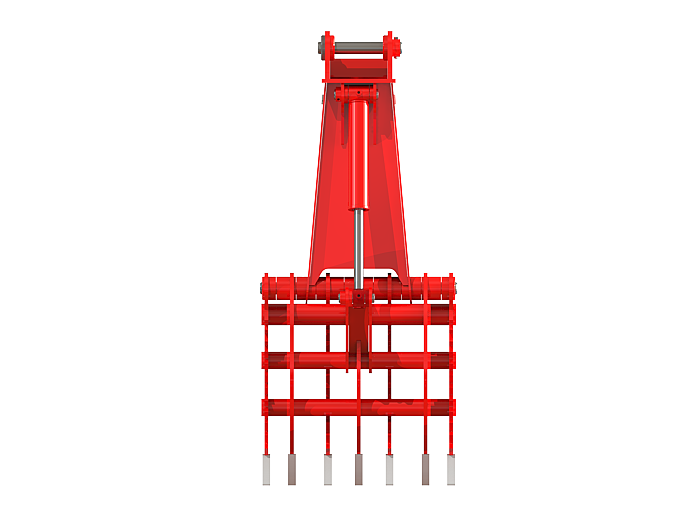

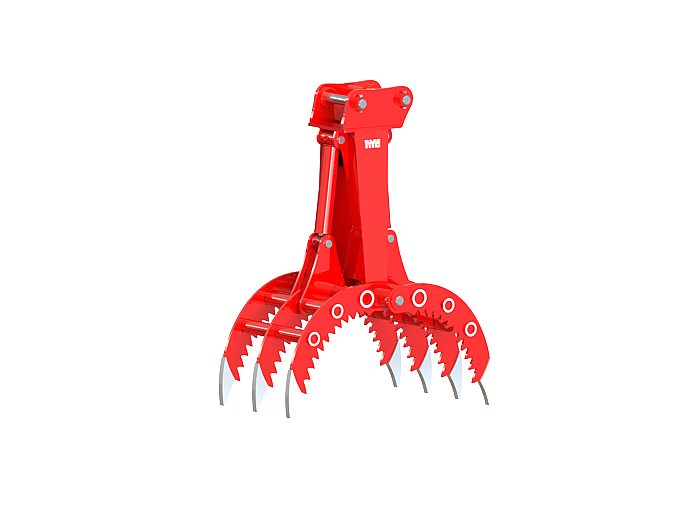

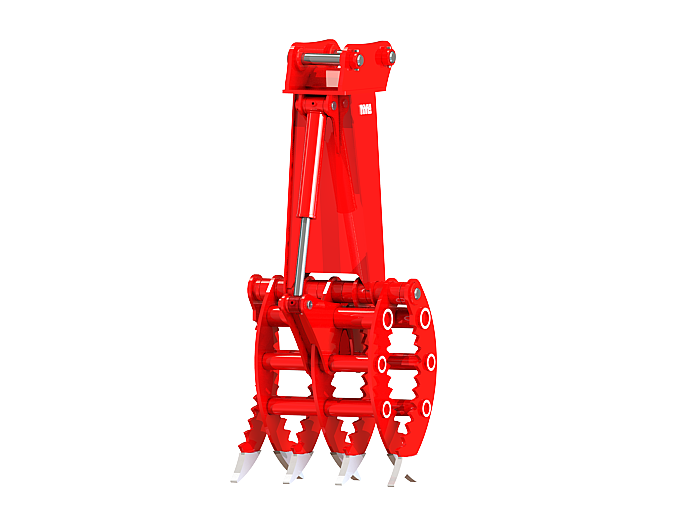

- SKD200 Model Shown
- Units of measure: kg [lb] and mm [in]
