Excavator Rippers

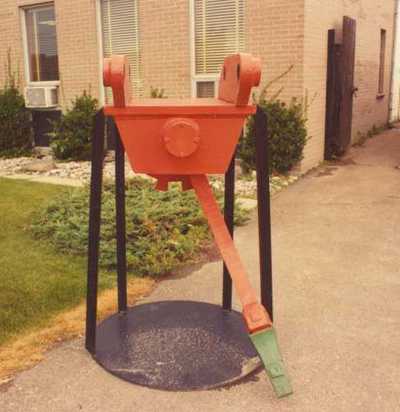

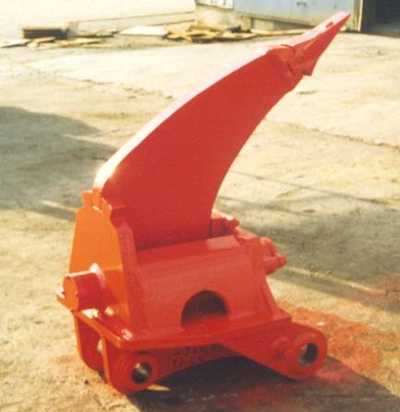

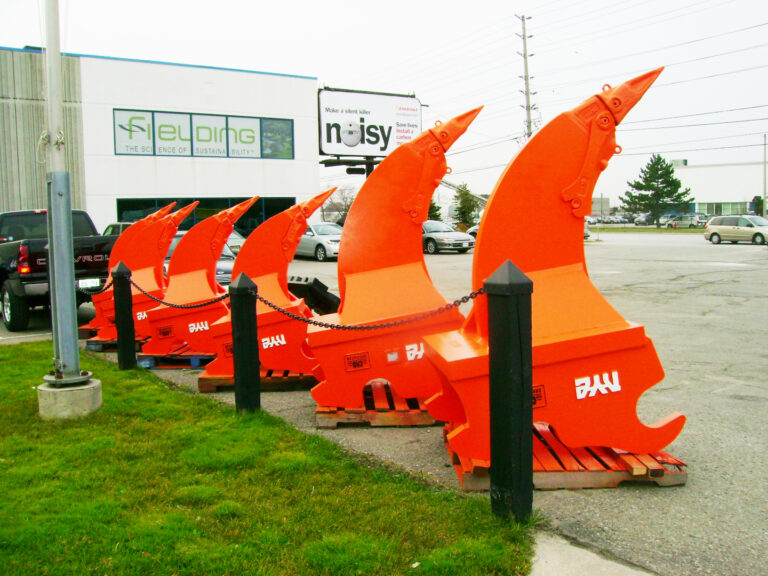

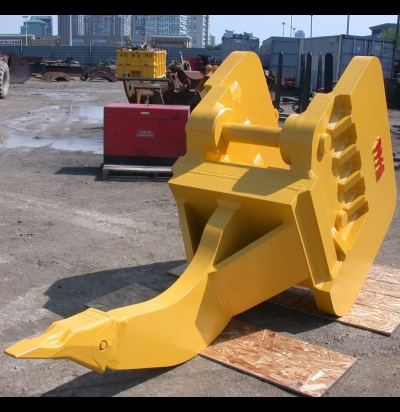

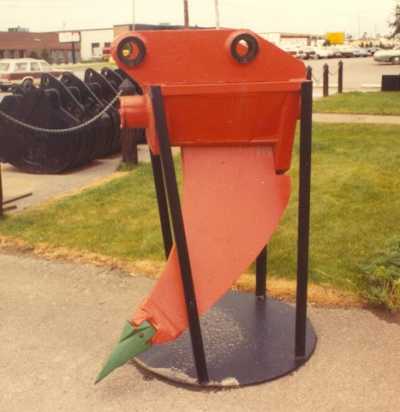

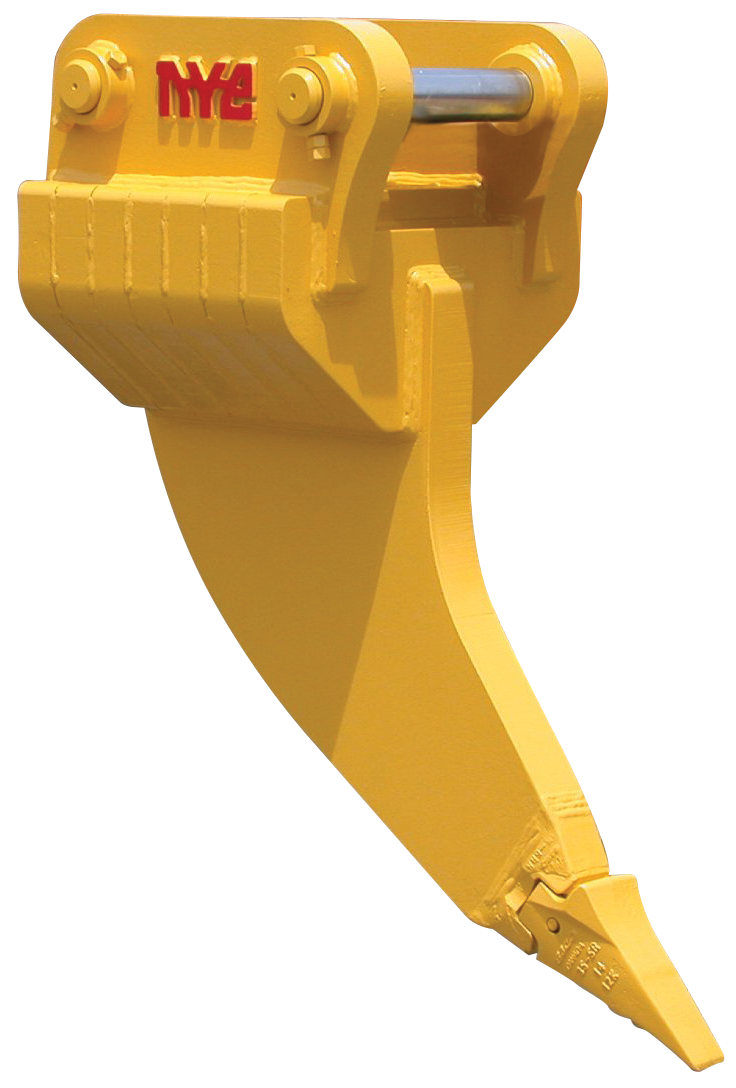

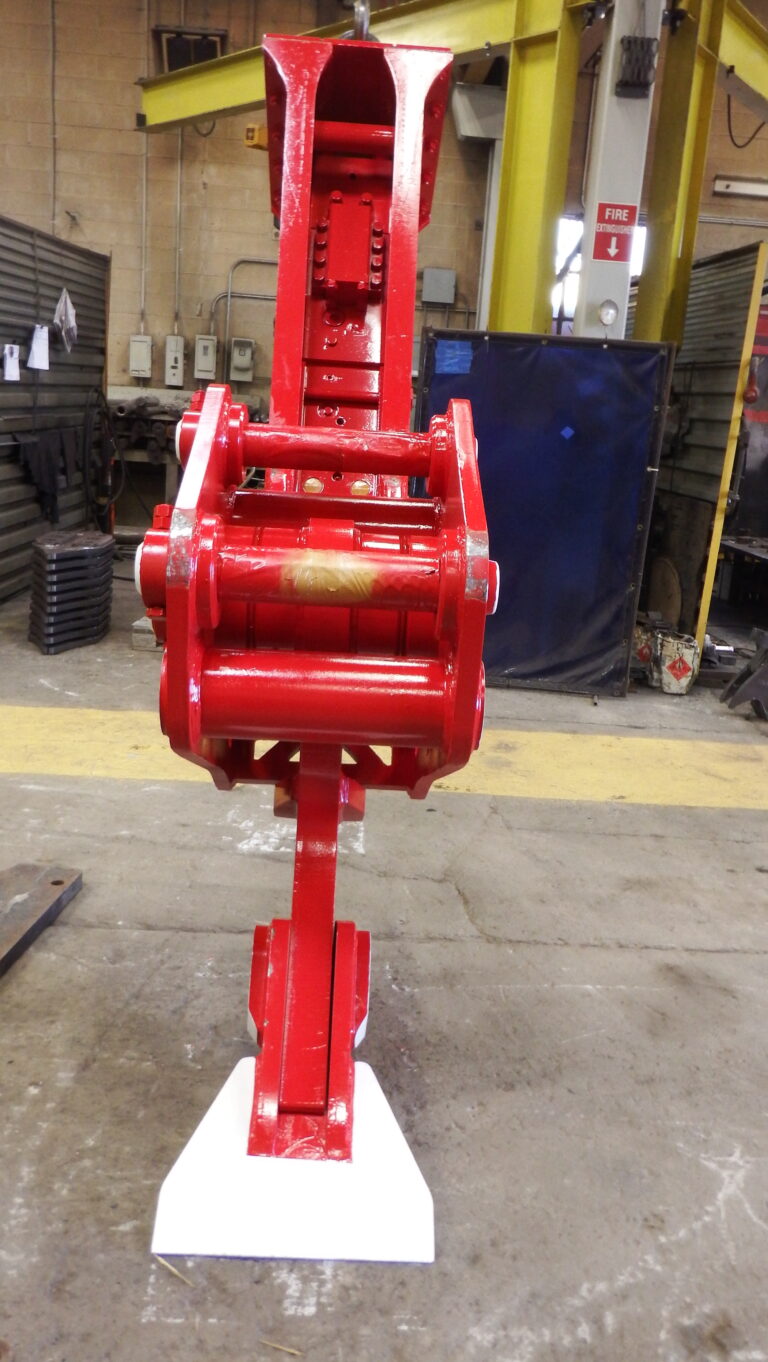

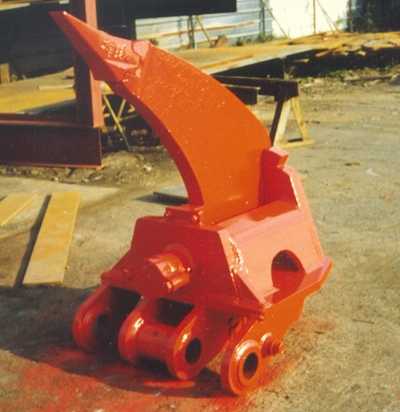

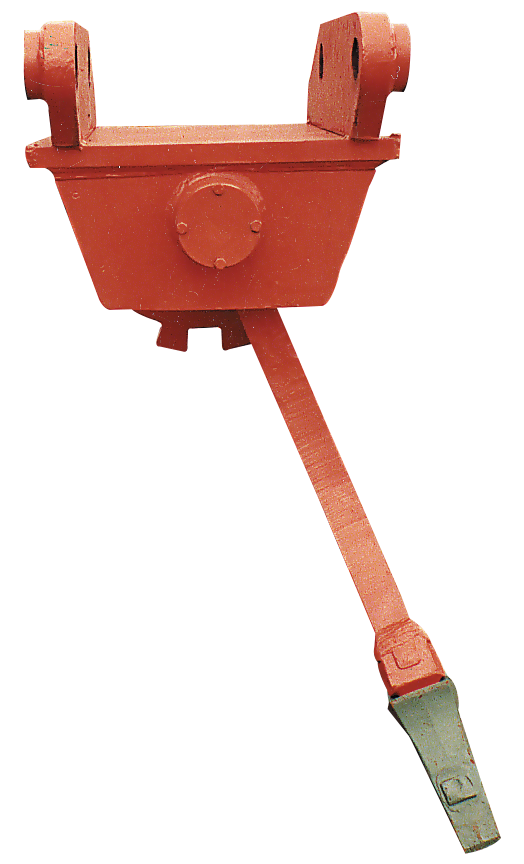

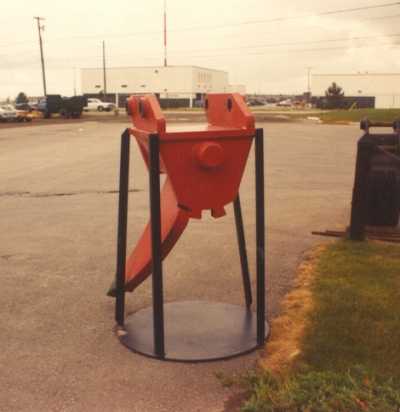

Nye has likely built more custom rippers for different machines than any other attachment manufacturer. Our extra heavy, virtually unbreakable rippers are available with various shank lengths, and tooth configurations, with ripping geometry optimized for frost, rock and shale. The “MOAR” is a new extra-heavy ripper concept designed to increase penetration. Our patented Swing-Tooth ripper was designed for trenching in shale and frozen ground, the shank is self-locking and requires no hydraulics. The RRW “Warhead” Trenching Ripper is our latest innovation, featuring a heavy frame with rear mounted side-fangs for deep trenching in bedrock, with no moving parts.
Download Spec Sheet

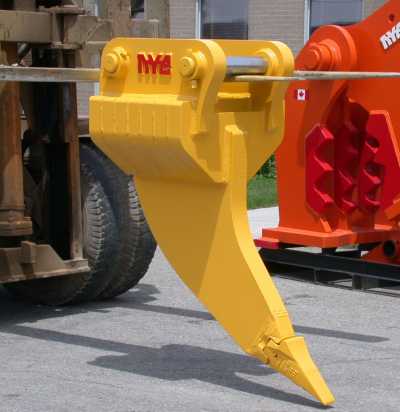

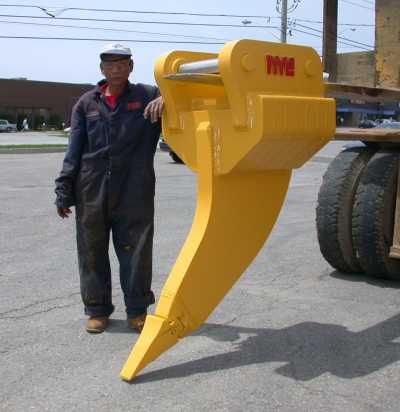

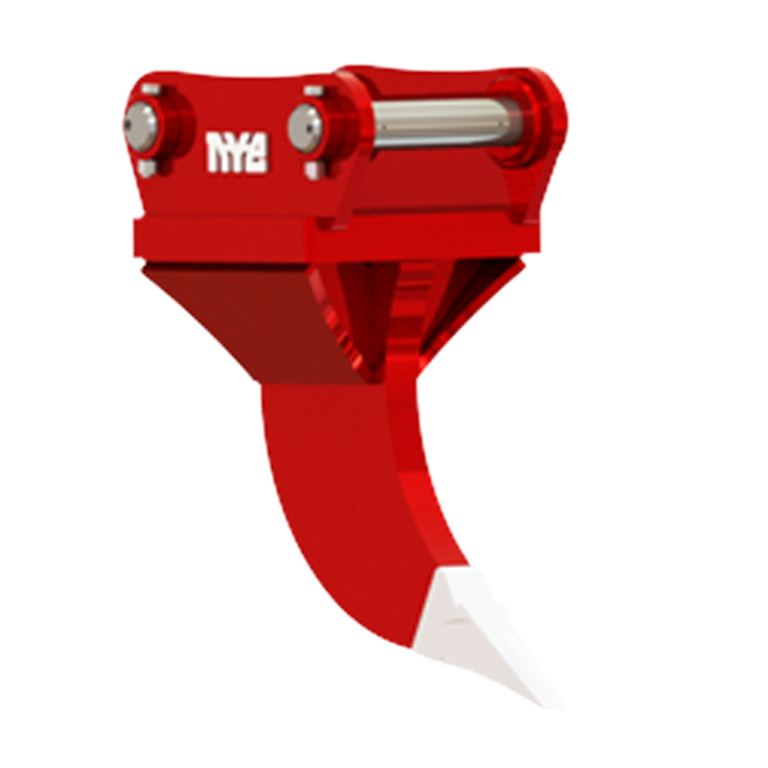

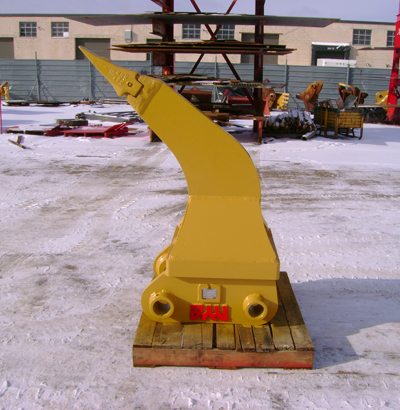

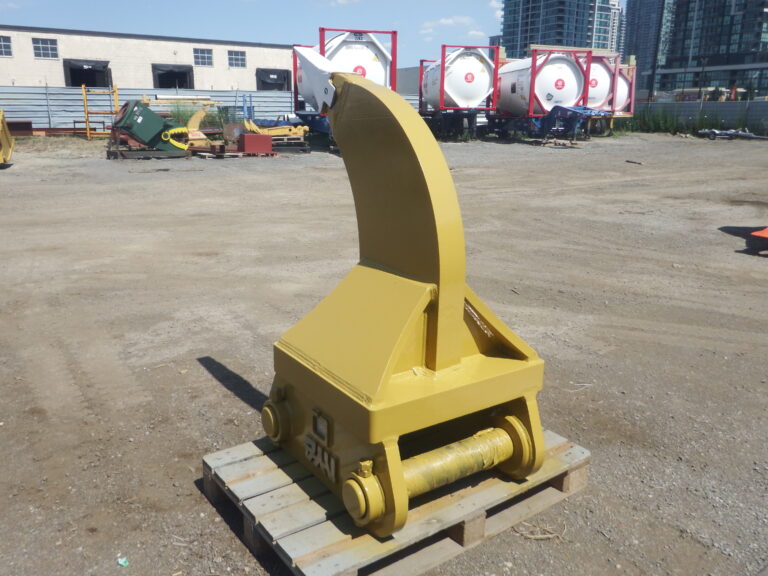

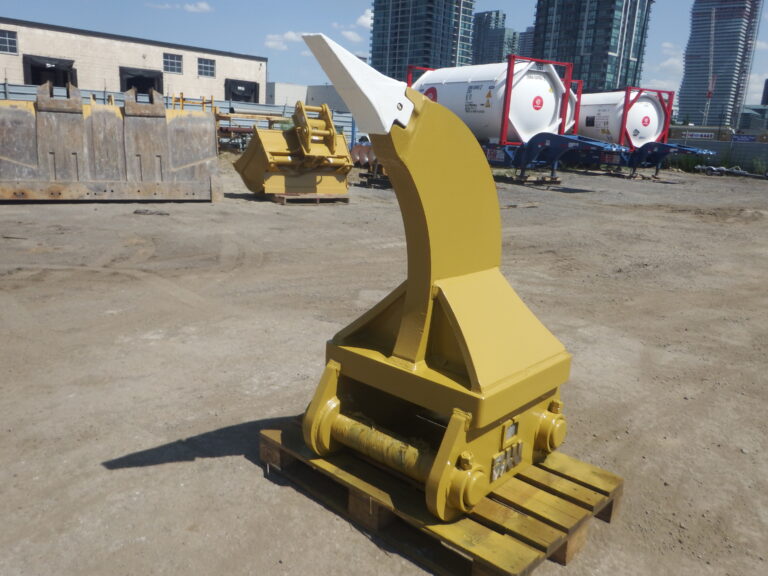

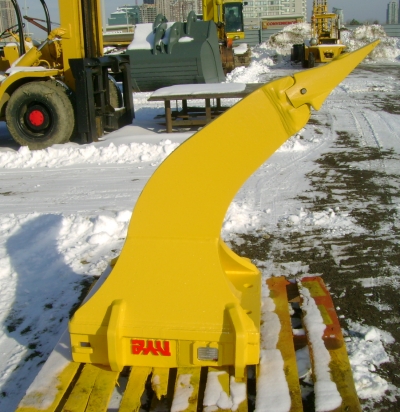

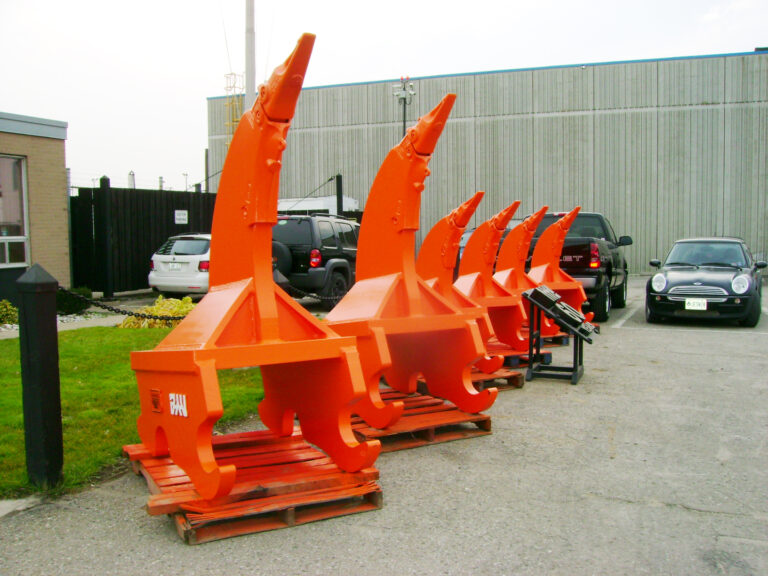

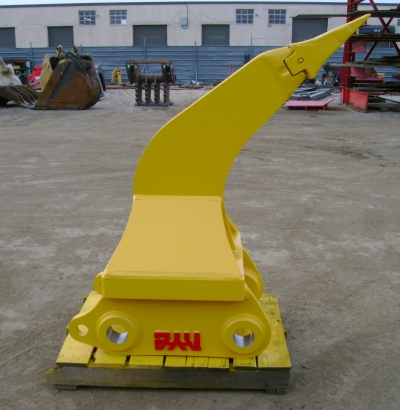

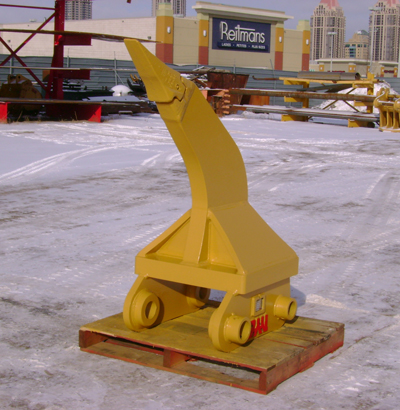

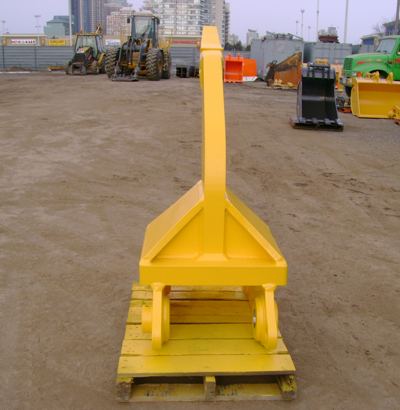

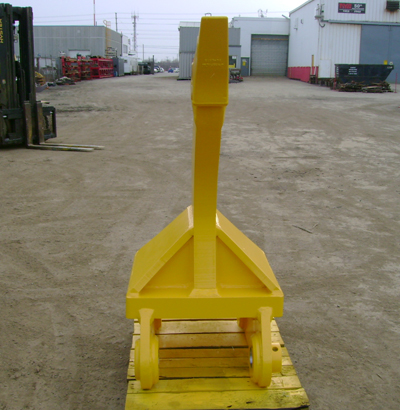

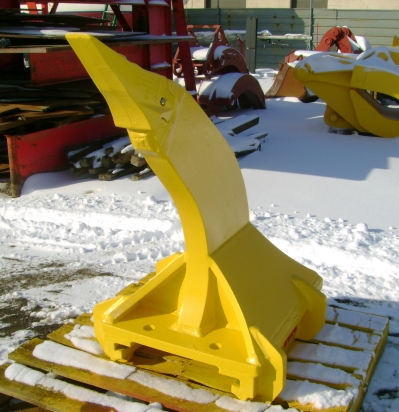

RP1 Frost Ripper
Super strong construction. Customers’ choice of tooth and tine length.

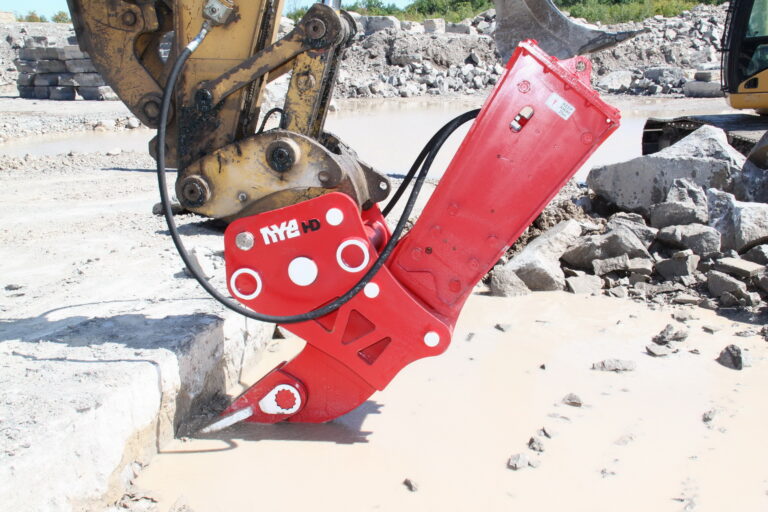

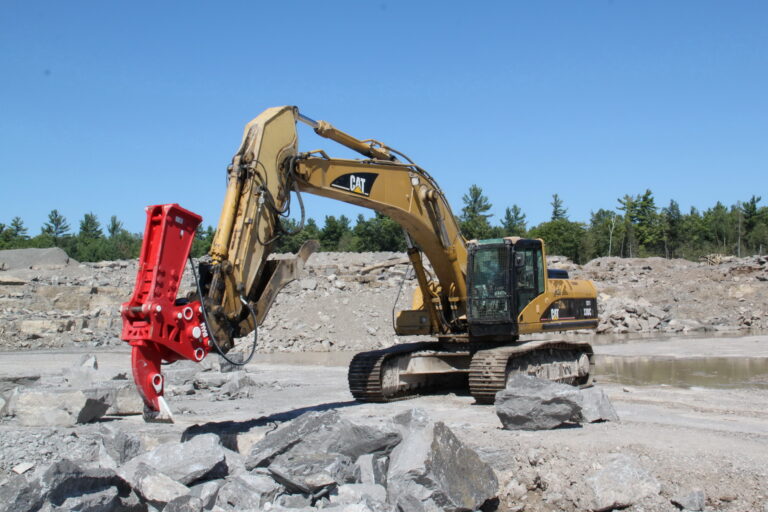

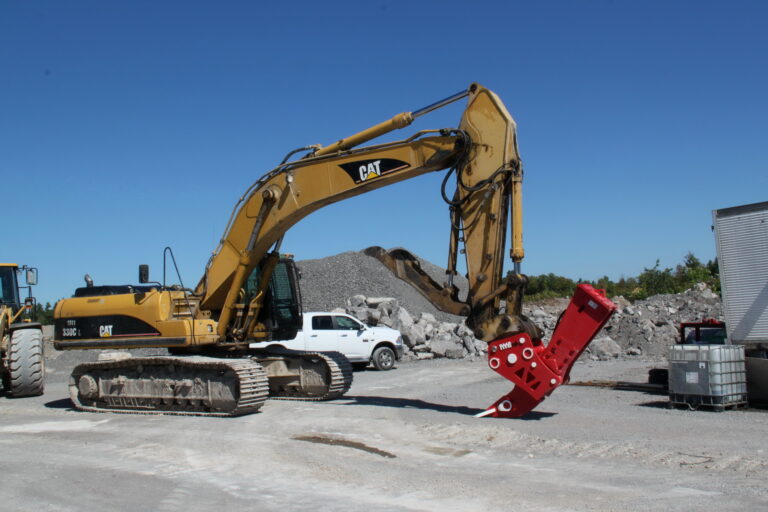

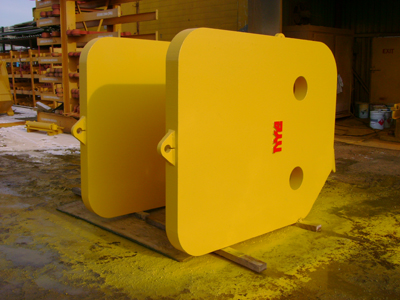

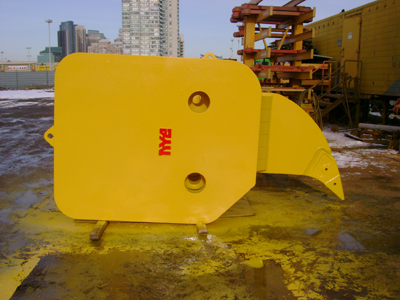

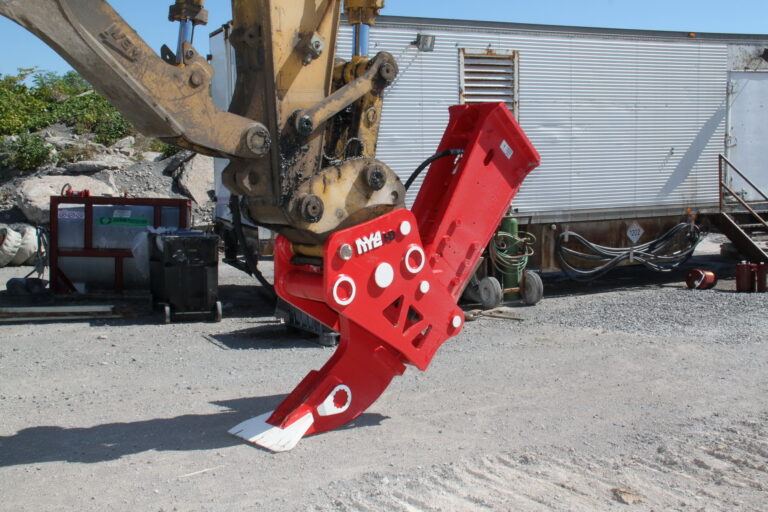

RRW “WARHEAD” Trenching Ripper
Nye’s new RRW Multi-Tooth Trenching Ripper solves the problem of ripping the sides and corners of trenches when working in hard rock, coral and shale…
Specifications
| Model | Carrier Size | Thickness of Shank (t) | Approx. Tooth Tip Radius (r) | Tooth Make and Model |
|---|---|---|---|---|
| 09RP1 | EX09 | 1.25" | 1030 mm | HL25 |
| 12RP1 | EX12 | 2.0" | 1110 mm | 25R12 |
| 15RP1 | EX15 | 2.5" | 1120 mm | 25R12 |
| 20RP1 | EX29 | 2.5" | 1140 mm | 25R12 |
| 25RP1 | EX25 | 3.0" | 1320 mm | 35R15 |
| 30RP1 | EX30 | 3.5" | 1310 mm | 35R15 |
| 40RP1 | EX40 | 4.0" | 1340 mm | 35R15 |
| 70RP1 | EX70 | 4.0" QT100 | 1830 mm | 4T5501 |
- Specifications subject to change
- Units of Measure: kg [lb] and mm [in]
