RRW “WARHEAD” Trenching Ripper

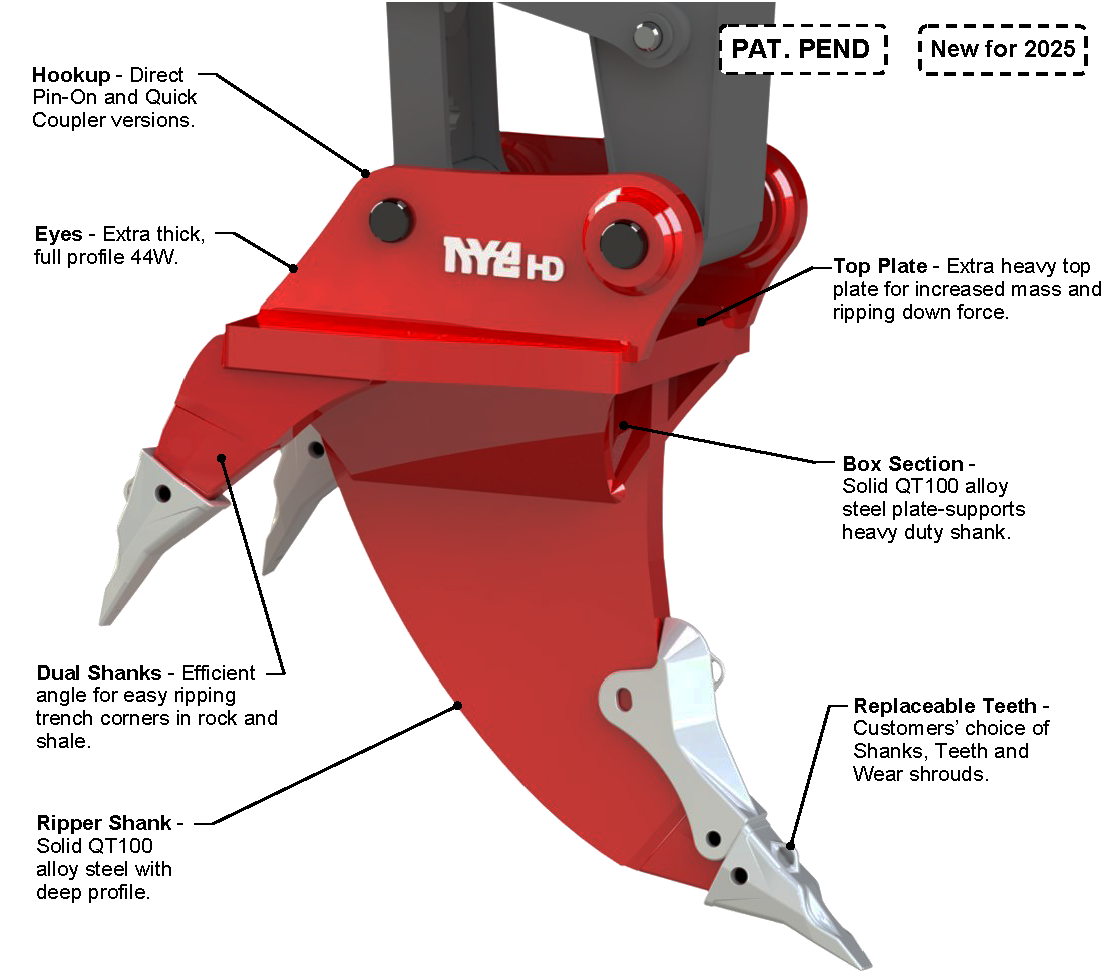

Nye’s new RRW Multi-Tooth Trenching Ripper solves the problem of ripping the sides and corners of trenches when working in hard rock, coral and shale. The angled side fangs easily rip trench walls, and help maintain the required excavation width, right to the bottom.
The side fangs are mounted on the rear of the ripper where they do not interfere with bulk ripping, and their short length maximizes ripping forces for the most severe conditions.
Like all Nye rippers, the RRW is built with a heavy solid steel frame. The extra weight of this heavy plate design is added to the excavator’s own hydraulic downforce for extra penetration on tough ripping jobs.
All Nye rippers are easy to install, safe, silent to operate and available in Quick Coupler and Pin Grabber compatible versions.
Download Spec Sheet
Features
- Designed by request for hard rock trenching where difficult side-ripping is required.
- Extra heavy construction for increased downforce.
- Customer’s choice of teeth and optional wear shrouds.
- Customer’s choice of tip radius and fang spacing.
- Super strong construction for pounding and ripping under extreme conditions.
Specifications
| Carrier [x1000lbs] | Model | Tip Radius mm [in] (R) | Weight kg [lb] |
|---|---|---|---|
| 26 - 38 t [57 - 84] | RRW350 | 1,320 [52] | 1,035 [2,280] |
| 35 - 50 t [77 - 110] | RRW450 | 1,340 [53] | 1,272 [2,800] |
| 48 - 60 t [106 - 132] | RRW600 | 1,520 [60] | 1,435 [3,155] |
| 59 - 90 t [130 - 198] | RRW850 | 1,830 [72] | 2,190 [4,820] |
| 89 - 125 t [196 - 275] | RRW1250 | 1,830 [72] | 2,385 [5,250] |
| 150 - 200 t [330 - 436] | RRW2000 | 1,830 [72] | 3,010 [6,620] |
- Specifications subject to change
- Units of Measure: kg [lb] and mm [in]
