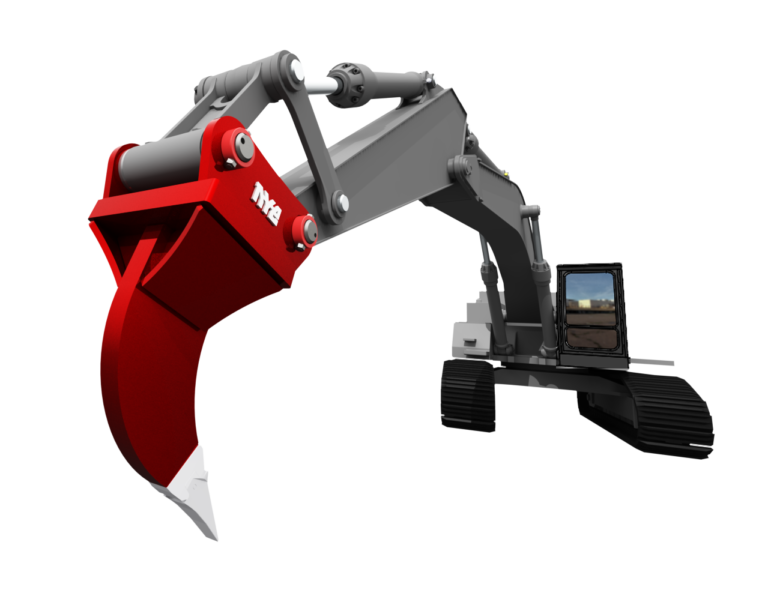

RRP Rock Ripper
Nye has likely built more custom rippers for different machines than any other attachment manufacturer. Our extra heavy, virtually unbreakable rippers are available with various shank lengths, and tooth configurations, with ripping geometry optimized for frost, rock and shale. The RRP Rock Ripper has a shorter shank designed to increase ripping force.
Download Spec Sheet

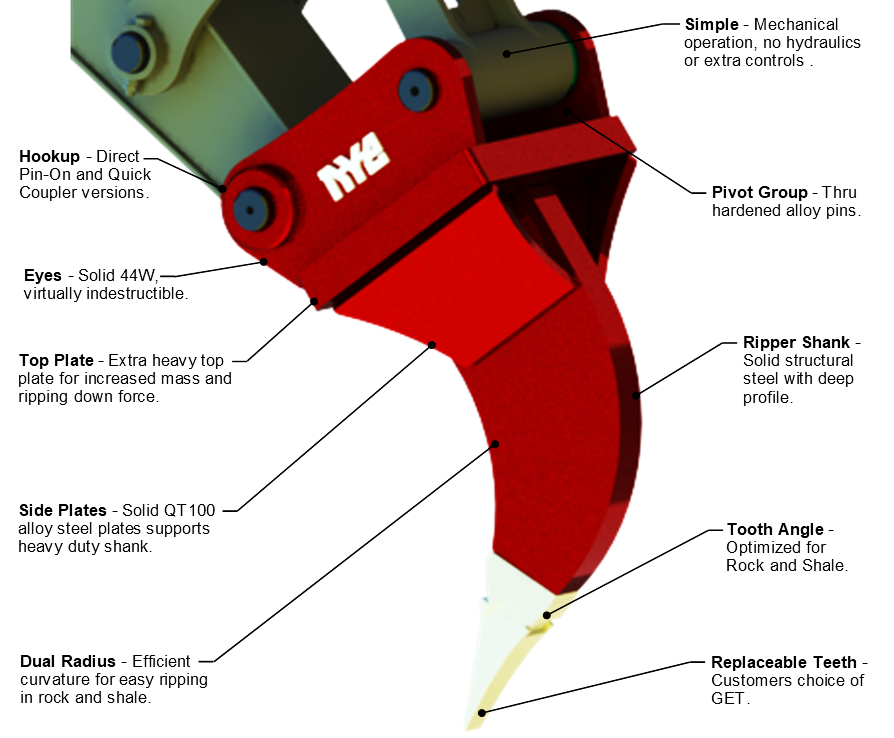

Features
- Designed and built to handle severe frost and shale.
- Extra heavy top plate for increased ripping down force.
- Customer’s choice of tooth and wear shrouds.
- Customer’s choice of shank length.
- Extremely tough and robust construction!
Specifications
| Carrier | Model | Pin to Point (R) mm [in] | Thickness of Shank (T) mm [in] | Weight kg [lb] |
|---|---|---|---|---|
| 13 - 17 t | RRP150 | 1,120 [44] | 64 [2.5] | 485 [1,070] |
| 16 - 24 t | RRP200 | 1,140 [45] | 64 [2.5] | 535 [1,180] |
| 22 - 28 t | RRP250 | 1,320 [52] | 76 [3] | 803 [1,770] |
| 26 - 38 t | RRP300 | 1,320 [52] | 89 [3.5] | 950 [2,080] |
| 35 - 50 t | RRP400 | 1,340 [53] | 102 [4] | 1,150 [2,535] |
| 59 - 90 t | RRP700 | 1,830 [72] | 102 [4] | 2,068 [4,560] |
- Specifications subject to change
- Units of Measure: kg [lb] and mm [in]
